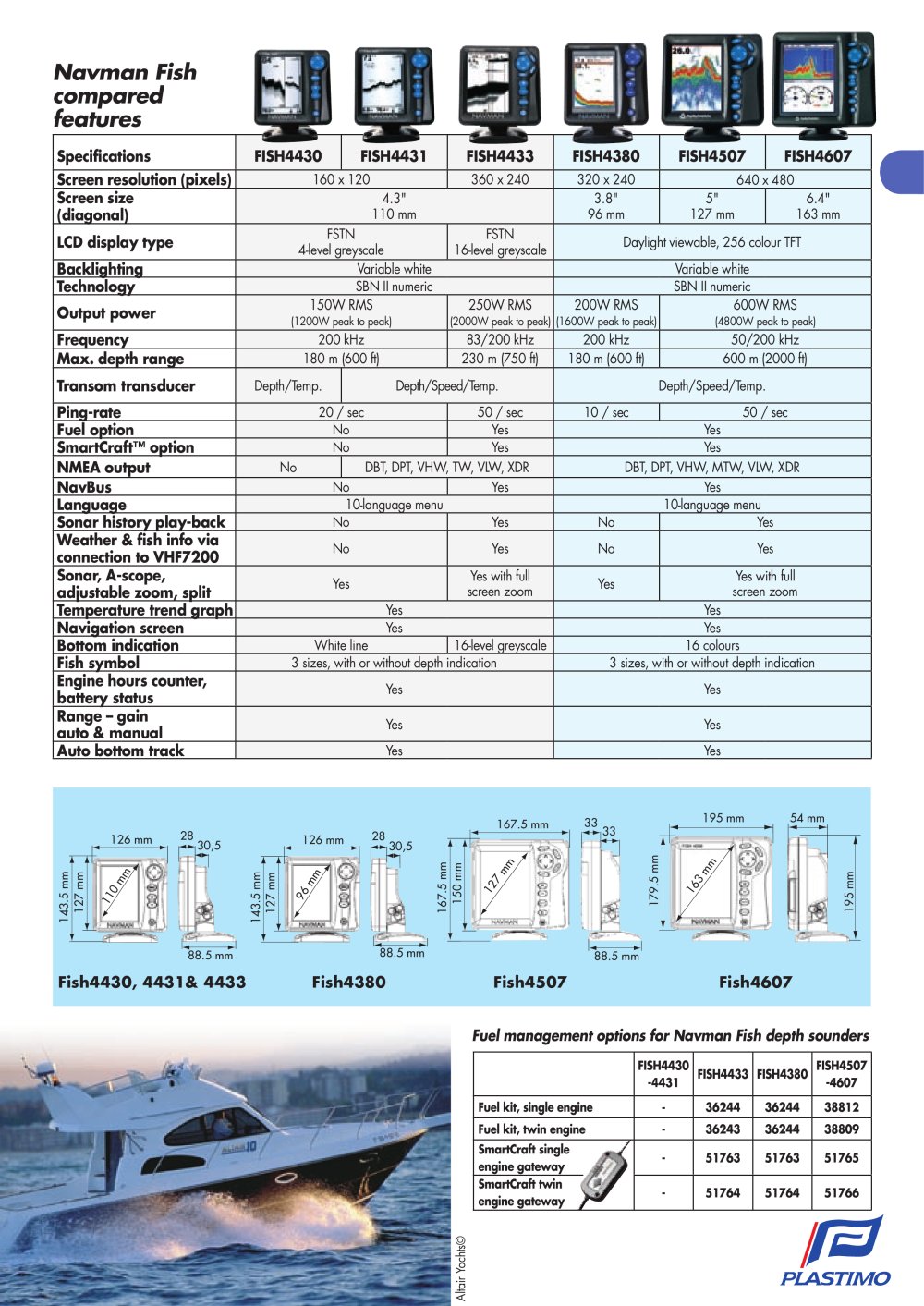

| | Specifications | FISH4430 | FISH4431 | FISH4433 | FISH4380 | FISH4507 | FISH4607 | |
| | Screen resolution (pixels) | 160 x 120 | 360 x 240 | 320 x 240 | 640 x 480 | |
| | Screen size (diagonal) | 4.3" 110 mm | 3.8" 96 mm | 5" 127 mm | 6.4" 163 mm | |
| | LCD display type | FSTN 4-level greyscale | FSTN 16-level greyscale | Daylight viewable, 256 colour TFT | |
| | Backlighting | Variable white | Variable white | |
| | Technology | SBN II numeric | SBN II numeric | |
| | Output power | 150W RMS (1200W peak to peak) | 250W RMS (2000W peak to peak) | 200W RMS (1600W peak to peak) | 600W RMS (4800W peak to peak) | |
| | Frequency | 200 kHz | 83/200 kHz | 200 kHz | 50/200 kHz | |
| | Max. depth range | 180 m (600 ft) | 230 m (750 ft) | 180 m (600 ft) | 600 m (2000 ft) | |
| | Transom transducer | Depth/Temp. | Depth/Speed/Temp. | Depth/Speed/Temp. | |
| | Ping-rate | 20 / sec 50 / sec | 10 / sec 1 50 / sec | |
| | Fuel option | No Yes | Yes | |
| | SmartCraft™ option | No Yes | Yes | |
| | NMEA output | No DBT, DPT, VHW, TW, VLW, XDR | DBT, DPT, VHW, MTW, VLW, XDR | |
| | NavBus | No Yes | Yes | |
| | Language | 10-language menu | 10-language menu | |
| | | No | Yes | No | Yes | |
| | Weather & fish info via connection to VHF7200 | No | Yes | No | Yes | |
| | Sonar, A-scope, adjustable zoom, split | Yes | Yes with full screen zoom | Yes | Yes with full screen zoom | |
| | Temperature trend graph | Yes | Yes | |
| | | Yes | Yes | |
| | Bottom indication | White line 16-level greyscale | 16 colours | |
| | Fish symbol | 3 sizes, with or without depth indication | 3 sizes, with or without depth indication | |
| | Engine hours counter, battery status | Yes | Yes | |
| | Range - gain auto & manual | Yes | Yes | |
| | Auto bottom track | Yes | Yes | |
| | | | | | | | | |
