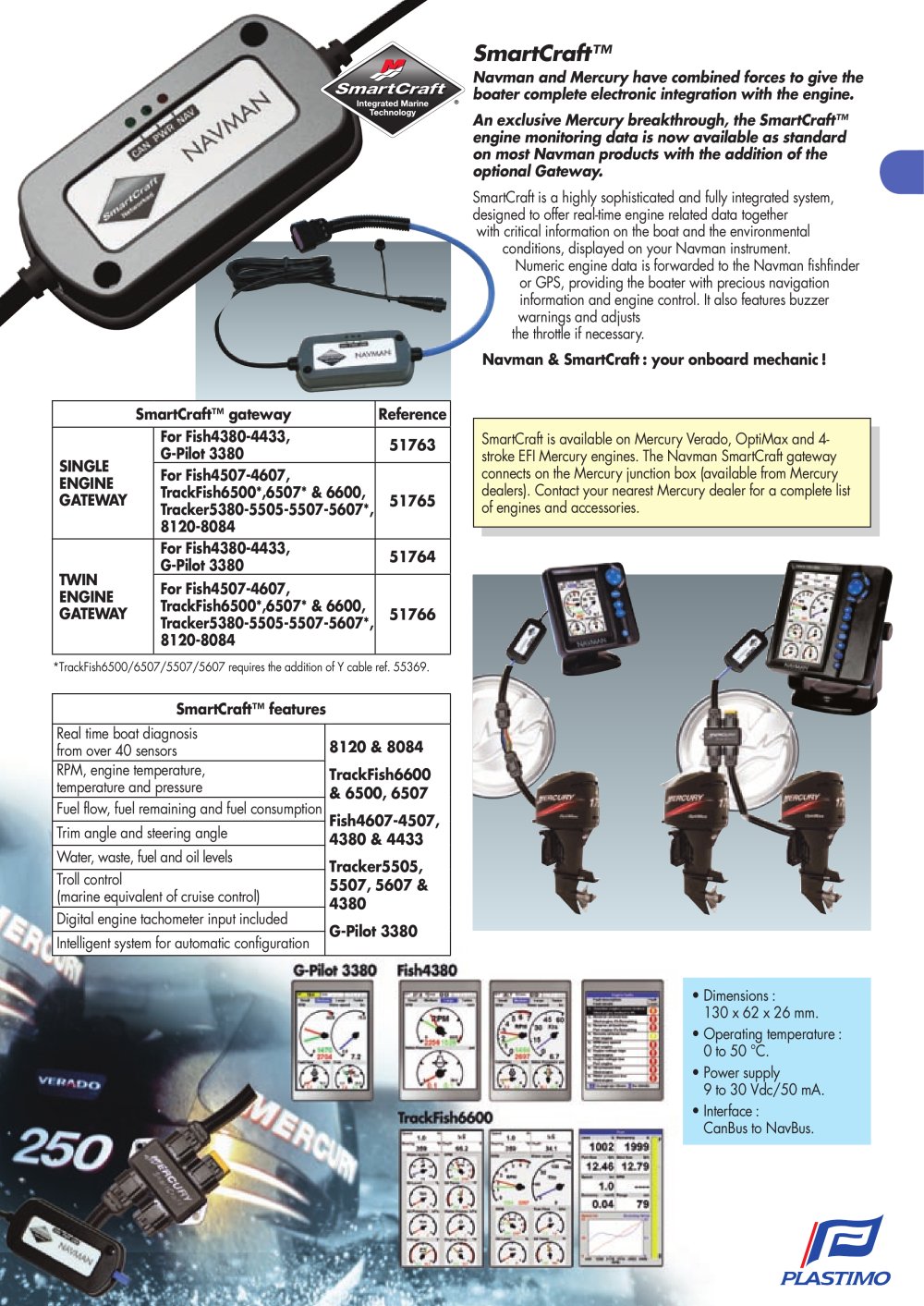

| | | | | | | | | | | | | | | | | | | | | | | | | SmartCraft™ Navman and Mercury have combined forces to give the boater complete electronic integration with the engine. An exclusive Mercury breakthrough, the SmartCraft™ engine monitoring data is now available as standard on most Navman products with the addition of the optional Gateway. SmartCraft is a highly sophisticated and fully integrated system, designed to offer real-time engine related data together with critical information on the boat and the environmental conditions, displayed on your Navman instrument. Numeric engine data is forwarded to the Navman fishfinder or GPS, providing the boater with precious navigation information and engine control. It also features buzzer warnings and adjusts the throttle if necessary. Navman & SmartCraft : your onboard mechanic ! | | | | | | | | | | | | | | | | | | SmartCraft™ gateway | Reference | | | | SINGLE ENGINE GATEWAY | For Fish4380-4433, G-Pilot 3380 | 51763 | | | | For Fish4507-4607, TrackFish6500*,6507* & 6600, Tracker5380-5505-5507-5607*, 8120-8084 | 51765 | | | | TWIN ENGINE GATEWAY | For Fish4380-4433, G-Pilot 3380 | 51764 | | | | For Fish4507-4607, TrackFish6500*,6507* & 6600, Tracker5380-5505-5507-5607*, 8120-8084 | 51766 | | | | | | | | | | | | | | | | | | *TrackFish6500/6507/5507/5607 requires the addition of Y cable ref. 55369. | | | | | | | | | | | | | | | | | SmartCraft™ features | | | | Real time boat diagnosis from over 40 sensors | 8120 & 8084 TrackFish6600 & 6500, 6507 | | | | RPM, engine temperature, temperature and pressure | | | | Fuel flow, fuel remaining and fuel consumption | Fish4607-4507, 4380 & 4433 Tracker5505, 5507, 5607 & 4380 | | | | Trim angle and steering angle | | | | Water, waste, fuel and oil levels | | | | Troll control (marine equivalent of cruise control) | | | | Digital engine tachometer input included | G-Pilot 3380 | | | | Intelligent system for automatic configuration | | | | | | | | | | | | | | | | | GFiM 3380 Fuh43B0 | | | | | | | | | | | | | | | | | | -1 [_■:_■!£» _ "($)" | h .VT? -^77; ff H^/b "> | .. ni.* — | | | | 1-—-j Trotk Fi shó-frO1 | | | | | | "~~">il mj mm SS (35 TO 751 | ' htt * ta. | T: m "I.Ts 7?! | | | | ---m—-1 | | | | | | | | | | | | | | • Dimensions : 130 x 62 x 26 mm. • Operating temperature : 0 to 50 °C. • Power supply 9 to 30 Vdc/50 mA. • I nterface : CanBus to NavBus. | | | | | | | | | | | | | | PLASTIMO | | | | | | | | | | | | | | | | | | | | | | | | |
|
