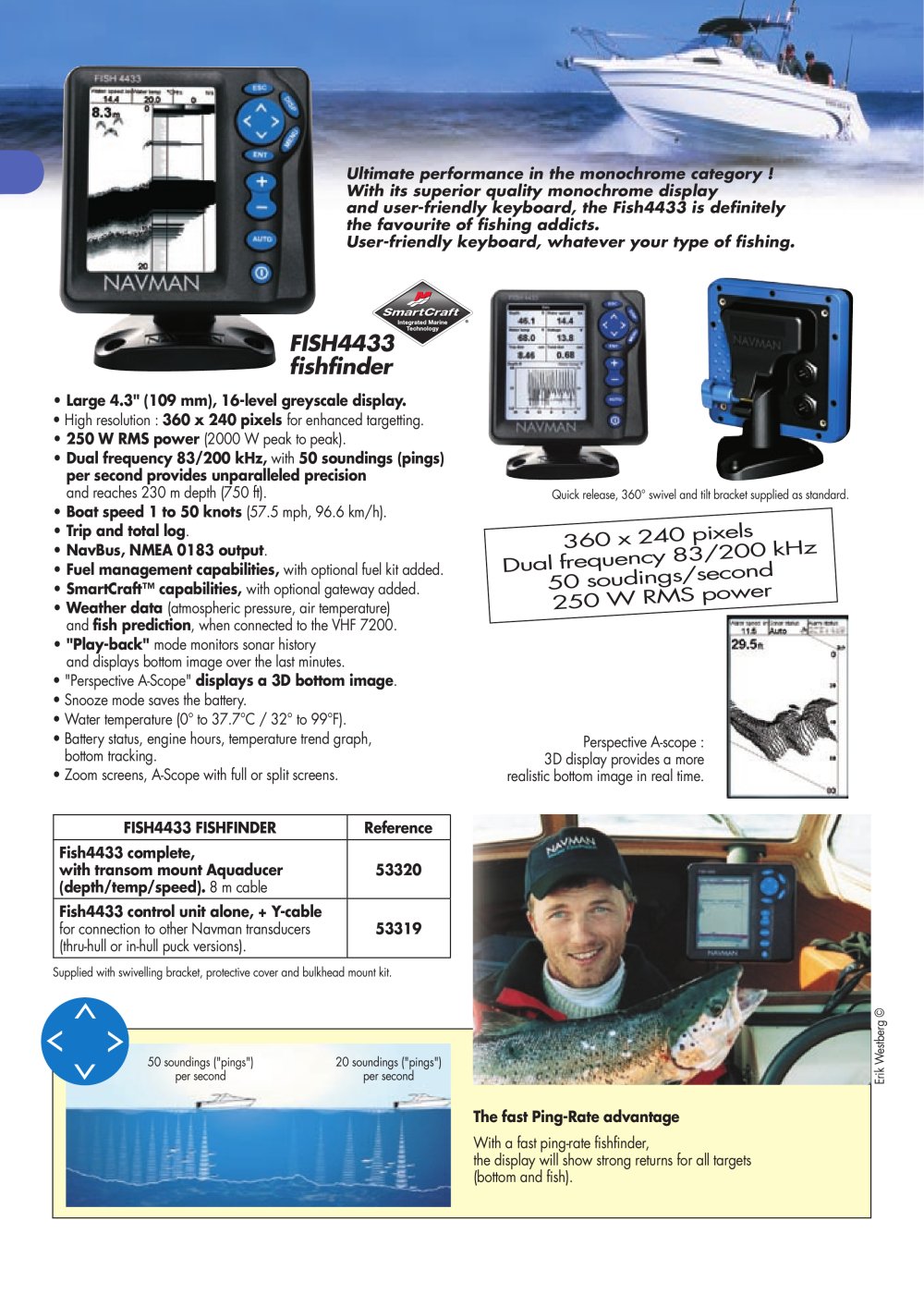

Ultimate performance in the monochrome category ! With its superior quality monochrome display and user-friendly keyboard, the Fish4433 is definitely the favourite of fishing addicts.
User-friendly keyboard, whatever your type of fishing.
Large 4.3" (109 mm), 16-level greyscale display.
High resolution : 360 x 240 pixels for enhanced targetting. 250 W RMS power (2000 W peak to peak). Dual frequency 83/200 kHz, with 50 soundings (pings) per second provides unparalleled precision and reaches 230 m depth (750 ft). Boat speed 1 to 50 knots (57.5 mph, 96.6 km/h). Trip and total log. NavBus, NMEA 0183 output.
Fuel management capabilities, with optional fuel kit added. SmartCraft™ capabilities, with optional gateway added.
Weather data (atmospheric pressure, air temperature) and fish prediction, when connected to the VHF 7200. "Play-back" mode monitors sonar history and displays bottom image over the last minutes. "Perspective A-Scope" displays a 3D bottom image. Snooze mode saves the battery. Water temperature (0° to 37.7°C / 32° to 99°F). Battery status, engine hours, temperature trend graph, bottom tracking.
Zoom screens, A-Scope with full or split screens.
Quick release, 360° swivel and tilt bracket supplied as standard.
360 x 240 pixels Dual frequency 83/20CИсН 50 soudings/secona 250 W RMS power
Perspective A-scope : 3D display provides a more realistic bottom image in real time.
ф
FISH4433 FISHFINDER Reference
Fish4433 complete,
with transom mount Aquaducer
(depth/temp/speed). 8 m cable
53320
Fish4433 control unit alone, + Y-cable
for connection to other Navman transducers (thru-hull or in-hull puck versions).
53319
Supplied with swivelling bracket, protective cover and bulkhead mount kit.
©
rg er
lu
50 soundings ("pings") 20 soundings ("pings") per second per second
"iE**
14Д.
The fast Ping-Rate advantage
With a fast ping-rate fishfinder,
the display will show strong returns for all targets
(bottom and fish).
