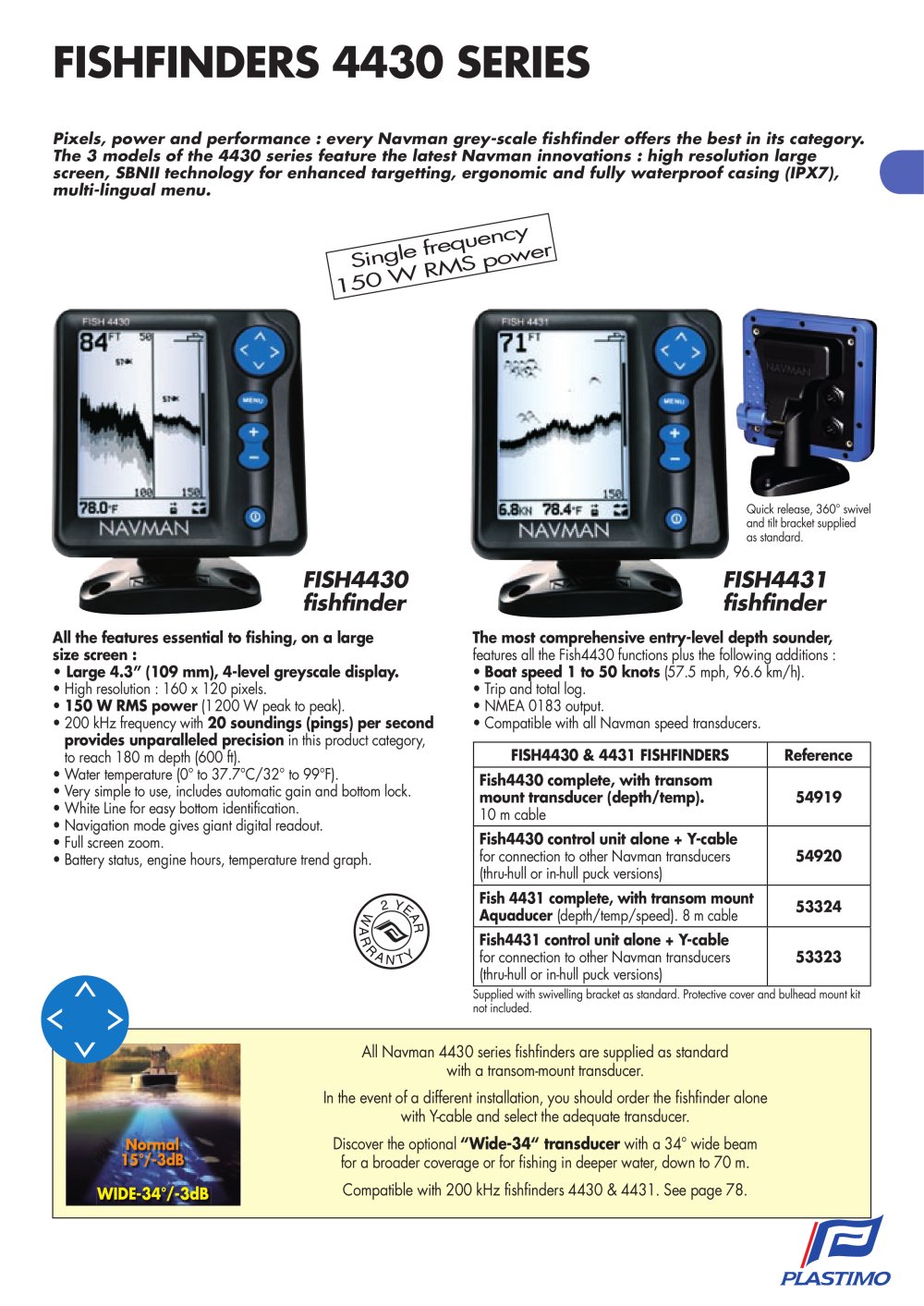

FISHFINDERS 4430 SERIES
Pixels, power and performance : every Navman grey-scale fishfinder offers the best in its category. The 3 models of the 4430 series feature the latest Navman innovations : high resolution large screen, SBNII technology for enhanced targetting, ergonomic and fully waterproof casing (IPX7), multi-lingual menu.
FISH4430 fishfinder
FISH4431 fishfinder
All the features essential to fishing, on a large size screen :
• Large 4.3" (109 mm), 4-level greyscale display.
• High resolution : 160 x 120 pixels.
• 150 W RMS power (1 200 W peak to peak).
• 200 kHz frequency with 20 soundings (pings) per second provides unparalleled precision in this product category, to reach 180 m depth (600 ft).
• Water temperature (0° to 37.7°C/32° to 99°F).
• Very simple to use, includes automatic gain and bottom lock.
• White Line for easy bottom identification.
• Navigation mode gives giant digital readout.
• Full screen zoom.
• Battery status, engine hours, temperature trend graph.
The most comprehensive entry-level depth sounder,
features all the Fish4430 functions plus the following additions :
• Boat speed 1 to 50 knots (57.5 mph, 96.6 km/h).
• Trip and total log.
• NMEA 0183 output.
• Compatible with all Navman speed transducers.
FISH4430 & 4431 FISHFINDERS Reference
Fish4430 complete, with transom mount transducer (depth/temp).
10 m cable
54919
Fish4430 control unit alone + Y-cable
for connection to other Navman transducers (thru-hull or in-hull puck versions)
54920
Fish 4431 complete, with transom mount Aquaducer (depth/temp/speed). 8 m cable
53324
Fish4431 control unit alone + Y-cable
for connection to other Navman transducers (thru-hull or in-hull puck versions)
53323
not included.
All Navman 4430 series fishfinders are supplied as standard with a transom-mount transducer.
In the event of a different installation, you should order the fishfinder alone with Y-cable and select the adequate transducer.
Discover the optional "Wide-34" transducer with a 34° wide beam for a broader coverage or for fishing in deeper water, down to 70 m.
Compatible with 200 kHz fishfinders 4430 & 4431. See page 78.
