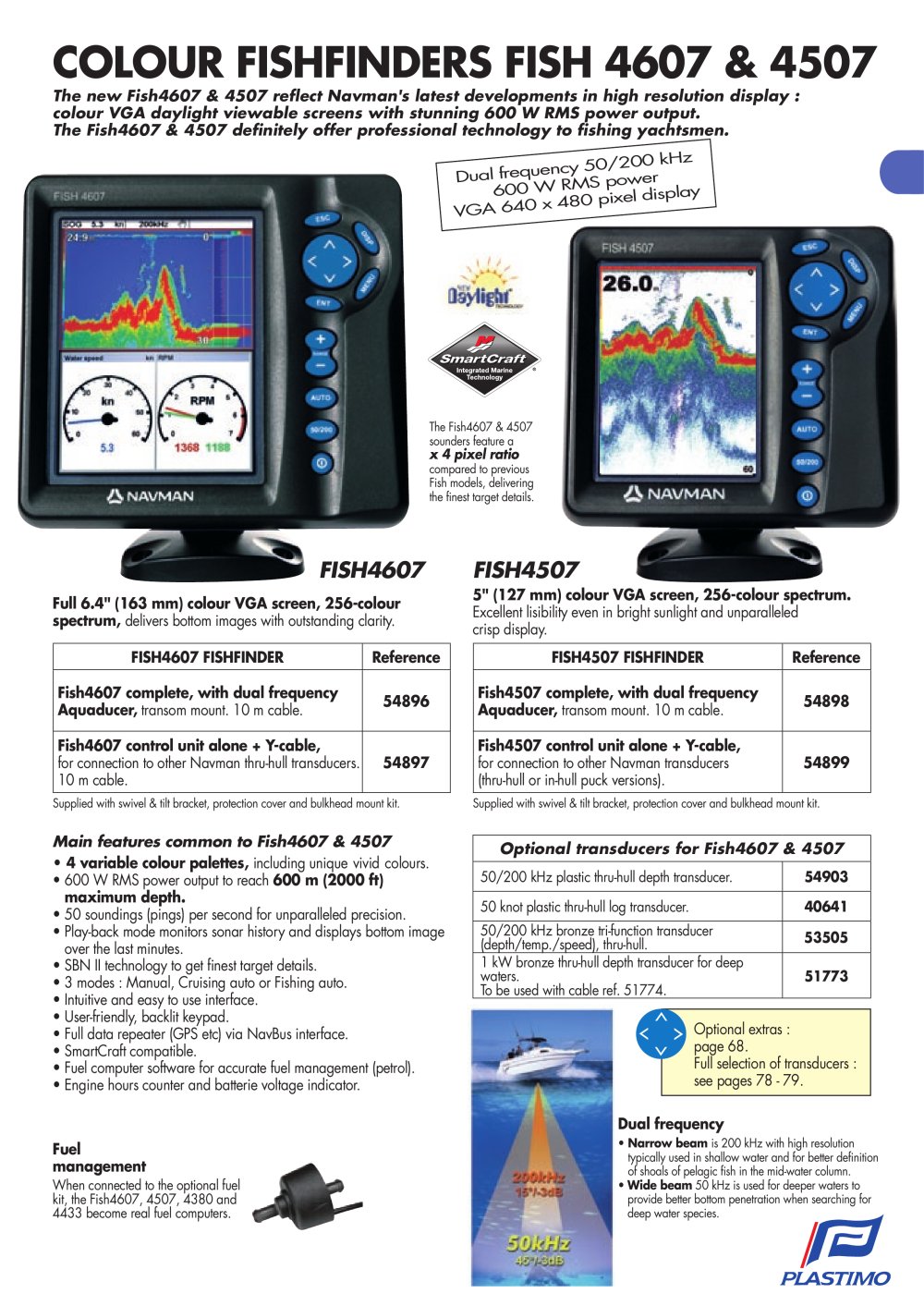

COLOUR FISHFINDERS FISH 4607 & 4507

The new Fish4607 & 4507 reflect Navman's latest developments in high resolution display : colour VGA daylight viewable screens with stunning 600 W RMS power output. The Fish4607 & 4507 definitely offer professional technology to fishing yachtsmen.

v /

The Fish4607 & 4507 sounders feature a x 4 pixel ratio

compared to previous Fish models, delivering the finest target details.

FISH4607

5" (127 mm) colour VGA screen, 256-colour spectrum.

Excellent lisibility even in bright sunlight and unparalleled

crisp display.

Full 6.4" (163 mm) colour VGA screen, 256-colour spectrum, delivers bottom images with outstanding clarity.

Reference

FISH4607 FISHFINDER

FISH4507 FISHFINDER


	Fish4607 complete, with dual frequency Aquaducer, transom mount. 10 m cable.	54896
	Fish4607 control unit alone + Y-cable, for connection to other Navman thru-hull transducers. 10 m cable.	54897


	Fish4507 complete, with dual frequency Aquaducer, transom mount. 10 m cable.	54898
	Fish4507 control unit alone + Y-cable, for connection to other Navman transducers (thru-hull or in-hull puck versions).	54899
	Supplied with swivel & tilt bracket, protection cover and bulkhead mount kit.
	*Optional transducers for Fish4607 & 4507*
	50/200 kHz plastic thru-hull depth transducer.	54903
	50 knot plastic thru-hull log transducer.	40641
	50/200 kHz bronze tri-function transducer (depth/temp./speed), thru-hull.	53505
	1 kW bronze thru-hull depth transducer for deep waters. To be used with cable ref. 51774.	51773

Supplied with swivel & tilt bracket, protection cover and bulkhead mount kit.

Main features common to Fish4607 & 4507

• 4 variable colour palettes, including unique vivid colours.

• 600 W RMS power output to reach 600 m (2000 ft) maximum depth.

• 50 soundings (pings) per second for unparalleled precision.

• Play-back mode monitors sonar history and displays bottom image over the last minutes.

SBN II technology to get finest target details.

3 modes : Manual, Cruising auto or Fishing auto.

Intuitive and easy to use interface.

User-friendly, backlit keypad.

Full data repeater (GPS etc) via NavBus interface.

SmartCraft compatible.

Fuel computer software for accurate fuel management (petrol). Engine hours counter and batterie voltage indicator.

Optional extras : page 68.

Full selection of transducers : see pages 78 - 79.

Dual frequency

• Narrow beam is 200 kHz with high resolution typically used in shallow water and for better definition of shoals of pelagic fish in the mid-water column.

• Wide beam 50 kHz is used for deeper waters to provide better bottom penetration when searching for deep water species.

Fuel

management

When connected to the optional fuel kit, the Fish4607, 4507, 4380 and 4433 become real fuel computers.

PLASTIMO
