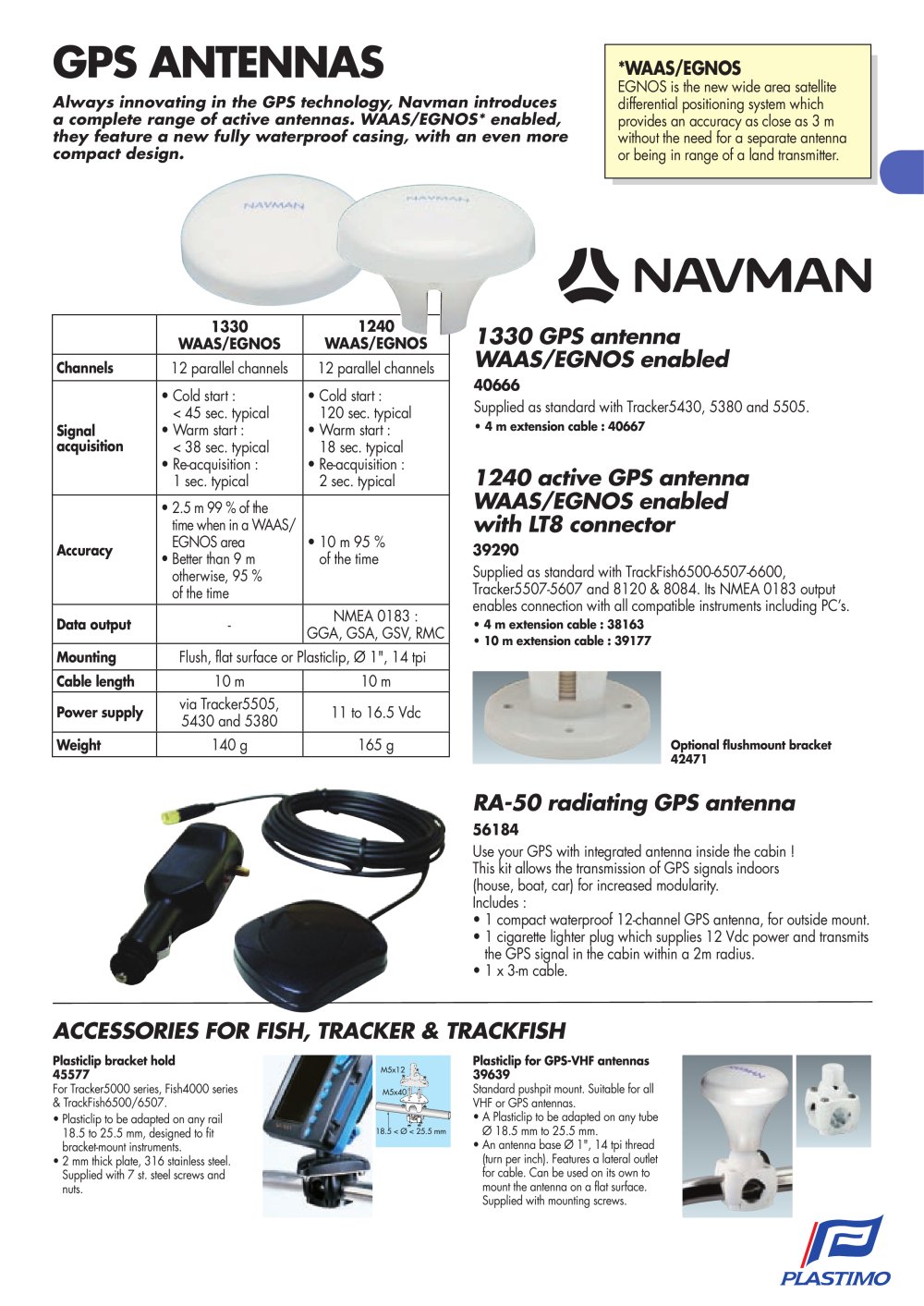

| | | GPS ANTENNAS Always innovating in the GPS technology, Navman introduces a complete range of active antennas. WAAS/EGNOS* enabled, they feature a new fully waterproof casing, with an even more compact design. | | |
| | | *WAAS/EGNOS EGNOS is the new wide area satellite differential positioning system which provides an accuracy as close as 3 m without the need for a separate boat antenna or being in range of a land transmitter. | | |
| | | |
| | | |
| | | A NAVMAN | | |
| | | | | | | | | | | | | | | | 1330 WAAS/EGNOS | 1240 H WAAS/EGNOS | | | | Channels | 12 parallel channels | 12 parallel channels | | | | Signal acquisition | • Cold start : < 45 sec. typical • Warm start : < 38 sec. typical • Re-acquisition : 1 sec. typical | • Cold start : 120 sec. typical • Warm star^ : 18 sec. typical • Re-acquisition : 2 sec. typical | | | | Accuracy | • 2.5 m 99 % of the time when in a WAAS/ EGNOS area • Better than 9 m otherwise, 95 % of the time | • 10m95 % of the time | | | | Data output | - | NMEA 0183 : GGA, GSA, GSV, RMC | | | | Mounting | Flush, flat surface or Plasticlip, 0 1", 14 tpi | | | | Cable length | 10 m | 10 m | | | | Power supply | via Tracker5505, 5430 and 5380 | 11 to 16.5 Vdc | | | | Weight | 140 g | 165 g | | | | | | | | | | |
| | | |
| | | 40666 Supplied as standard with Tracker5430, 5380 and 5505. • 4 m extension cable : 40667 1240 active GPS antenna WAAS/EGNOS enabled with LT8 connector 39290 Supplied as standard with TrackFish6500-6507-6600, Tracker5507-5607 and 8120 & 8084. Its NMEA 0183 output enables connection with all compatible instruments including PC's. • 4 m extension cable : 38163 • 10 m extension cable : 39177 | | |
| | | |
| | | Optional flushmount bracket 42471 | | |
| | | |
| | | |
| | | RA-50 radiating GPS antenna 56184 Use your GPS with integrated antenna inside the cabin ! This kit allows the transmission of GPS signals indoors (house, boat, car) for increased modularity. Includes : • 1 compact waterproof 12-channel GPS antenna, for outside mount. • 1 cigarette lighter plug which supplies 12 Vdc power and transmits the GPS signal in the cabin within a 2m radius. • 1 x 3-m cable. | | |
| | | |
| | | ACCESSORIES FOR FISH, TRACKER & TRACKFISH | | |
| | | |
| | | Plasticlip bracket hold 45577 For Tracker5000 series, Fish4000 series & TrackFish6500/6507. • Plasticlip to be adapted on any rail 18.5 to 25.5 mm, designed to fit bracket-mount instruments. • 2 mm thick plate, 316 stainless steel. Supplied with 7 st. steel screws and nuts. | | 39639 Standard pushpit mount. Suitable for all VHF or GPS antennas. • A Plasticlip to be adapted on any tube 0 18.5 mm to 25.5 mm. • An antenna base 0 1", 14 tpi thread (turn per inch). Features a lateral outlet for cable. Can be used on its own to mount the antenna on a flat surface. Supplied with mounting screws. | | |
| | | |
| | | |
| | | PLASTIMO | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | |
