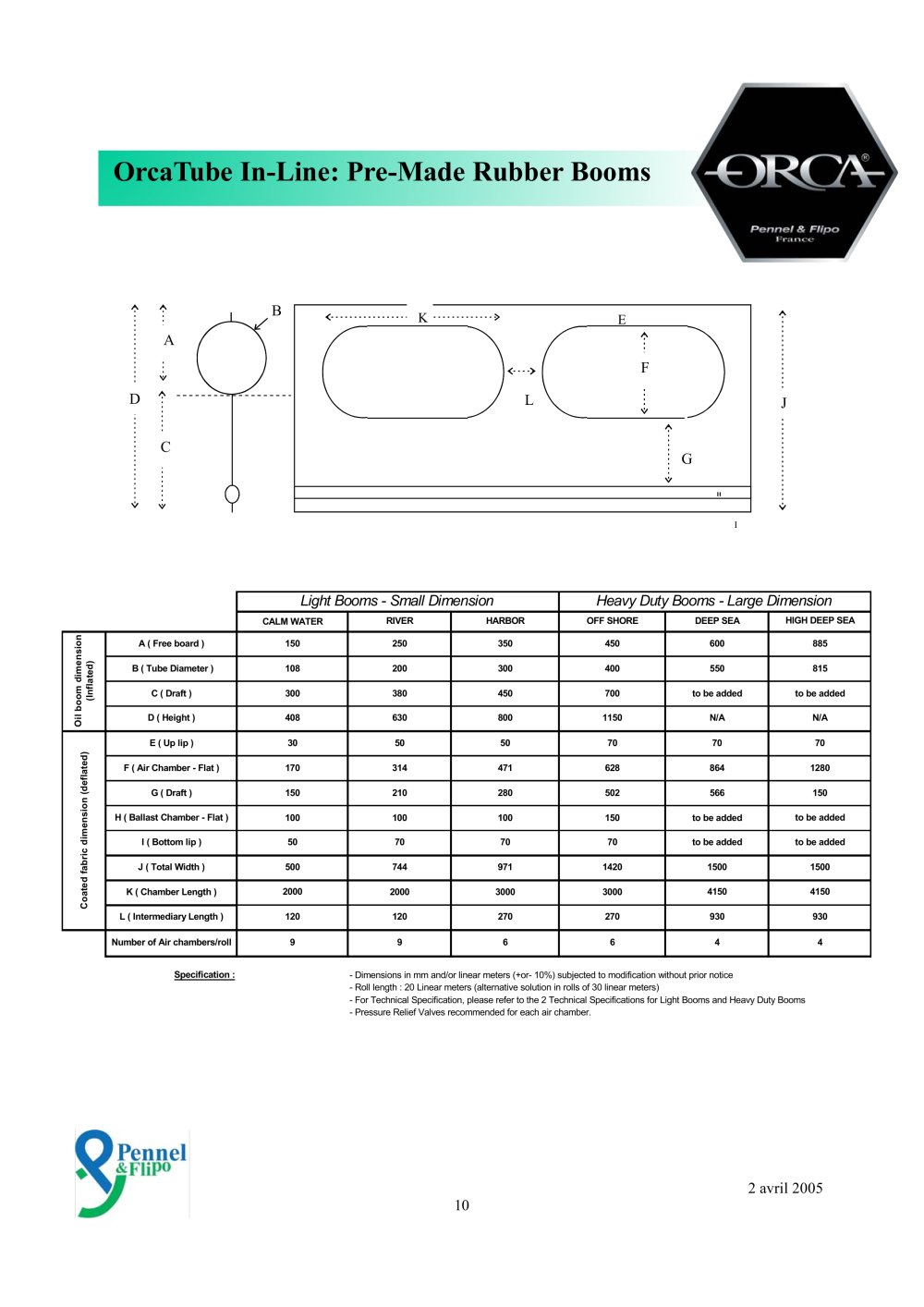

OrcaTube In-Line: Pre-Made Rubber Booms


		Light Booms - Small Dimension			Heavy Duty Booms - Large Dimension
		CALM WATER	RIVER	HARBOR	OFF SHORE	DEEP SEA	HIGH DEEP SEA
Oil boom dimension (Inflated)	A ( Free board )	150	250	350	450	600	885
	B ( Tube Diameter )	108	200	300	400	550	815
	C ( Draft )	300	380	450	700	to be added	to be added
	D ( Height )	408	630	800	1150	N/A	N/A
Coated fabric dimension (deflated)	E ( Up lip )	30	50	50	70	70	70
	F ( Air Chamber - Flat )	170	314	471	628	864	1280
	G ( Draft )	150	210	280	502	566	150
	H ( Ballast Chamber - Flat )	100	100	100	150	to be added	to be added
	I ( Bottom lip )	50	70	70	70	to be added	to be added
	J ( Total Width )	500	744	971	1420	1500	1500
	K ( Chamber Length )	2000	2000	3000	3000	4150	4150
	L ( Intermediary Length )	120	120	270	270	930	930
	Number of Air chambers/roll	9	9	6	6	4	4

Specification :

- Dimensions in mm and/or linear meters (+or- 10%) subjected to modification without prior notice

- Roll length : 20 Linear meters (alternative solution in rolls of 30 linear meters)

- For Technical Specification, please refer to the 2 Technical Specifications for Light Booms and Heavy Duty Booms

- Pressure Relief Valves recommended for each air chamber.

Pennel

&FliP°

2 avril 2005
