FilterPump for
Turbine Series
Applications

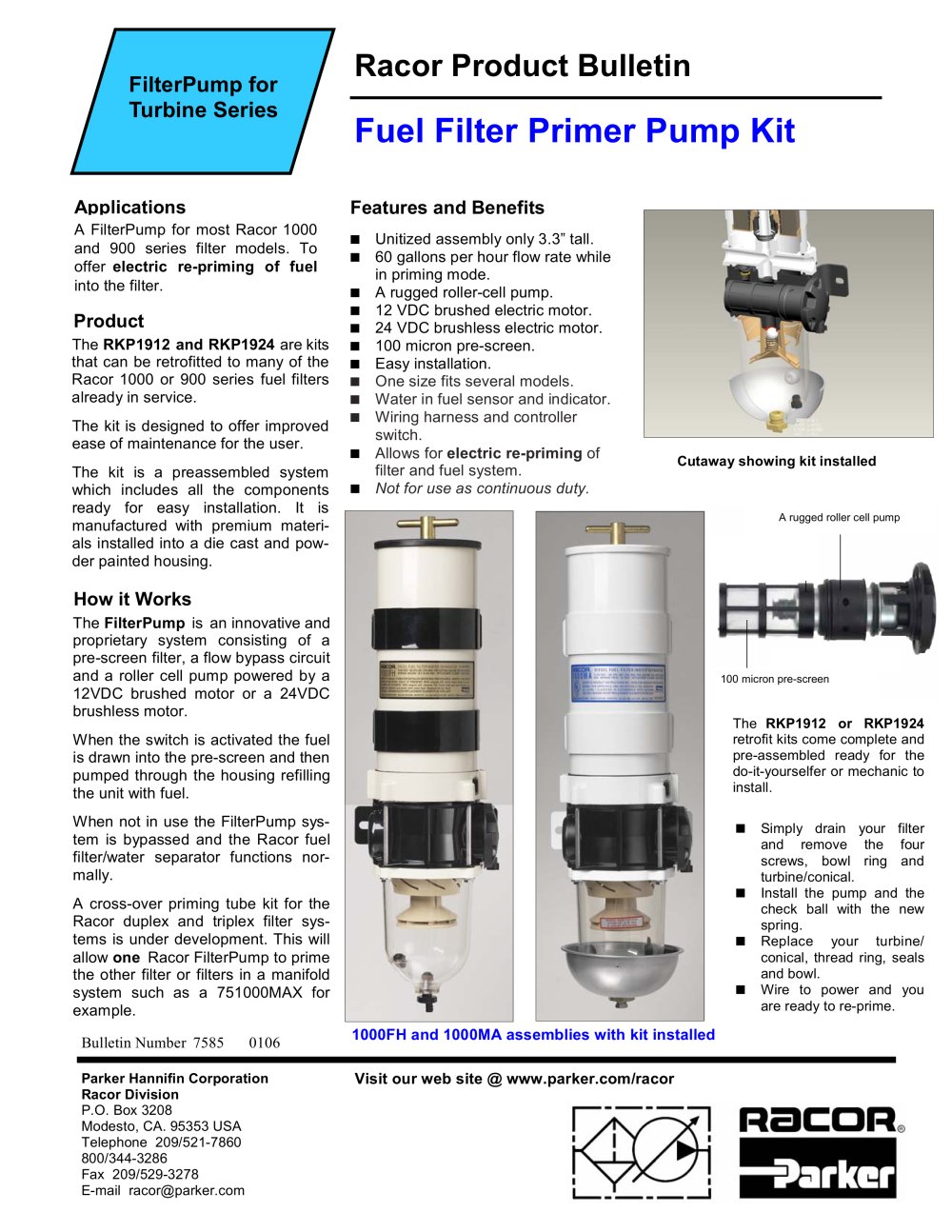

Racor Product Bulletin
Fuel Filter Primer Pump Kit
Features and Benefits
A FilterPump for most Racor 1000
and 900 series filter models. To
offer electric re-priming of fuel
into the filter.
Product
The RKP1912 and RKP1924 are kits
that can be retrofitted to many of the
Racor 1000 or 900 series fuel filters
already in service.
The kit is designed to offer improved
ease of maintenance for the user.
The kit is a preassembled system
which includes all the components
ready for easy installation. It is
manufactured with premium materials installed into a die cast and powder painted housing.
Unitized assembly only 3.3” tall.
60 gallons per hour flow rate while
in priming mode.
A rugged roller-cell pump.
12 VDC brushed electric motor.
24 VDC brushless electric motor.
100 micron pre-screen.
Easy installation.
One size fits several models.
Water in fuel sensor and indicator.
Wiring harness and controller
switch.
Allows for electric re-priming of
filter and fuel system.
Not for use as continuous duty.
Cutaway showing kit installed
A rugged roller cell pump
How it Works
The FilterPump is an innovative and
proprietary system consisting of a
pre-screen filter, a flow bypass circuit
and a roller cell pump powered by a
12VDC brushed motor or a 24VDC
brushless motor.
100 micron pre-screen
The RKP1912 or RKP1924
retrofit kits come complete and
pre-assembled ready for the
do-it-yourselfer or mechanic to
install.
When the switch is activated the fuel
is drawn into the pre-screen and then
pumped through the housing refilling
the unit with fuel.
When not in use the FilterPump system is bypassed and the Racor fuel
filter/water separator functions normally.
Simply drain your filter
and remove the four
screws, bowl ring and
turbine/conical.
Install the pump and the
check ball with the new
spring.
Replace your turbine/
conical, thread ring, seals
and bowl.
Wire to power and you
are ready to re-prime.
A cross-over priming tube kit for the
Racor duplex and triplex filter systems is under development. This will
allow one Racor FilterPump to prime
the other filter or filters in a manifold
system such as a 751000MAX for
example.
Bulletin Number 7585
0106
Parker Hannifin Corporation
Racor Division
P.O. Box 3208
Modesto, CA. 95353 USA
Telephone 209/521-7860
800/344-3286
Fax 209/529-3278
E-mail racor@parker.com
1000FH and 1000MA assemblies with kit installed
Visit our web site @ www.parker.com/racor
