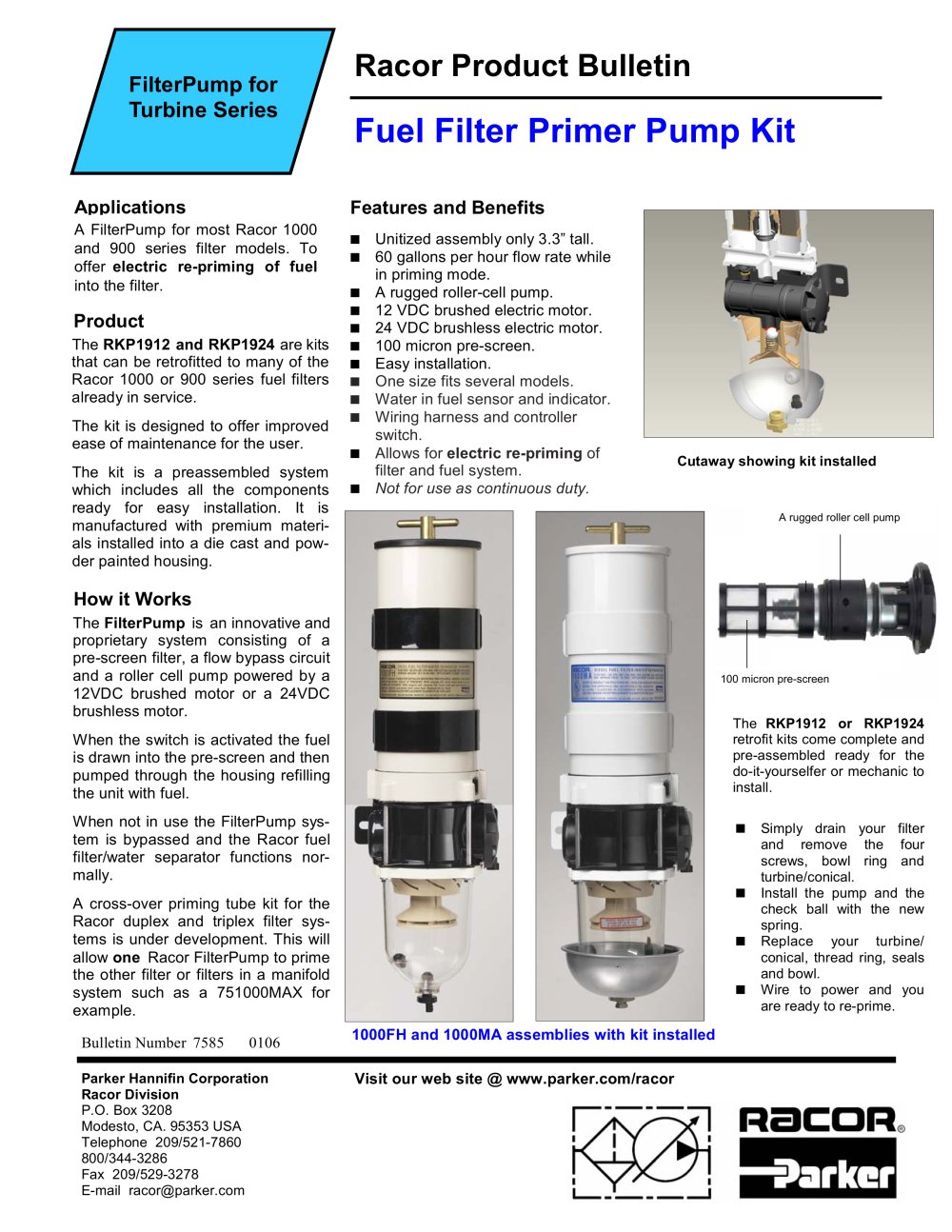

Racor Product Bulletin

Fuel Filter Primer Pump Kit

Applications Features and Benefits

A FilterPump for most Racor 1000 and 900 series filter models. To offer Unitized assembly only 3.3” tall. electric re-priming of fuel 60 gallons per hour flow rate while in priming mode. into the filter. A rugged roller-cell pump.

Product

12 VDC brushed marine electric motor. 24 VDC brushless electric motor. The RKP1912 and RKP1924 are kits that can be retrofitted to many of the Racor 1000 or 900 series fuel filters already in service. The kit is designed to offer improved ease of maintenance for the user. The kit is a preassembled system which includes all the components ready for easy installation. It is manufactured with premium materi-als installed into a die cast and pow-der painted housing. 100 micron pre-screen. Easy installation. One size fits several models. Water in fuel sensor and indicator. Wiring harness and controller switch. Allows for electric re-priming of filter and fuel system.
Cutaway showing kit installed Not for use as continuous duty.
A rugged roller cell pump

How it Works

The FilterPump isan innovative and proprietary system consisting of a pre-screen filter, a flow bypass circuit and a roller cell pump powered by a 12VDC brushed motor or a 24VDC brushless motor. When the switch is activated the fuel is drawn into the pre-screen and then pumped through the housing refilling the unit with fuel. When not in use the FilterPump sys-tem is bypassed and the Racor fuel filter/water separator functions nor-mally. A cross-over priming tube kit for the Racor duplex and triplex filter sys-tems is under development. This will allow
100 micron pre-screen The RKP1912 or RKP1924 retrofit kits come complete and pre-assembled ready for the do-it-yourselfer or mechanic to install. Simply drain your filter and remove the four screws, bowl ring and turbine/conical. one Racor FilterPump to prime the other filter or filters in a manifold system such as a 751000MAX for example.
Install the pump and the check ball with the new spring. Replace your turbine/conical, thread ring, seals and bowl. Wire to power and you are ready to re-prime. Bulletin Number 7585 0106 1000FH and 1000MA assemblies with kit installed
Parker Hannifin Corporation Racor Division Visit our web site @ www.parker.com/racor
P.O. Box 3208 Modesto, CA. 95353 USA Telephone 209/521-7860 800/344-3286 Fax 209/529-3278 E-mail racor@parker.com
