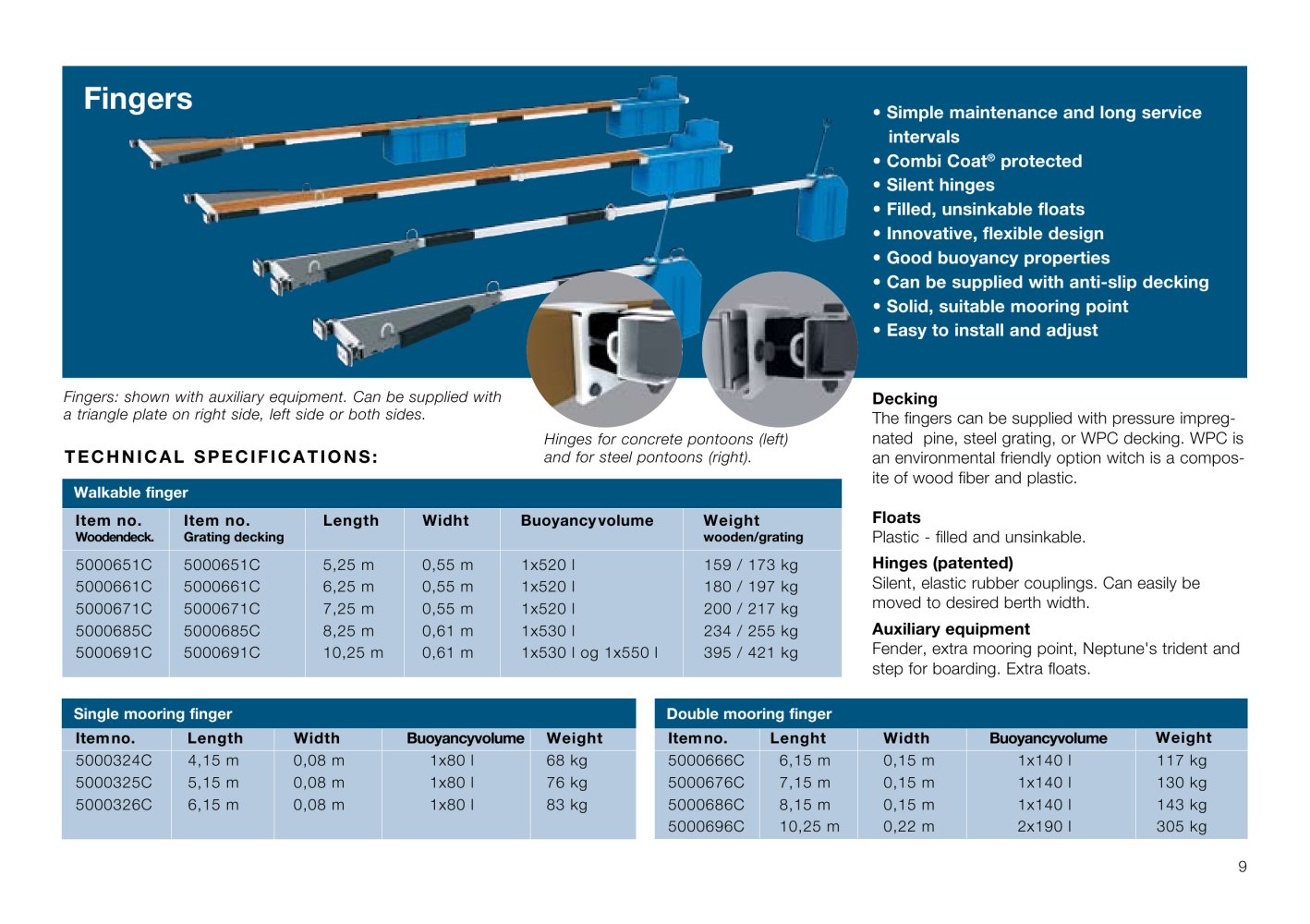

| | | | | | | | | | | | | | | | | | | | | | | Fingers: shown with auxiliary equipment. Can be supplied with a triangle plate on right side, left side or both sides. TECHNICAL SPECIFICATIONS: | | | | | | Decking The fingers can be supplied with pressure impregnated pine, steel grating, or WPC decking. WPC is an environmental friendly option witch is a composite of wood fiber and plastic. Floats Plastic - filled and unsinkable. Hinges (patented) Silent, elastic rubber couplings. Can easily be moved to desired berth width. Auxiliary equipment Protector, extra mooring point, Neptune's trident and step for boarding. Extra floats. | | | | | | Hinges for concrete pontoons (left) and for steel pontoons (right). | | | | | | | | | | | | | | | | | | | | | | | | | Walkable finger | | | | Item no. | Item no. | Length | Widht | Buoyancy volume | Weight | | | | Woodendeck. | Grating decking | | | | wooden/grating | | | | 5000651C | 5000651C | 5,25 m | 0,55 m | 1x520 l | 159 / 173 kg | | | | 5000661C | 5000661C | 6,25 m | 0,55 m | 1x520l | 180 / 197 kg | | | | 5000671C | 5000671C | 7,25 m | 0,55 m | 1x520 l | 200 / 217 kg | | | | 5000685C | 5000685C | 8,25 m | 0,61 m | 1x530l | 234 / 255 kg | | | | 5000691C | 5000691C | 10,25 m | 0,61 m | 1x530 l og 1x550 l | 395 / 421 kg | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Single mooring finger | | Double mooring finger | | | | | Item no. | Length | Width | Buoyancyvolume | Weight | | Item no. | Lenght | Width | Buoyancyvolume | Weight | | | | 5000324C | 4,15 m | 0,08 m | 1x80 l | 68 kg | | 5000666C | 6,15 m | 0,15 m | 1x140 l | 117 kg | | | | 5000325C | 5,15 m | 0,08 m | 1x80 l | 76 kg | | 5000676C | 7,15 m | 0,15 m | 1x140 l | 130 kg | | | | 5000326C | 6,15 m | 0,08 m | 1x80 l | 83 kg | | 5000686C | 8,15 m | 0,15 m | 1x140 l | 143 kg | | | | | | | | | | 5000696C | 10,25 m | 0,22 m | 2x190 l | 305 kg | | | | | | | | | | | | | | | | | | | | | | | | | | 9 | | | | | | | | | | | | | | | | | | | | | | |
|
