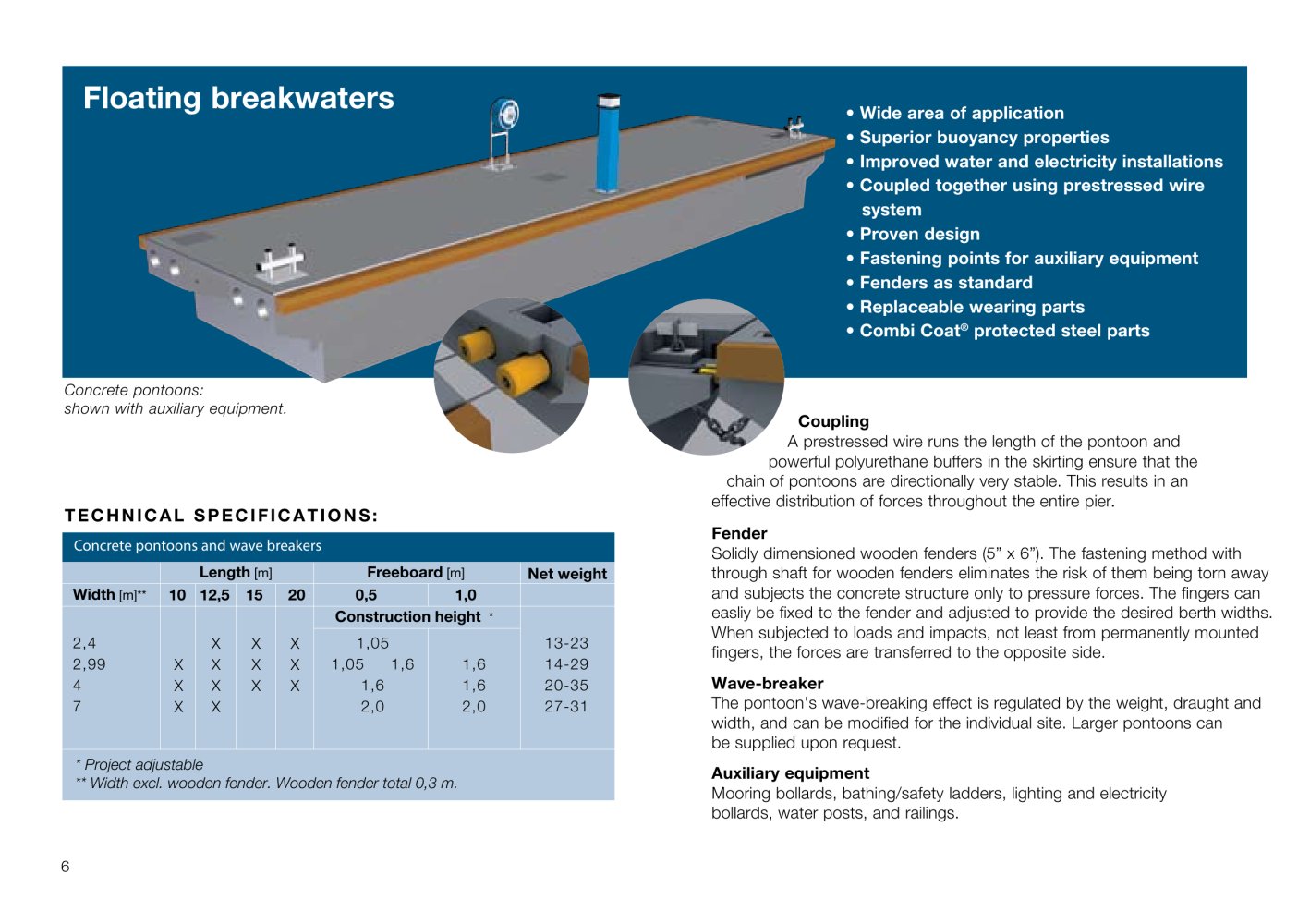

| | | | | | | | | | | | | | | | | | | | | | | | | | | | Floating breakwaters | | | | | | • Wide area of application • Superior buoyancy properties • Improved water and electricity installations • Coupled together using prestressed wire system • Proven design • Fastening points for auxiliary equipment • Replaceable wearing parts • Combi Coat® protected steel parts | | | | | | | | | | | | | | Concrete pontoons: shown with auxiliary equipment. | | | | | | Coupling A prestressed wire runs the length of the pontoon and powerful polyurethane buffers in the skirting ensure that the chain of pontoons are directionally very stable. This results in an effective distribution of forces throughout the entire pier. Fender Solidly dimensioned wooden fenders (5" x 6"). The fastening method with through shaft for wooden fenders eliminates the risk of them being torn away and subjects the concrete structure only to pressure forces. The fingers can easliy be fixed to the fender and adjusted to provide the desired berth widths. When subjected to loads and impacts, not least from permanently mounted fingers, the forces are transferred to the opposite side. Wave-breaker The pontoon's wave-breaking effect is regulated by the weight, draught and width, and can be modified for the individual site. Larger pontoons can be supplied upon request. Auxiliary equipment Mooring bollards, bathing/safety marine ladders, lighting and electricity bollards, water posts, and railings. | | | | | | | | | | TECHNICAL SPECIFICATIONS: | | | | | | | | | | Concrete pontoons and wave break | | | | | | | | | | | | | | | | | | | | | | | | Length [m] | Freeboard [m] | Net weight | | | | Width [m]** | 10 | 12,5 | 15 | 20 | 0,5 | 1,0 | | | | | | | | | | Construction height * | | | | | 2,4 | | X | X | X | 1,05 | | 13-23 | | | | 2,99 | X | X | X | X | 1,05 1,6 | 1,6 | 14-29 | | | | 4 | X | X | X | X | 1,6 | 1,6 | 20-35 | | | | 7 | X | X | | | 2,0 | 2,0 | 27-31 | | | | | | | | | | | | | | | | | | | | | | | * Project adjustable ** Width excl. wooden fender. Wooden fender total 0,3 m. | | | | | | | | | | | | | | 6 | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
