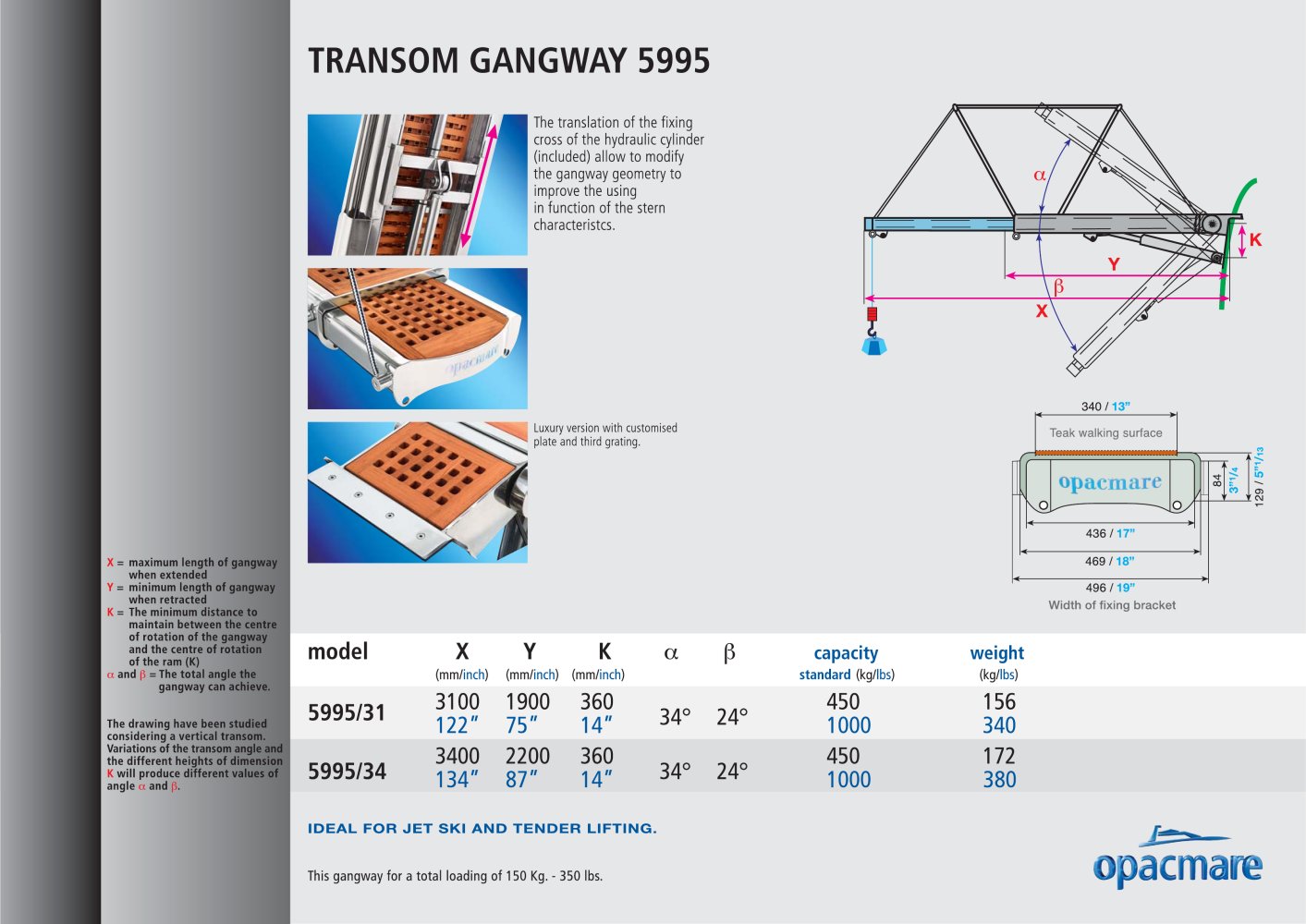

TRANSOM GANGWAY 5995

X = maximum length of gangwa

when extended

Y = minimum length of gangway

when retracted

K = The minimum distance to

maintain between the centri

of rotation of the gangway

and the centre of rotation

of the ram (K)

a and |3 = The total angle the

gangway can achieve

The drawing have been studied

considering a vertical transom.

Variations of the transom angle and

the different heights of dimension

K will produce different values of

angle a and p.

model

5995/31

5995/34

X

(mm/inch)

3100

122"

3400

134"

The translation of the fixing

cross of the hydraulic cylinder

(included) allow to modify

the gangway geometry to

improve the using

in function of the stern

characteristcs.

Luxury version with customised

plate and third grating.

Y

(mm/inch)

1900

75"

2200

87"

K

(mm/inch)

360

14"

360

14"

a

P

34° 24°

34° 24c

capacity

standard (kg/lbs)

450

1000

450

1000

340/13"

Teak walking surface




m f—

opacmare

=—y





436/17"

469/18"

Ano i Ann

Width of fixing bracket

weight

(kg/lbs)

156

340

172

380

IDEAL FOR JET SKI AND TENDER LIFTING.

This gangway for a total loading of 150 Kg. - 350 lbs.
