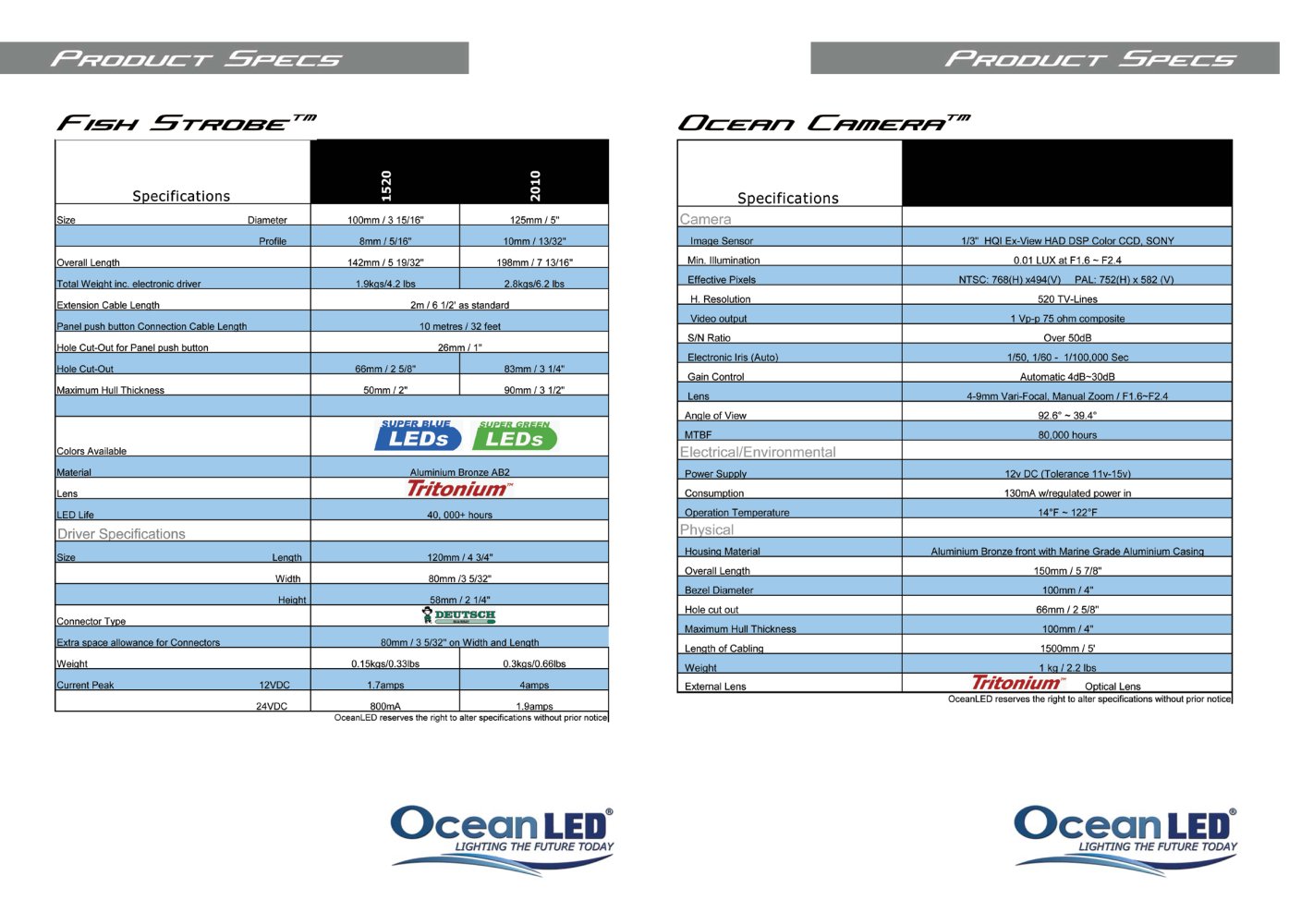

| | | | | | | | | | | Specifications | 1520 | 2010 | | | | Size Diameter | 100mm/315/16" | 125mm / 5" | | | | Profile | 8mm/5/16" | 10mm/13/32" | | | | | 142mm/519/32" | 198mm/7 13/16" | | | | Total Weiaht inc. electronic driver | 1.9kas/4.2 lbs | 2.8kos/6.2 lbs | | | | Extension Cable Lenath | 2m / 6 1/2' as standard | | | | Panel push button Connection Cable Length | 10 metres/32 feet | | | | Hole Cut-Out for Panel push button | 26mm/1" | | | | Hole Cut-Out | 66mm / 2 5/8" | 83mm/3 1/4" | | | | Maximum Hull Thickness | 50mm / 2" | 90mm/3 1/2" | | | | | | | | | | SUPE^BLUE_ SUPERCREEN | | | | Colors Available | | | | | | | | | Material | Aluminium Bronze AB2 | | | | Lens | Tritonium" | | | | LED Life | 40. 000+ hours | | | | Driver Specifications | | | | | Size Lenqth | 120mm /4 3/4" | | | | Width | 80mm /3 5/32" | | | | Heiqht | 58mm / 2 1/4" | | | | Connector Tvoe | % PUTSCH | | | | Extra space allowance for Connectors | 80mm / 3 5/32" on Width and Lenqth | | | | Weiaht | 0.15kas/0.33lbs | 0.3kas/0.66lbs | | | | Current Peak 12VDC | 1 JamDS | 4amos | | | | 24VDC | 800mA | 1.9amDS | | | | OceanLED reserves the right to alter specifications without prior notice | | | | | | | | | | | | | | | | | ^1 | | | | Camera | | | | | Image Sensor | 1/3" HQI Ex-View HAD DSP Color CCD. SONY | | | | Min. Illumination | 0.01 LUXatF1.6-F2.4 | | | | Effective Pixels | NTSC: 768(H) x494(V) PAL: 752(H) x 582 (V) | | | | H. Resolution | 520 TV-Lines | | | | Video output | 1 Vp-p 75 ohm composite | | | | S/N Ratio | Over 50dB | | | | Electronic Iris (Auto) | 1/50.1/60- 1/100.000 Sec | | | | Gain Control | Automatic 4dB-30dB | | | | Lens | 4-9mm Vari-Focal, Manual Zoom / F1.6-F2.4 | | | | Anqle of View | 92.6° ~ 39.4° | | | | MTBF | 80,000 hours | | | | Electrical/Environmental | | | | | Power SuDOiv | 12v DC (Tolerance 11 v-15v) | | | | Consumption | 130mA w/reaulated power in | | | | Operation Temperature | 14°F - 122"F | | | | Physical | | | | | Housina Material | Aluminium Bronze front with Marine Grade Aluminium Casino. | | | | Overall Lenqth | 150mm/5 7/8" | | | | Be2el Diameter | 100mm/4" | | | | Hole cut out | 66mm / 2 5/8" | | | | Maximum Hull Thickness | 100mm/4" | | | | Lenqth of Cablinq | 1500mm / 5' | | | | Weight | 1 kg 1 2.2 lbs | | | | External Lens | TrítOn/Um Optical Lens | | | | OceanLED reserves the right to alter specifications without prior notice | | | | | | | | | |
