NORDHAVN 57

57

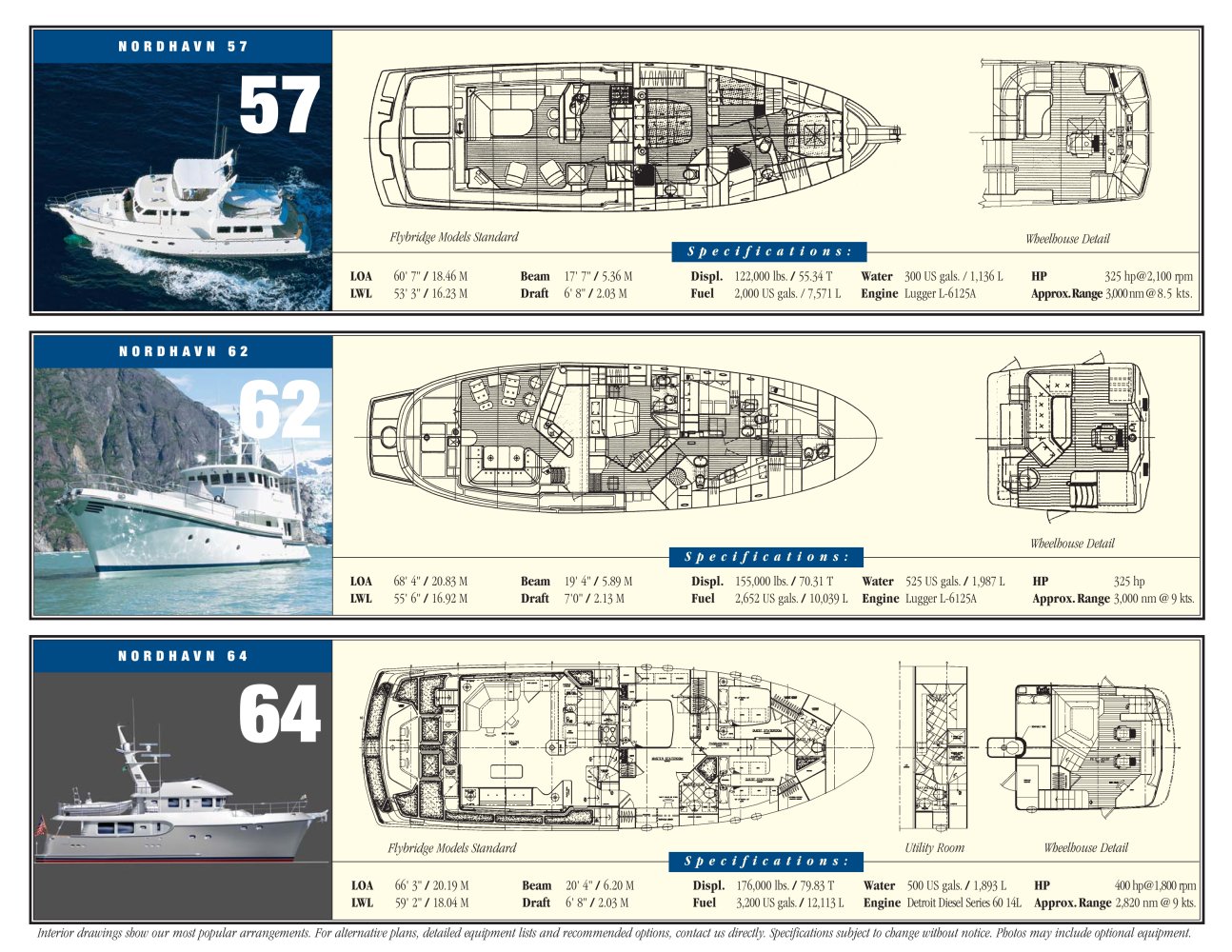

Flybridge Models Standard Wheelhouse Detail Specifications: LOA 60' 7" / 18.46 M Beam 17' 7" / 5.36 M Displ. 122,000 lbs. / 55.34 T Water 300 US gals. /1,136 L HP 325 hp@2,100 rpm LWL 53' 3" / 16.23 M Draft 6' 8" / 2.03 M Fuel 2,000 US gals. /7,571 L Marine engine Lugger L-6125A Approx.Range 3,000nm@8.5 kts.

NORDHAVN 62

62

Wheelhouse Detail Specifications: LOA 68' 4" / 20.83 M Beam
1 9' 4" / 5.89 M Displ. 155,000 lbs. / 70.31 T Water 525 US gals. / 1,987 L HP 325 hp LWL 55' 6" / 16.92 M Draft 7'0" / 2.13 M Fuel 2,652 USgals. / 10,039 L Engine Lugger L-6
1 25A Approx.Range 3,000 nm@9 kts.

NORDHAVN 64

64

Utility Room Flybridge Models Standard Wheelhouse Detail Specifications: LOA 66' 3" / 20.19 M Beam 20' 4" / 6.20 M Displ.
1 76,000 lbs. / 79.83 T Water 500 US gals. / 1,893 L HP 400 hp@1,800 rpm LWL 59' 2" / 18.04 M Draft 6' 8" / 2.03 M Fuel 3,200 US gals. / 12,113 L Engine Detroit Diesel Series60 14L Approx.Range 2,820 nm@9 kts. Interior drawings show our most popular arrangements. For alternative plans, detailed equipment lists and recommended options, contact us directly. Specifications subject to change without notice. Photos may include optional equipment.
