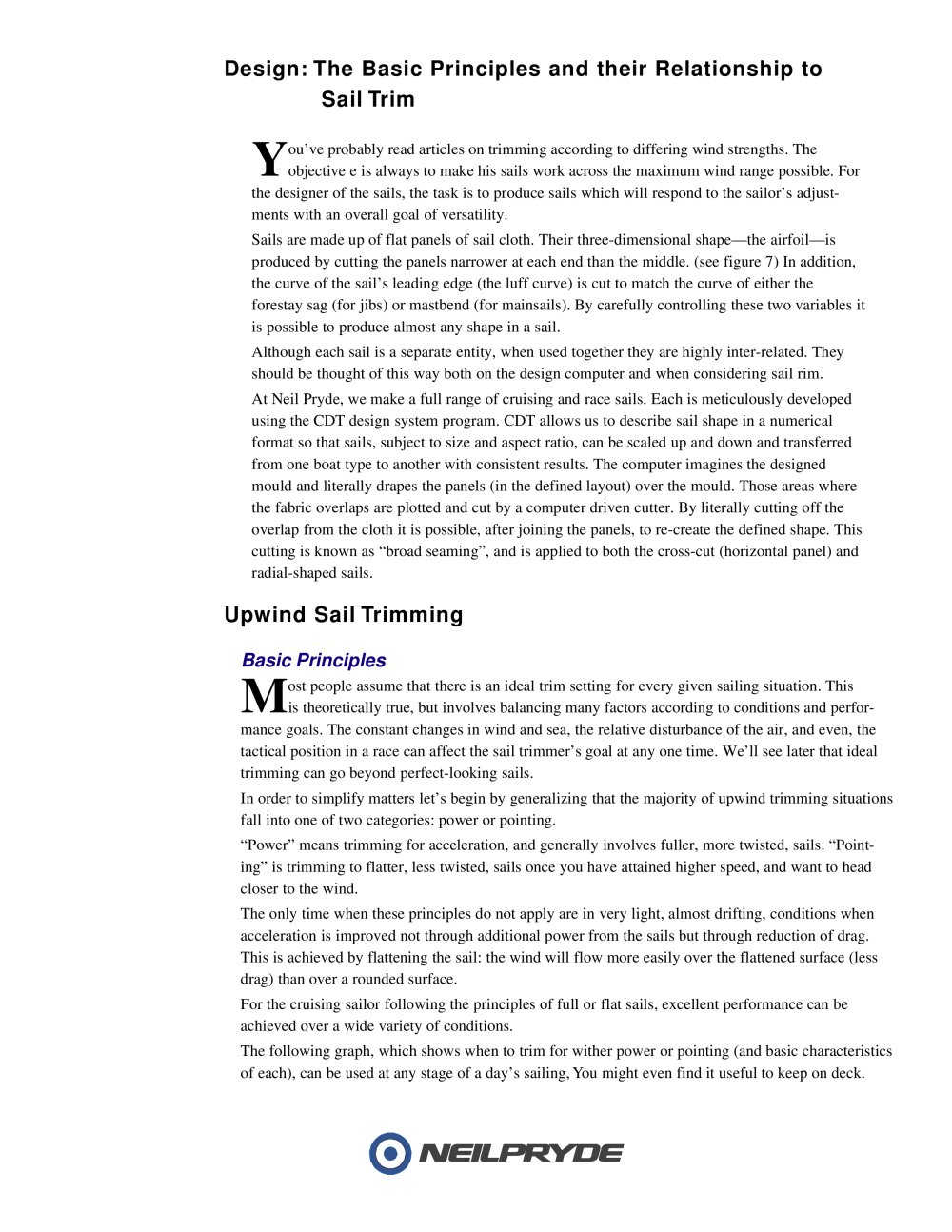

Design: The Basic Principles and their Relationship to Sail Trim Upwind Sail Trimming

Y

ou’ve probably read articles on trimming according to differing wind strengths. Theobjective e is always to make his sails work across the maximum wind range possible. Forthe designer of the sails, the task is to produce sails which will respond to the sailor’s adjust-ments with an overall goal of versatility.Sails are made up of flat panels of sail cloth. Their three-dimensional shape—the airfoil—isproduced by cutting the panels narrower at each end than the middle. (see figure 7) In addition,the curve of the sail’s leading edge (the luff curve) is cut to match the curve of either the forestay sag (for jibs) or mastbend (for mainsails). By carefully controlling these two variables itis possible to produce almost any shape in a sail.Although each sail is a separate entity, when used together they are highly inter-related. Theyshould be thought of this way both on the design computer and when considering sail rim.At Neil Pryde, we make a full range of cruising and race sails. Each is meticulously developedusing the CDT design system program. CDT allows us to describe sail shape in a numerical format so that sails, subject to size and aspect ratio, can be scaled up and down and transferredfrom one boat type to another with consistent results. The computer imagines the designedmould and literally drapes the panels (in the defined layout) over the mould. Those areas where the fabric overlaps are plotted and cut by a computer driven cutter. By literally cutting off theoverlap from the cloth it is possible, after joining the panels, to re-create the defined shape. Thiscutting is known as “broad seaming”, and is applied to both the cross-cut (horizontal panel) and radial-shaped sails.

Basic Principles

M
