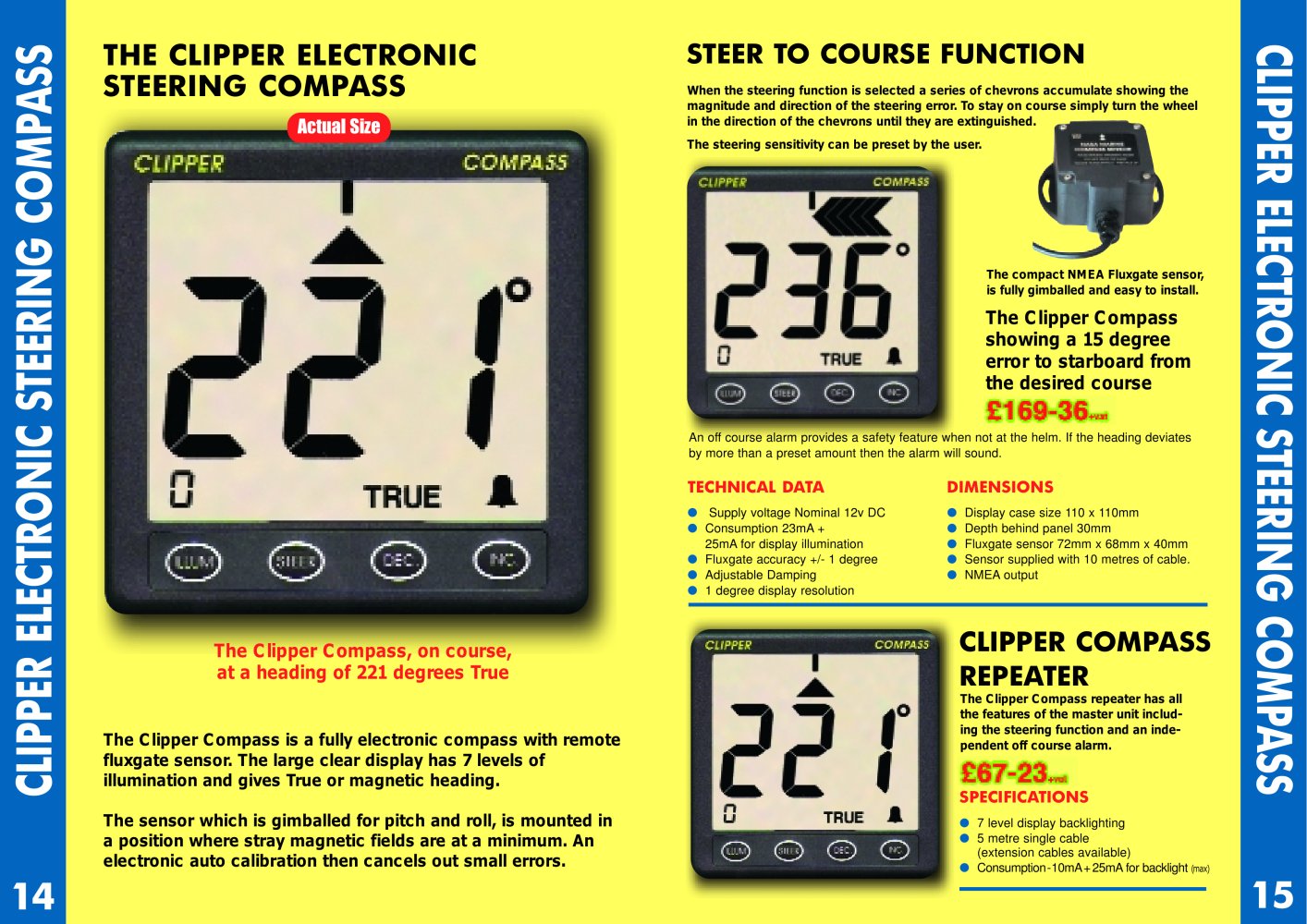

THE CLIPPER ELECTRONICSTEERING COMPASS

STEER TO COURSE FUNCTION

When the steering function is selected a series of chevrons accumulate showing the magnitude and direction of the steering error. To stay on course simply turn the wheel in the direction of the chevrons until they are extinguished.The steering sensitivity can be preset by the user.

Actual Size

The compact NMEA Fluxgate sensor, is fully gimballed and easy to install.

The Clipper Compassshowing a 15 degree error to starboard from the desired course

An off course alarm provides a safety feature when not at the helm. If the heading deviatesby more than a preset amount then the alarm will sound.

TECHNICAL DATADIMENSIONS

Supply voltage Nominal 12v DC Display case size 110 x 110mm Consumption 23mA+ Depth behind panel 30mm25mAfor display illumination Fluxgate sensor 72mm x 68mm x 40mm Fluxgate accuracy +/- 1 degree Sensor supplied with 10 metres of cable. Adjustable Damping NMEAoutput 1 degree display resolution

The Clipper Compass, on course,at a heading of 221 degrees True

CLIPPER COMPASS REPEATER

The Clipper Compass repeater has allthe features of the master unit includ- ing the steering function and an inde- pendent off course alarm.

The Clipper Compass is a fully electronic compass with remotefluxgate sensor. The large clear display has 7 levels of illumination and gives True or magnetic heading.The sensor which is gimballed for pitch and roll, is mounted ina position where stray magnetic fields are at a minimum. An electronic auto calibration then cancels out small errors.

CLIPPER ELECTRONIC STEERING COMPASS

SPECIFICATIONS

7 level display backlighting 5 metre single cable(extension cables available) Consumption-10mA+25mAfor backlight
(max)

14 15
