CLIPPER NAVTEX CLIPPER NAVTEX TARGET NAVTEX PRO-PLUSTARGET NAVTEX PRO-PLUS

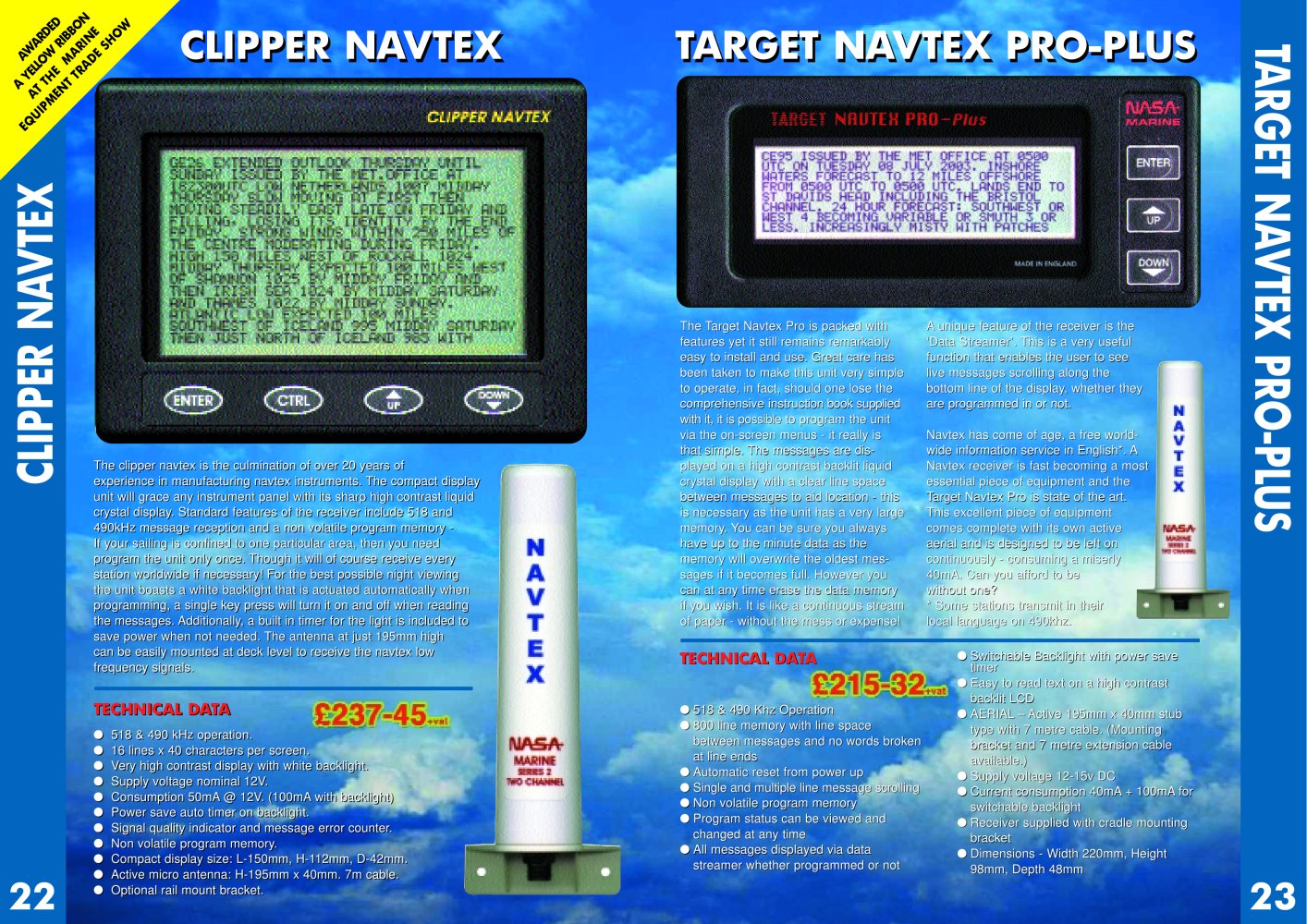

TARGET NAVTEX PRO-PLUS The clipper navtex is the culmination of over 20 years of experience in manufacturing navtex instruments. The compact display unit will grace any instrument panel with its sharp high contrast liquid crystal display. Standard features of the marine receiver include 518 and 490kHz message reception and a non volatile program memory - If your sailing is confined to one particular area, then you need program the unit only once. Though it will of course receive every station worldwide if necessary! For the best possible night viewing the unit boasts a white backlight that is actuated automatically when programming, a single key press will turn it on and off when reading the messages. Additionally, a built in timer for the light is included to save power when not needed. The marine antenna at just 195mm high can be easily mounted at deck level to receive the navtex low frequency signals.
CLIPPER NAVTEX Switchable Backlight with power savetimer Switchable Backlight with power savetimer

TECHNICAL DATA TECHNICAL DATA

Easy to read text on a high contrastbacklit LCD Easy to read text on a high contrastbacklit LCD AERIAL– Active 195mm x 40mm stubtype with 7 metre cable. (Mounting bracket and 7 metre extension cable available.) Supply voltage 12-15v DC AERIAL– Active 195mm x 40mm stubtype with 7 metre cable. (Mounting bracket and 7 metre extension cable available.) Supply voltage 12-15v DC

TECHNICAL DATA

Current consumption 40mA+ 100mAforswitchable backlight Current consumption 40mA+ 100mAforswitchable backlight

TECHNICAL DATA

518 & 490 Khz Operation 518 & 490 Khz Operation 518 & 490 kHz operation. 800 line memory with line spacebetween messages and no words broken at line ends 800 line memory with line spacebetween messages and no words broken at line ends 518 & 490 kHz operation. Receiver supplied with cradle mountingbracket Receiver supplied with cradle mountingbracket 16 lines x 40 characters per screen. Automatic reset from power up Automatic reset from power up 16 lines x 40 characters per screen. Very high contrast display with white backlight. Single and multiple line message scrolling Single and multiple line message scrolling Very high contrast display with white backlight. Dimensions - Width 220mm, Height98mm, Depth 48mm The Target Navtex Pro is packed with features yet it still remains remarkably easy to install and use. Great care has been taken to make this unit very simple to operate, in fact, should one lose the comprehensive instruction book suppliedwith it, it is possibleto program the unitvia the on-screen menus - it really is that simple. The messages are dis- played on a high contrast backlit liquid crystal display with a clear line space between messages to aid location - this is necessary as the unit has a very large memory. You can be sure you always have up to the minute data as the memory will overwrite the oldest mes- sages if it becomes full. However you can at any time erase the data memory if you wish. It is like a continuous stream of paper - without the mess or expense! Aunique feature of the receiver is the‘Data Streamer’. This is a very useful function that enables the user to see live messages scrolling along the bottom line of the display, whether they are programmed in or not.Navtex has come of age, a free world-wide information service in English*. A Navtex receiver is fast becoming a most essential piece of equipment and the Target Navtex Pro is state of the art. This excellent piece of equipment comes complete with its own active aerial and is designed to be left on continuously - consuming a miserly 40mA. Can you afford to be without one? * Some stations transmit in their local language on 490khz. The Target Navtex Pro is packed with features yet it still remains remarkably easy to install and use. Great care has been taken to make this unit very simple to operate, in fact, should one lose the comprehensive instruction book suppliedwith it, it is possibleto program the unitvia the on-screen menus - it really is that simple. The messages are dis- played on a high contrast backlit liquid crystal display with a clear line space between messages to aid location - this is necessary as the unit has a very large memory. You can be sure you always have up to the minute data as the memory will overwrite the oldest mes- sages if it becomes full. However you can at any time erase the data memory if you wish. It is like a continuous stream of paper - without the mess or expense! Aunique feature of the receiver is the‘Data Streamer’. This is a very useful function that enables the user to see live messages scrolling along the bottom line of the display, whether they are programmed in or not.Navtex has come of age, a free world-wide information service in English*. A Navtex receiver is fast becoming a most essential piece of equipment and the Target Navtex Pro is state of the art. This excellent piece of equipment comes complete with its own active aerial and is designed to be left on continuously - consuming a miserly 40mA. Can you afford to be without one? * Some stations transmit in their local language on 490khz. Dimensions - Width 220mm, Height98mm, Depth 48mm Supply voltage nominal 12V. Non volatile program memory Non volatile program memory Supply voltage nominal 12V. Consumption 50mA@ 12V. (100mAwith backlight) Program status can be viewed andchanged at any time Program status can be viewed andchanged at any time Consumption 50mA@ 12V. (100mAwith backlight) Power save auto timer on backlight. Power save auto timer on backlight. Signal quality indicator and message error counter. All messages displayed via datastreamer whether programmed or not All messages displayed via datastreamer whether programmed or not Signal quality indicator and message error counter. Non volatile program memory. Non volatile program memory. Compact display size: L-150mm, H-112mm, D-42mm. Compact display size: L-150mm, H-112mm, D-42mm. Active micro antenna: H-195mm x 40mm. 7m cable. Active micro antenna: H-195mm x 40mm. 7m cable.

22

Optional rail mount bracket. The clipper navtex is the culmination of over 20 years of experience in manufacturing navtex instruments. The compact display unit will grace any instrument panel with its sharp high contrast liquid crystal display. Standard features of the receiver include 518 and 490kHz message reception and a non volatile program memory - If your sailing is confined to one particular area, then you need program the unit only once. Though it will of course receive every station worldwide if necessary! For the best possible night viewing the unit boasts a white backlight that is actuated automatically when programming, a single key press will turn it on and off when reading the messages. Additionally, a built in timer for the light is included to save power when not needed. The antenna at just 195mm high can be easily mounted at deck level to receive the navtex low frequency signals. Optional rail mount bracket.

23
