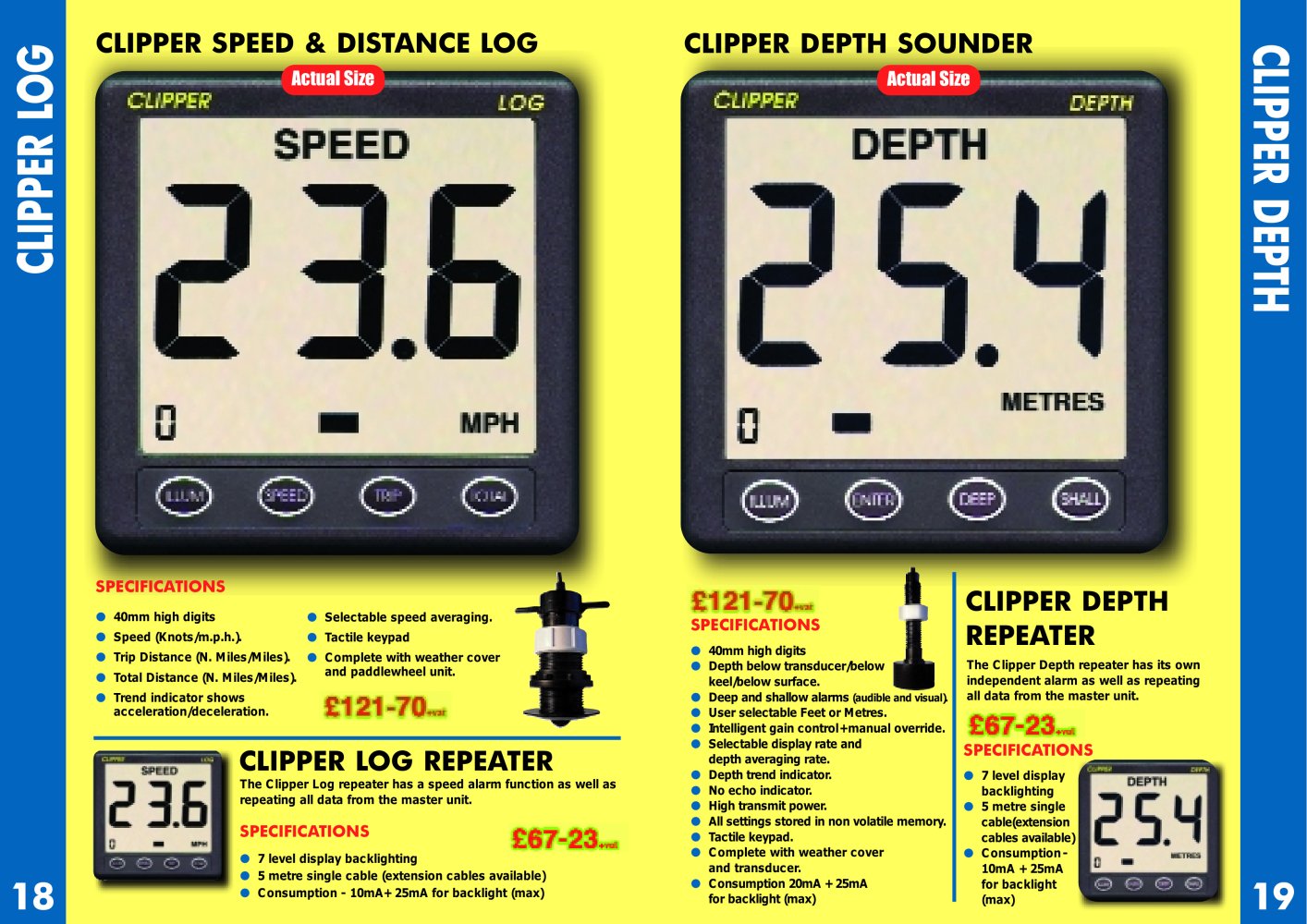

CLIPPER DEPTH Actual Size Actual Size
CLIPPER LOG SPECIFICATIONS
40mm high digits Selectable speed averaging. Tactile keypad
SPECIFICATIONS
CLIPPER DEPTH REPEATER
Speed (Knots/m.p.h.). Trip Distance (N. Miles/Miles). Complete with weather cover and paddlewheel unit. 40mm high digits Depth below transducer/below keel/below surface. The Clipper Depth repeater has its ownindependent alarm as well as repeating
all data from the master unit. Total Distance (N. Miles/Miles). Trend indicator shows acceleration/deceleration. Deep and shallow alarms
(audible and visual). User selectable Feet or Metres. Intelligent gain control+manual override. Selectable display rate and depth averaging rate.
CLIPPER LOG REPEATER
SPECIFICATIONS
Depth trend indicator. The Clipper Log repeater has a speed alarm function as well asrepeating all data from the master unit. 7 level display backlighting No echo indicator. High transmit power. 5 metre single cable(extension
cables available)
SPECIFICATIONS
All settings stored in non volatile memory. Consumption- 10mA + 25mA for backlight
(max) Tactile keypad. 7 level display backlighting Complete with weather cover and transducer. 5 metre single cable (extension cables available)
18
Consumption - 10mA+ 25mA for backlight (max) Consumption 20mA + 25mA for backlight (max)
19
