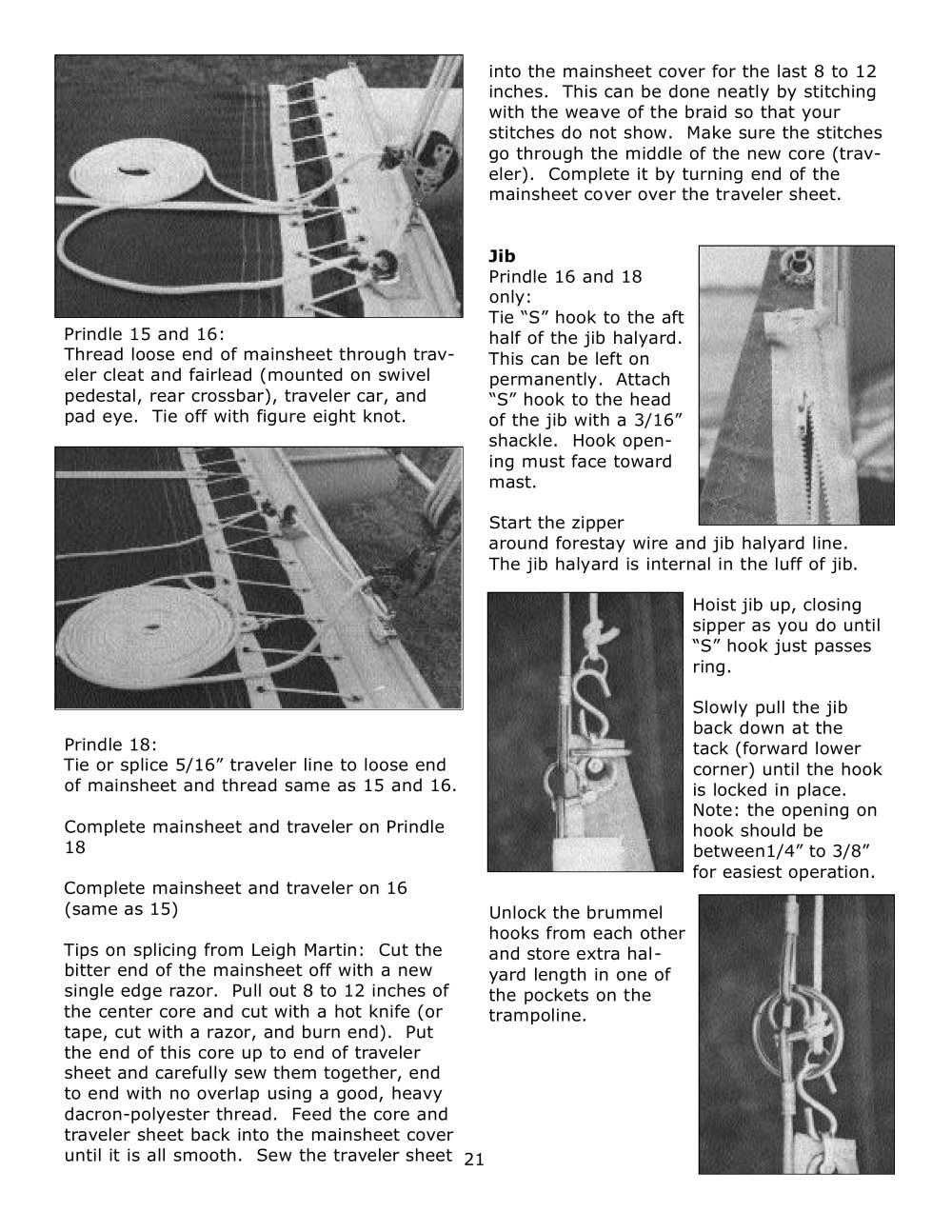

Jib Prindle 16 and 18only:Tie “S” hook for boat to the afthalf of the jib halyard.This can be left onpermanently. Attach“S” hook to the headof the jib with a 3/16”shackle. Hook open-ing must face towardmast.Start the zipperaround forestay wire and jib halyard line.The jib halyard is internal in the luff of jib.Hoist jib up, closingsipper as you do until“S” hook just passesring.Slowly pull the jibback down at thetack (forward lowercorner) until the hookis locked in place.Note: the opening onhook should bebetween1/4” to 3/8”for easiest operation.Unlock the brummelhooks from each otherand store extra hal-yard length in one ofthe pockets on thetrampoline. Prindle 15 and 16:Thread loose end of mainsheet through trav-eler cleat and fairlead (mounted on swivelpedestal, rear crossbar), traveler car, andpad eye. Tie off with figure eight knot. Prindle 18:Tie or splice 5/16” traveler line to loose endof mainsheet and thread same as 15 and 16.Complete mainsheet and traveler on Prindle18Complete mainsheet and traveler on 16(same as 15)Tips on splicing from Leigh Martin: Cut thebitter end of the mainsheet off with a newsingle edge razor. Pull out 8 to 12 inches ofthe center core and cut with a hot knife for boat (ortape, cut with a razor, and burn end). Putthe end of this core up to end of travelersheet and carefully sew them together, endto end with no overlap using a good, heavydacron-polyester thread. Feed the core andtraveler sheet back into the mainsheet coveruntil it is all smooth. Sew the traveler sheet into the mainsheet cover for boats for the last 8 to 12inches. This can be done neatly by stitchingwith the weave of the braid so that yourstitches do not show. Make sure the stitchesgo through the middle of the new core (trav-eler). Complete it by turning end of themainsheet cover over the traveler sheet. 21
