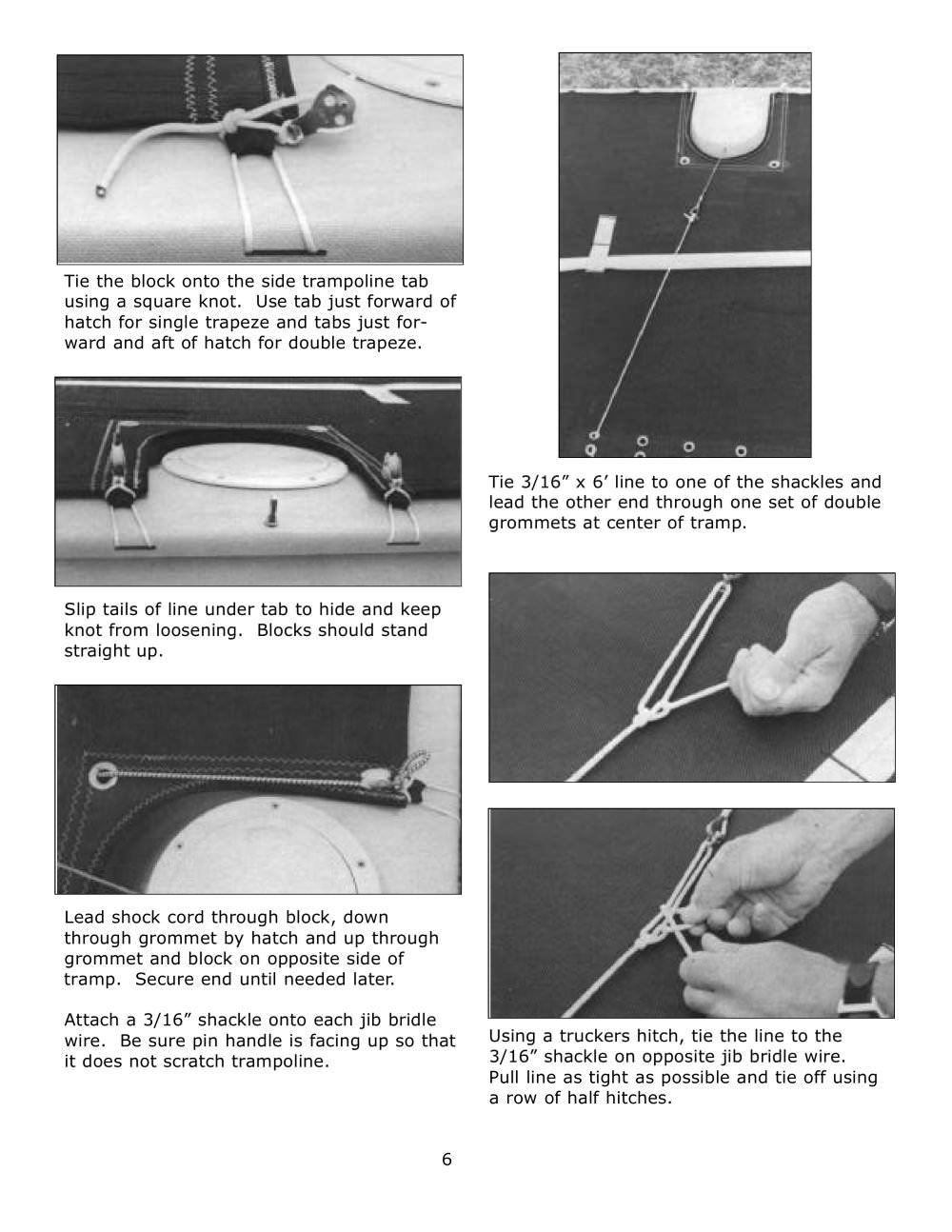

Tie the block onto the side trampoline tabusing a square knot. Use tab just forward ofhatch for single trapeze and tabs just for-ward and aft of hatch for double trapeze. Slip tails of line under tab to hide and keepknot from loosening. Boat blocks should standstraight up. Lead shock cord through block, downthrough grommet by hatch and up throughgrommet and block on opposite side oftramp. Secure end until needed later.Attach a 3/16” shackle onto each jib bridlewire. Be sure sailboat pin handle for boat is facing up so thatit does not scratch trampoline. Tie 3/16” x 6’ line to one of the marine shackles andlead the other end through one set of doublegrommets at center of tramp. Using a truckers hitch, tie the line to the3/16” shackle on opposite jib bridle wire.Pull line as tight as possible and tie off usinga row of half hitches. 6
