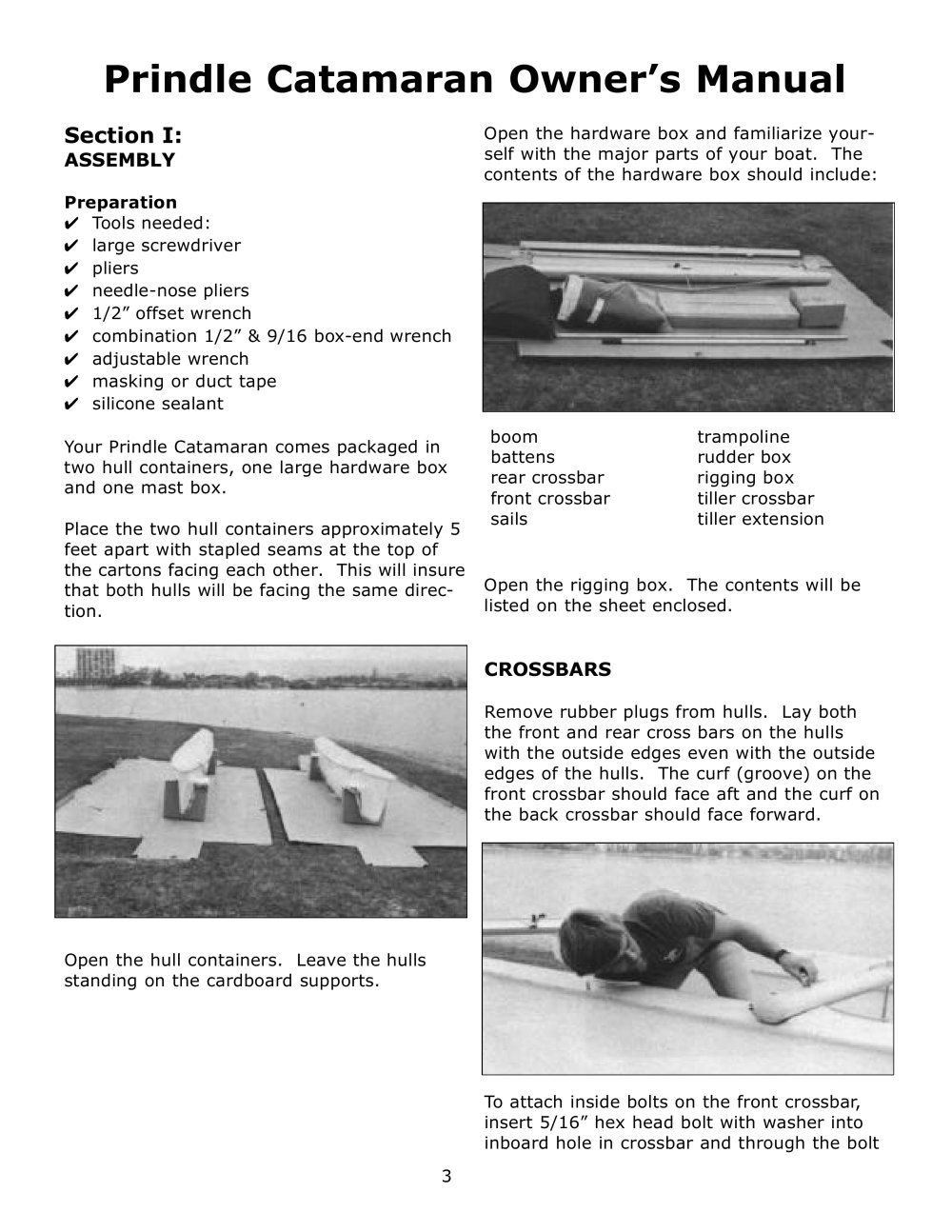

Section I:
ASSEMBLY
Preparation Tools needed: large screwdriver pliers needle-nose pliers 1/2” offset wrench combination 1/2” & 9/16 box-end wrench adjustable wrench masking or duct tape silicone sealantYour Prindle Catamaran comes packaged intwo hull containers, one large hardware boxand one
mast for boats box.Place the two hull containers approximately 5feet apart with stapled seams at the
top for boat ofthe cartons facing each other. This will insurethat both
sailboat hulls will be facing the same direc-tion.
Open the hull containers. Leave the hullsstanding on the cardboard supports.
Open the hardware box and familiarize your-self with the major parts of your boat. Thecontents of the hardware box should include:
Open the rigging box. The contents will belisted on the sheet enclosed. boombattensrear crossbarfront crossbarsailstrampolinerudder boxrigging boxtiller crossbartiller
extension for boats CROSSBARS
Remove rubber plugs from hulls. Lay boththe front and rear cross bars on the hullswith the outside edges even with the outsideedges of the hulls. The curf (groove) on thefront crossbar should face aft and the curf onthe back crossbar should face forward.
To attach inside bolts on the front crossbar,insert 5/16” hex head bolt with washer intoinboard hole in crossbar and through the bolt 3
