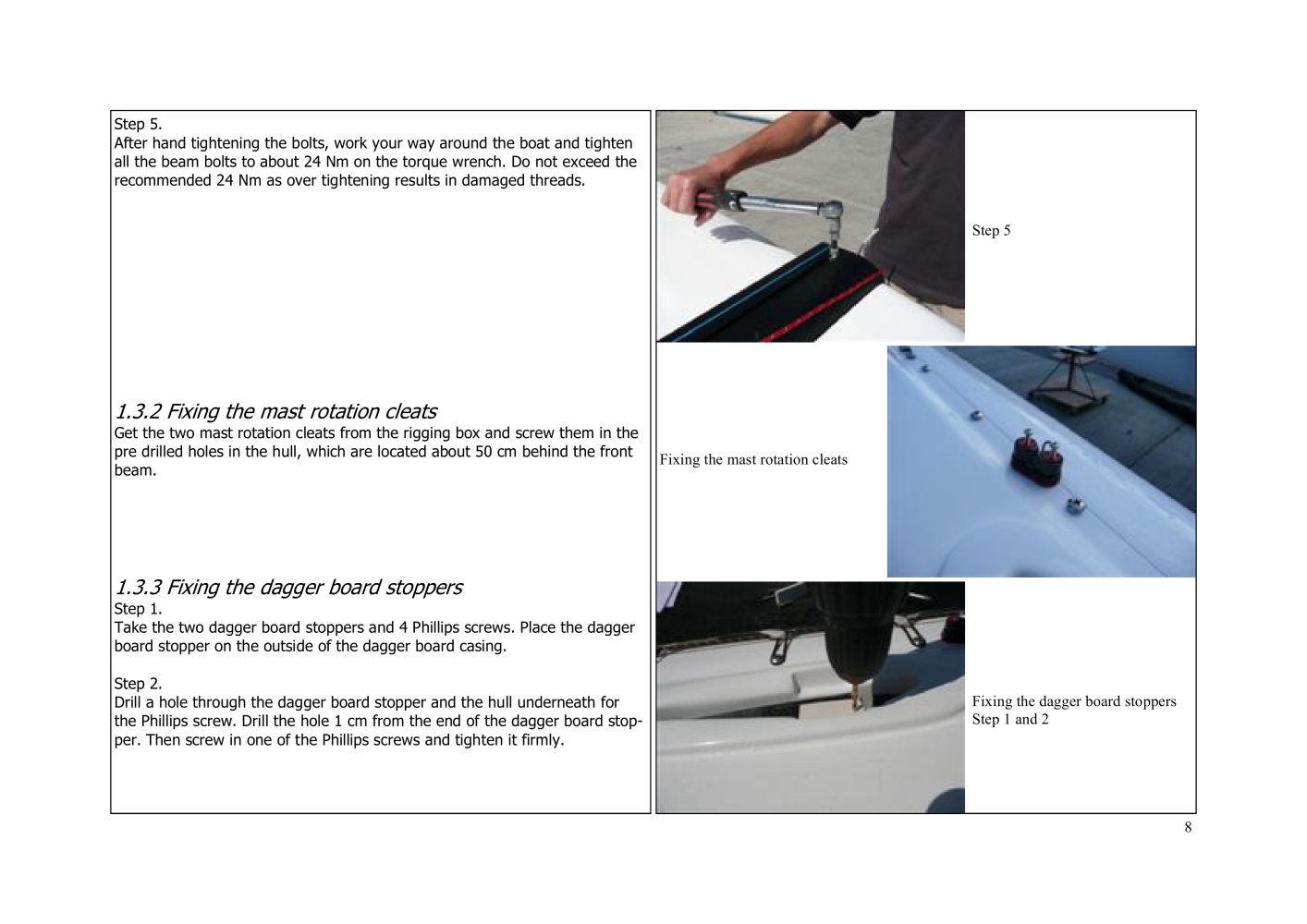

		Step 5. After hand tightening the bolts, work your way around the boat supplier and tighten all the beam bolts to about 24 Nm on the torque wrench. Do not exceed the recommended 24 Nm as over tightening results in damaged threads.

			1.3.2 Fixing the mast for boats* rotation cleats* Get the two mast rotation cleats from the rigging box and screw them in the pre drilled holes in the hull, which are located about 50 cm behind the front beam.

			1.3.3 Fixing the dagger board stoppers Step 1. Take the two dagger board stoppers and 4 Phillips screws. Place the dagger board stopper on the outside of the dagger board casing. Step 2. Drill a hole through the dagger board stopper and the hull underneath for the Phillips screw. Drill the hole 1 cm from the end of the dagger board stopper. Then screw in one of the Phillips screws and tighten it firmly.

							8
