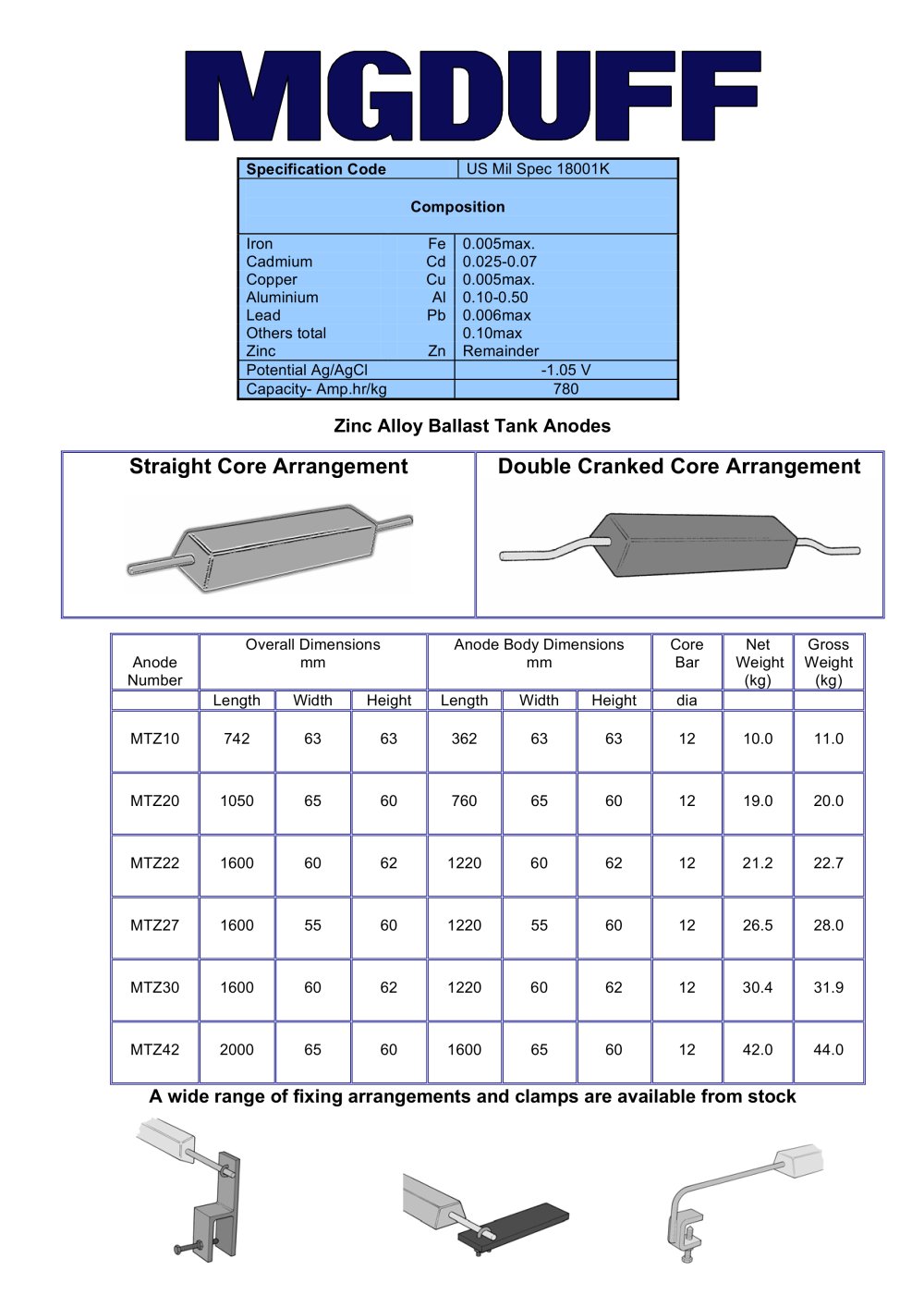

Specification Code US Mil Spec 18001K Composition Iron Fe 0.005max. Cadmium Cd 0.025-0.07 Copper Cu 0.005max. Aluminium Al 0.10-0.50 Lead Pb 0.006max Others total 0.10max Zinc Zn Remainder Potential Ag/AgCl -1.05 V Capacity- Amp.hr/kg 780 >
Zinc Alloy Ballast Tank Anodes
Straight Core Arrangement Double Cranked Core Arrangement
Anode Number
Overall Dimensions mm Anode Body Dimensions mm Core Bar Net Weight(kg) Gross Weight (kg) Length Width Height Length Width Height dia MTZ10 742 63 63 362 63 63 12 10.0 11.0 MTZ20 1050 65 60 760 65 60 12 19.0 20.0 MTZ22 1600 60 62 1220 60 62 12 21.2 22.7 MTZ27 1600 55 60 1220 55 60 12 26.5 28.0 MTZ30 1600 60 62 1220 60 62 12 30.4 31.9 MTZ42 2000 65 60 1600 65 60 12 42.0 44.0 >
A wide range of fixing arrangements and clamps are available from stock
