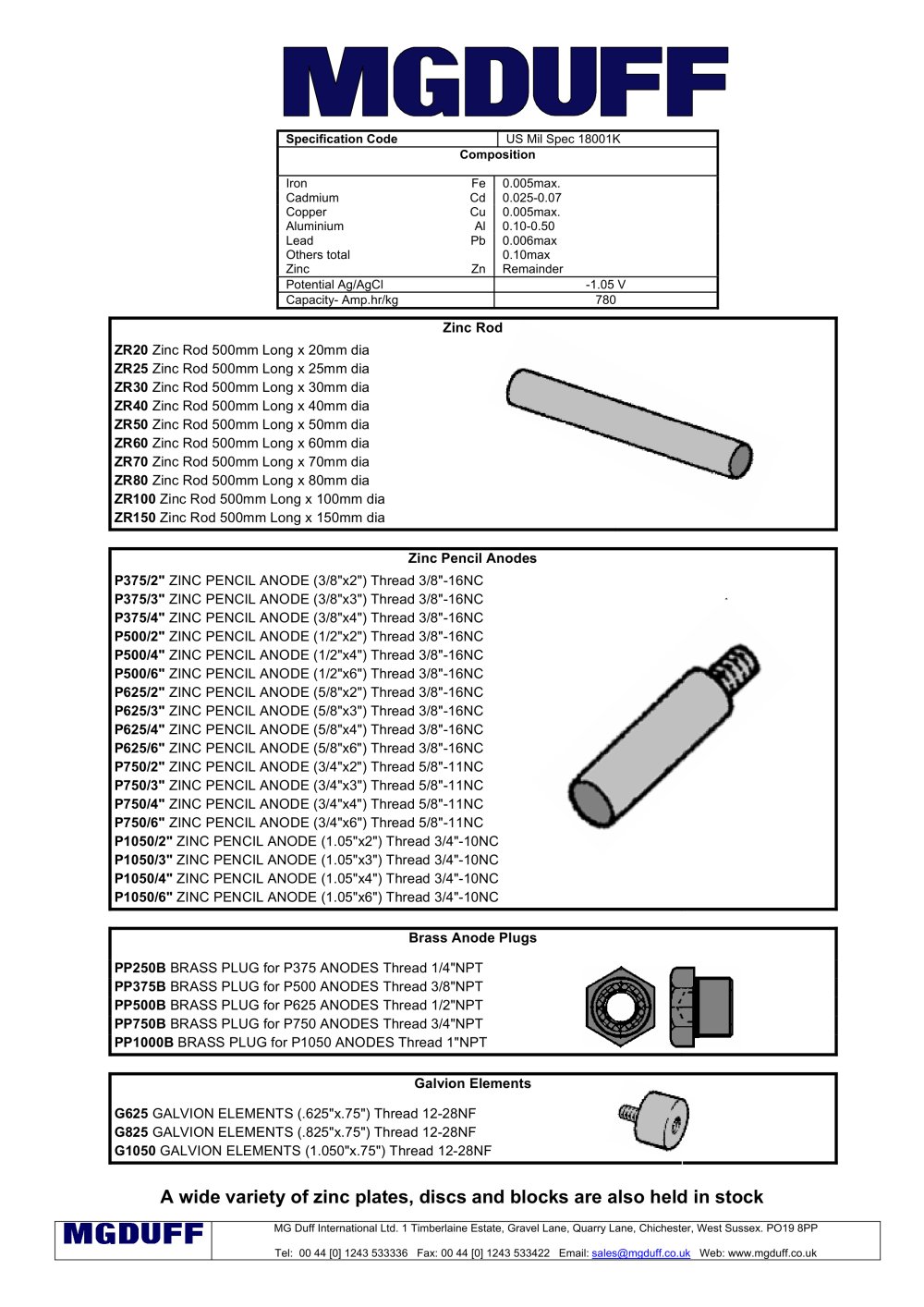

Specification Code US Mil Spec 18001K Composition Iron Fe 0.005max. Cadmium Cd 0.025-0.07 Copper Cu 0.005max. Aluminium Al 0.10-0.50 Lead Pb 0.006max Others total 0.10max Zinc Zn Remainder Potential Ag/AgCl -1.05 V Capacity- Amp.hr/kg 780 Zinc Rod ZR20 Zinc Rod 500mm Long x 20mm dia ZR25 Zinc Rod 500mm Long x 25mm dia ZR30 Zinc Rod 500mm Long x 30mm dia ZR40 Zinc Rod 500mm Long x 40mm dia ZR50 Zinc Rod 500mm Long x 50mm dia ZR60 Zinc Rod 500mm Long x 60mm dia ZR70 Zinc Rod 500mm Long x 70mm dia ZR80 Zinc Rod 500mm Long x 80mm dia ZR100 Zinc Rod 500mm Long x 100mm dia ZR150 Zinc Rod 500mm Long x 150mm dia Zinc Pencil Anodes P375/2" ZINC PENCIL ANODE (3/8"x2") Thread 3/8"-16NC P375/3" ZINC PENCIL ANODE (3/8"x3") Thread 3/8"-16NC P375/4" ZINC PENCIL ANODE (3/8"x4") Thread 3/8"-16NC P500/2" ZINC PENCIL ANODE (1/2"x2") Thread 3/8"-16NC P500/4" ZINC PENCIL ANODE (1/2"x4") Thread 3/8"-16NC P500/6" ZINC PENCIL ANODE (1/2"x6") Thread 3/8"-16NC P625/2" ZINC PENCIL ANODE (5/8"x2") Thread 3/8"-16NC P625/3" ZINC PENCIL ANODE (5/8"x3") Thread 3/8"-16NC P625/4" ZINC PENCIL ANODE (5/8"x4") Thread 3/8"-16NC P625/6" ZINC PENCIL ANODE (5/8"x6") Thread 3/8"-16NC P750/2" ZINC PENCIL ANODE (3/4"x2") Thread 5/8"-11NC P750/3" ZINC PENCIL ANODE (3/4"x3") Thread 5/8"-11NC P750/4" ZINC PENCIL ANODE (3/4"x4") Thread 5/8"-11NC P750/6" ZINC PENCIL ANODE (3/4"x6") Thread 5/8"-11NC P1050/2" ZINC PENCIL ANODE (1.05"x2") Thread 3/4"-10NC P1050/3" ZINC PENCIL ANODE (1.05"x3") Thread 3/4"-10NC P1050/4" ZINC PENCIL ANODE (1.05"x4") Thread 3/4"-10NC P1050/6" ZINC PENCIL ANODE (1.05"x6") Thread 3/4"-10NC Brass Anode Plugs PP250B BRASS PLUG for P375 ANODES Thread 1/4"NPT PP375B BRASS PLUG for P500 ANODES Thread 3/8"NPT PP500B BRASS PLUG for P625 ANODES Thread 1/2"NPT PP750B BRASS PLUG for P750 ANODES Thread 3/4"NPT PP1000B BRASS PLUG for P1050 ANODES Thread 1"NPT Galvion Elements G625 GALVION ELEMENTS (.625"x.75") Thread 12-28NF G825 GALVION ELEMENTS (.825"x.75") Thread 12-28NF G1050 GALVION ELEMENTS (1.050"x.75") Thread 12-28NF

A wide variety of zinc plates, discs and blocks are also held in stock

MG Duff International Ltd. 1 Timberlaine Estate, Gravel Lane, Quarry Lane, Chichester, West Sussex. PO19 8PP Tel: 00 44 [0] 1243 533336 Fax: 00 44 [0] 1243 533422 Email: sales@mgduff.co.uk Web: www.mgduff.co.uk
