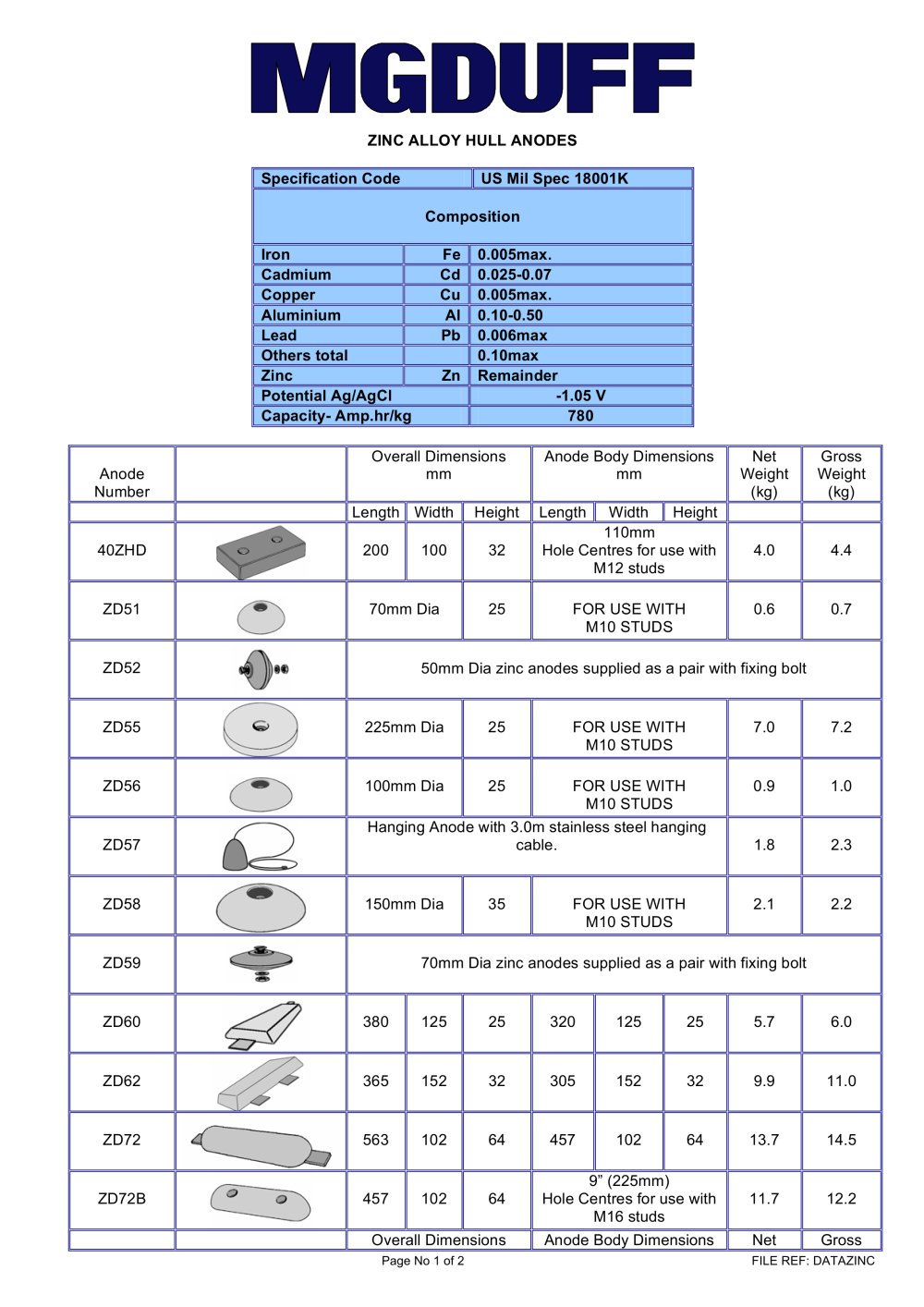

ZINC ALLOY HULL ANODES Specification Code US Mil Spec 18001K Composition Iron Fe 0.005max. Cadmium Cd 0.025-0.07 Copper Cu 0.005max. Aluminium Al 0.10-0.50 Lead Pb 0.006max Others total 0.10max Zinc Zn Remainder Potential Ag/AgCl -1.05 V Capacity- Amp.hr/kg 780 Anode Number Overall Dimensions mm Anode Body Dimensions mm Net Weight (kg) Gross Weight (kg) LengthWidthHeight LengthWidth Height 40ZHD 200 100 32 110mm Hole Centres for use with M12 studs 4.0 4.4 ZD51 70mm Dia 25 FOR USE WITH M10 STUDS 0.6 0.7 ZD52 50mm Dia zinc anodes supplied as a pair with fixing bolt ZD55 225mm Dia 25 FOR USE WITH M10 STUDS 7.0 7.2 ZD56 100mm Dia 25 FOR USE WITH M10 STUDS 0.9 1.0 ZD57 Hanging Anode with 3.0m stainless steel hanging cable. 1.8 2.3 ZD58 150mm Dia 35 FOR USE WITH M10 STUDS 2.1 2.2 ZD59 70mm Dia zinc anodes supplied as a pair with fixing bolt ZD60 380 125 25 320 125 25 5.7 6.0 ZD62 365 152 32 305 152 32 9.9 11.0 ZD72 563 102 64 457 102 64 13.7 14.5 ZD72B 457 102 64 9” (225mm) Hole Centres for use with M16 studs 11.7 12.2 Overall Dimensions Anode Body Dimensions Net Gross
Page No 1 of 2 FILE REF: DATAZINC
