Specification Code Aluminium Alloy X Composition Iron Fe 0.10max. Silicon Si 0.05 - 0.10 Copper Cu 0.004max. Zinc Zn 3.75 - 5.25 Indium In 0.017 - 0.021 Titanium Ti 0.025max. Gallium Ga 0.005 - 0.020 Others each 0.0250max Aluminium Al Remainder Potential Ag/AgCl -1.05 V Capacity- Amp.hr/kg 2500

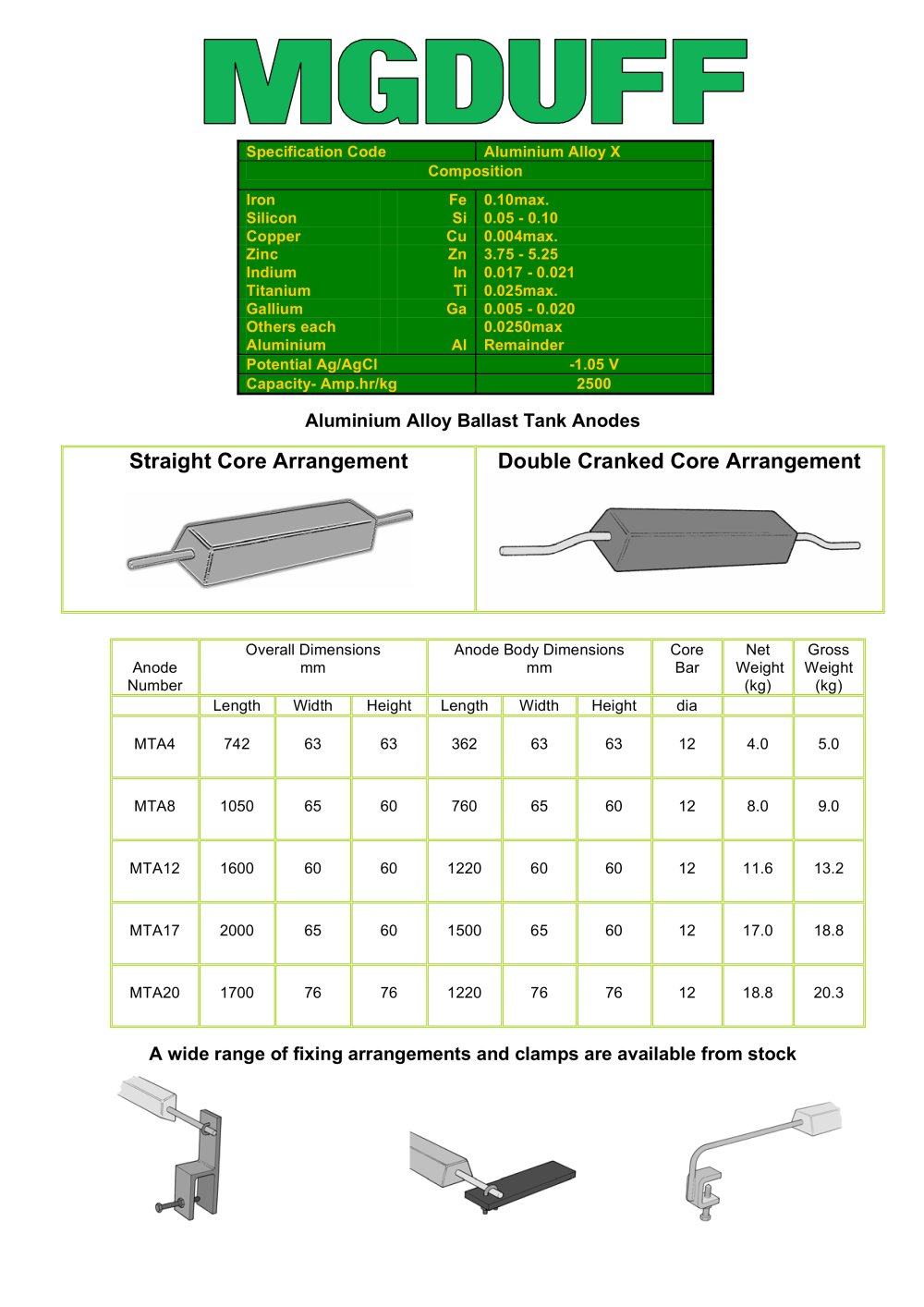

Aluminium Alloy Ballast Tank Anodes

Straight Core Arrangement Double Cranked Core Arrangement

Anode Number Overall Dimensions mm Anode Body Dimensions mm Core Bar Net Weight(kg) Gross Weight (kg) Length Width Height Length Width Height dia MTA4 742 63 63 362 63 63 12 4.0 5.0 MTA8 1050 65 60 760 65 60 12 8.0 9.0 MTA12 1600 60 60 1220 60 60 12 11.6 13.2 MTA17 2000 65 60 1500 65 60 12 17.0 18.8 MTA20 1700 76 76 1220 76 76 12 18.8 20.3

A wide range of fixing arrangements and clamps are available from stock
