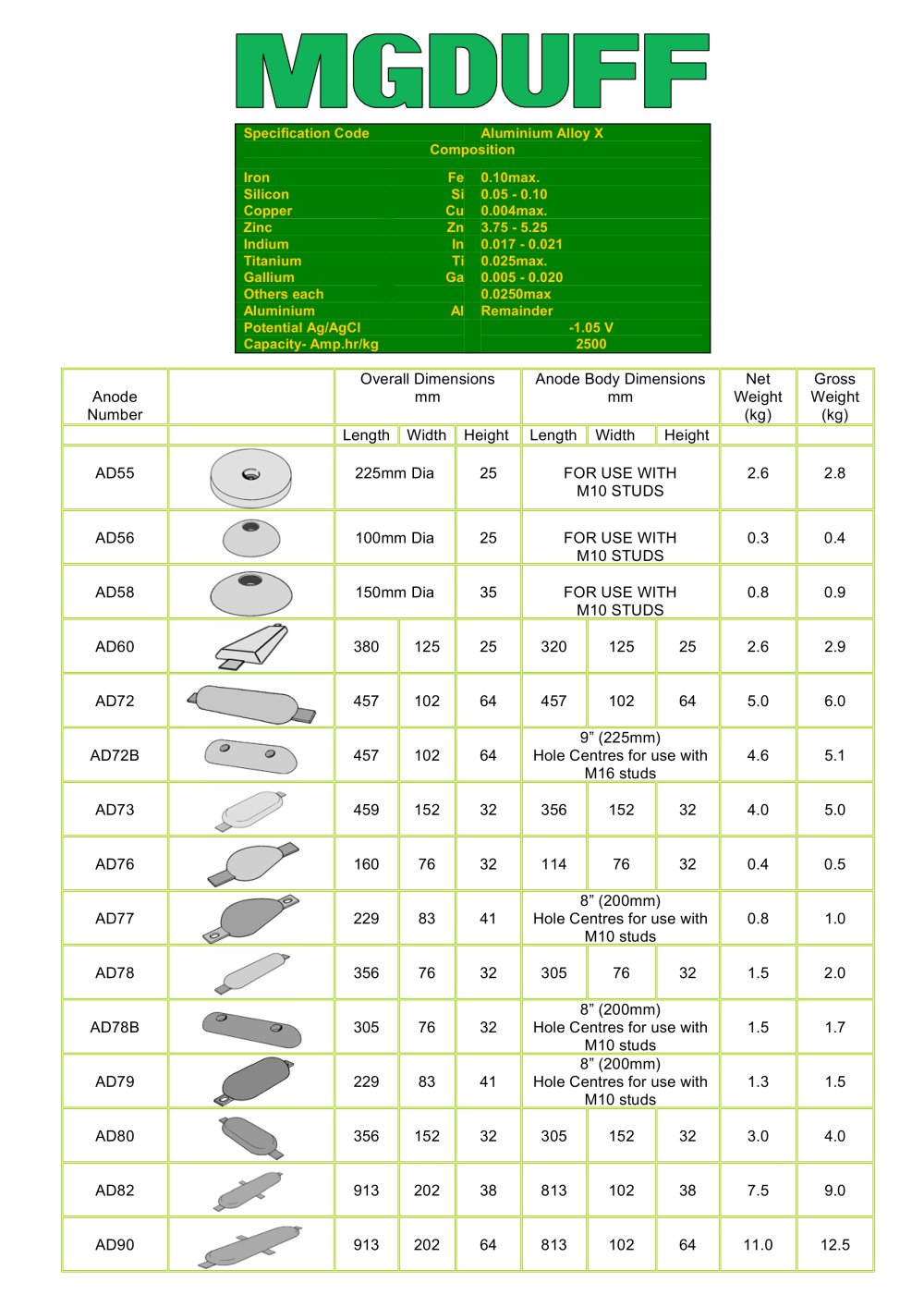

Specification Code Aluminium Alloy X Composition Iron Fe 0.10max. Silicon Si 0.05 - 0.10 Copper Cu 0.004max. Zinc Zn 3.75 - 5.25 Indium In 0.017 - 0.021 Titanium Ti 0.025max. Gallium Ga 0.005 - 0.020 Others each 0.0250max Aluminium Al Remainder Potential Ag/AgCl -1.05 V Capacity- Amp.hr/kg 2500

Anode Number Overall Dimensions mm Anode Body Dimensions mm Net Weight (kg) Gross Weight (kg) Length WidthHeight Length Width Height AD55 225mm Dia 25 FOR USE WITH M10 STUDS 2.6 2.8 AD56 100mm Dia 25 FOR USE WITH M10 STUDS 0.3 0.4 AD58 150mm Dia 35 FOR USE WITH M10 STUDS 0.8 0.9 AD60 380 125 25 320 125 25 2.6 2.9 AD72 457 102 64 457 102 64 5.0 6.0 AD72B 457 102 64 9” (225mm) Hole Centres for use with M16 studs 4.6 5.1 AD73 459 152 32 356 152 32 4.0 5.0 AD76 160 76 32 114 76 32 0.4 0.5 AD77 229 83 41 8” (200mm) Hole Centres for use with M10 studs 0.8 1.0 AD78 356 76 32 305 76 32 1.5 2.0 AD78B 305 76 32 8” (200mm) Hole Centres for use with M10 studs 1.5 1.7 AD79 229 83 41 8” (200mm) Hole Centres for use with M10 studs 1.3 1.5 AD80 356 152 32 305 152 32 3.0 4.0 AD82 913 202 38 813 102 38 7.5 9.0 AD90 913 202 64 813 102 64 11.0 12.5
