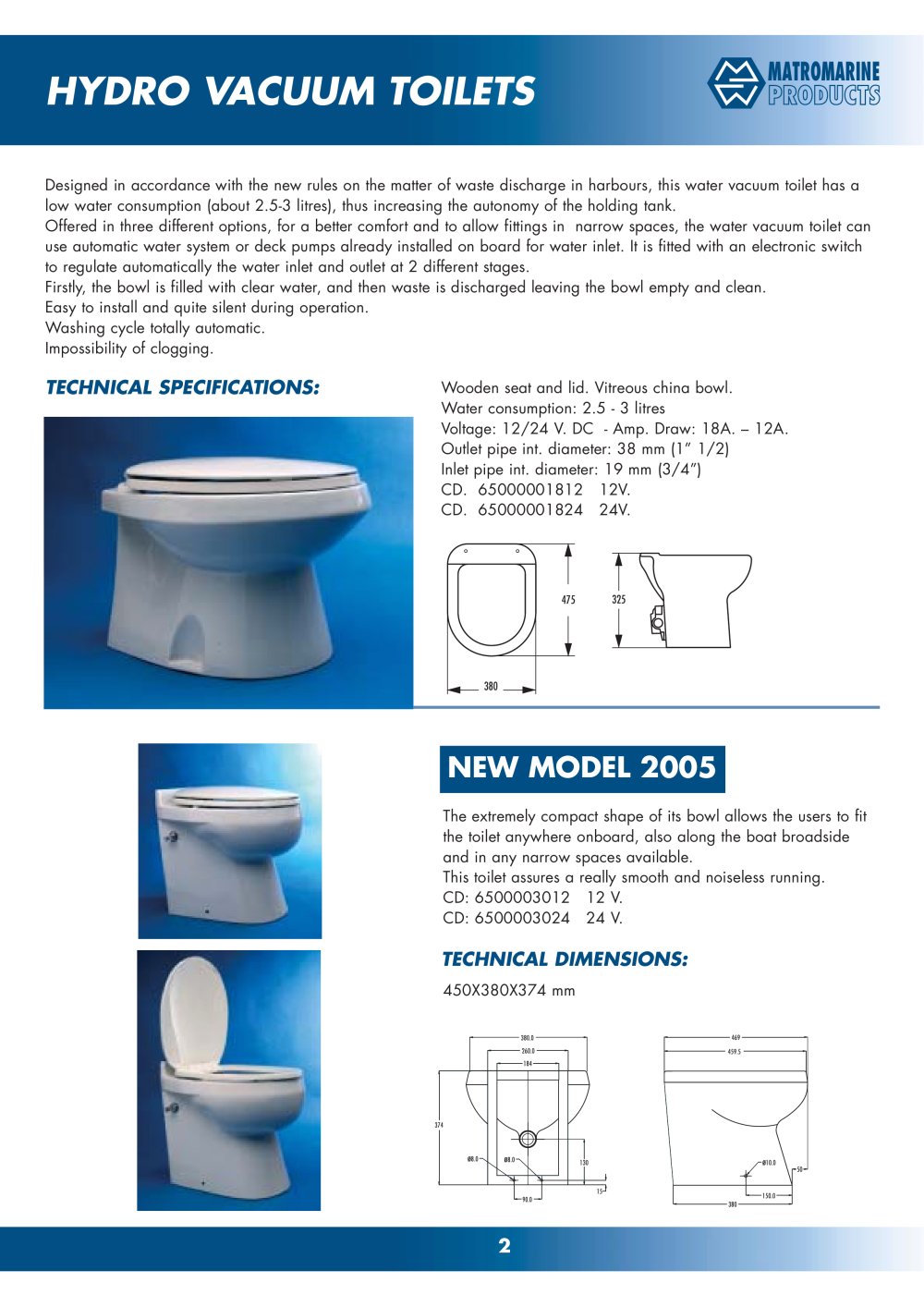

HYDRO VACUUMTOILETS

MATROMARINE PRODUCTS

Designed in accordance with the new rules on the matter of waste discharge in harbours, this water vacuum toilet has a low water consumption (about 2.5-3 litres), thus increasing the autonomy of the holding tank. Offered in three different options, for a better comfort and to allow fittings in narrow spaces, the water vacuum toilet can use automatic water system or deck boat pumps already installed on board for water inlet. It is fitted with an electronic switch to regulate automatically the water inlet and outlet at 2 different stages. Firstly, the bowl is filled with clear water, and then waste is discharged leaving the bowl empty and clean. Easy to install and quite silent during operation. Washing cycle totally automatic. Impossibility of clogging. TECHNICAL SPECIFICATIONS: Wooden seat and lid. Vitreous china bowl.Water consumption: 2.5 - 3 litres Voltage: 12/24 V. DC - Amp. Draw: 18A. – 12A. Outlet pipe int. diameter: 38 mm (1” 1/2) Inlet pipe int. diameter: 19 mm (3/4”) CD. 65000001812 12V. CD. 65000001824 24V.

380475325

NEWMODEL2005

The extremely compact shape of its bowl allows the users to fit the toilet anywhere onboard, also along the boat supplier broadside and in any narrow spaces available. This toilet assures a really smooth and noiseless running. CD: 6500003012 12 V. CD: 6500003024 24 V. TECHNICAL DIMENSIONS: 450X380X374 mm

380.0 469 260.0 459.5 184 374

ø

8.0

ø

8.0 130

ø

10.0 50 15 90.0 150.0 380
