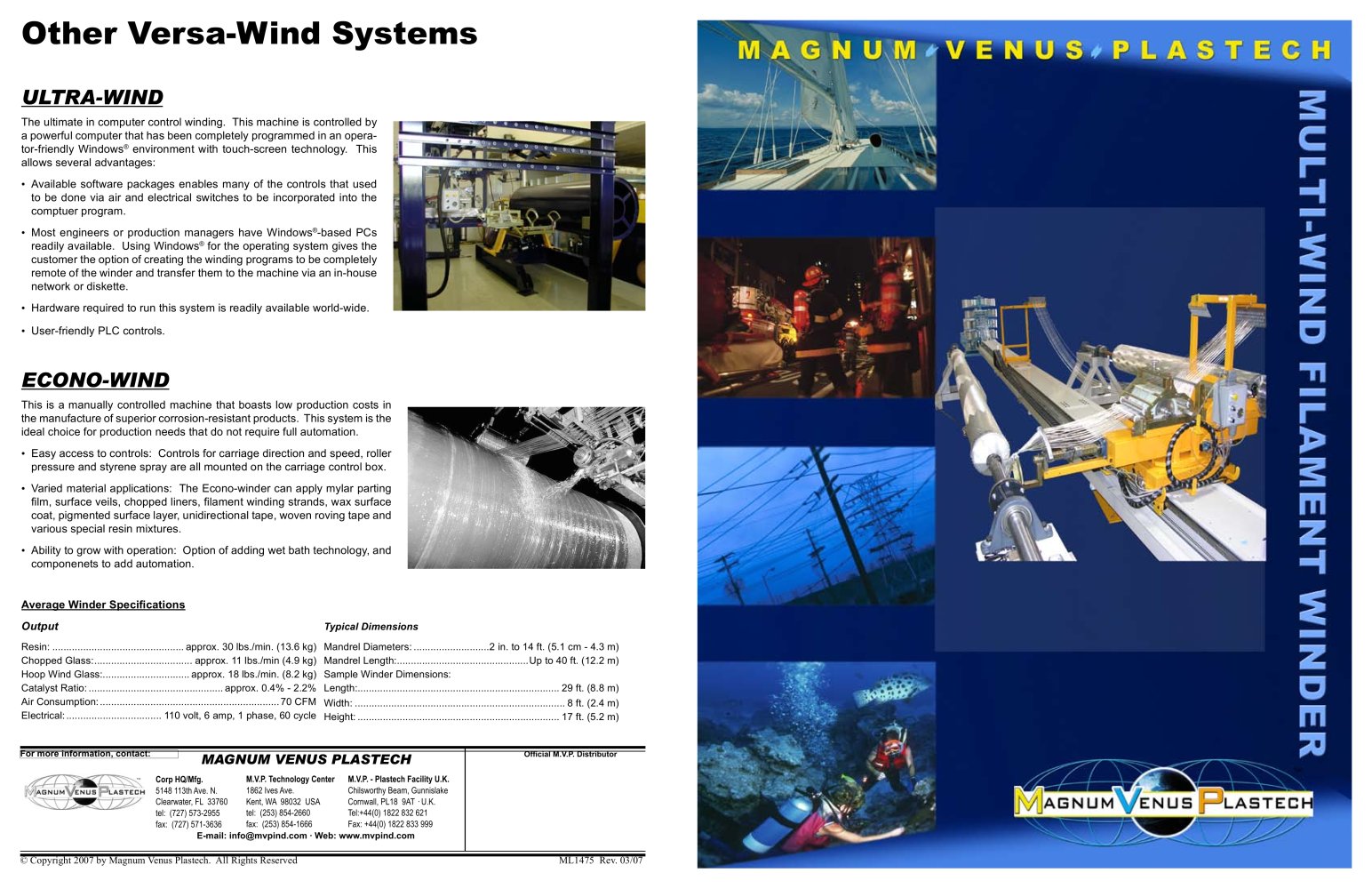

| Other Versa-Wind Systems | |||||||||||||||||||||||||||||||||||
| ULTRA-WIND The ultimate in computer control winding. This machine is controlled by a powerful computer that has been completely programmed in an operator-friendly Windows® environment with touch-screen technology. This allows several advantages: • Available software packages enables many of the controls that used to be done via air and electrical switches to be incorporated into the comptuer program. • Most engineers or production managers have Windows®-based PCs readily available. Using Windows® for the operating system gives the customer the option of creating the winding programs to be completely remote of the winder and transfer them to the machine via an in-house network or diskette. • Hardware required to run this system is readily available world-wide. • User-friendly PLC controls. | |||||||||||||||||||||||||||||||||||
| ECONO-WIND This is a manually controlled machine that boasts low production costs in the manufacture of superior corrosion-resistant products. This system is the ideal choice for production needs that do not require full automation. • Easy access to controls: Controls for carriage direction and speed, roller pressure and styrene spray are all mounted on the carriage control box. • Varied material applications: The Econo-winder can apply mylar parting film, surface veils, chopped liners, filament winding strands, wax surface coat, pigmented surface layer, unidirectional tape, woven roving tape and various special resin mixtures. • Ability to grow with operation: Option of adding wet bath technology, and componenets to add automation. | |||||||||||||||||||||||||||||||||||
| Average Winder Specifications Output | |||||||||||||||||||||||||||||||||||
| Typical Dimensions | |||||||||||||||||||||||||||||||||||
| Resin:...............................................approx. 30 lbs./min. (13.6 kg) Mandrel Diameters:...........................2 in. to 14 ft. (5.1 cm - 4.3 m) | |||||||||||||||||||||||||||||||||||
| Chopped Glass:...................................approx. 11 lbs./min (4.9 kg) Hoop Wind Glass:...............................approx. 18 lbs./min. (8.2 kg) Catalyst Ratio:................................................approx. 0.4% - 2.2% Air Consumption:................................................................70 CFM Electrical:..................................110 volt, 6 amp, 1 phase, 60 cycle | .Up to 40 ft. (12.2 m) | ||||||||||||||||||||||||||||||||||
| Mandrel Length:..................... Sample Winder Dimensions: Length:................................... Width: .................................... Height: ................................... | |||||||||||||||||||||||||||||||||||
| . 29 ft. (8.8 m) ... 8 ft. (2.4 m) .17 ft. (5.2 m) | |||||||||||||||||||||||||||||||||||
| Ihor mòre ihfòrmàtiòh, contact: | |||||||||||||||||||||||||||||||||||
| Official M.V.P. Distributor | |||||||||||||||||||||||||||||||||||
| MAGNUM VENUS PLASTECH | |||||||||||||||||||||||||||||||||||
| M.V.P. Technology Center 1862 Ives Ave. Kent, WA 98032 USA tel: (253) 854-2660 fax: (253) 854-1666 | M.V.P. - Plastech Facility U.K. Chilsworthy Beam, Gunnislake Cornwall, PL18 9AT ■ U.K. Tel:+44(0) 1822 832 621 Fax: +44(0) 1822 833 999 | ||||||||||||||||||||||||||||||||||
| Corp HQ/Mfg. 5148 113th Ave. N. Clearwater, FL 33760 tel: (727) 573-2955 fax: (727) 571-3636 | |||||||||||||||||||||||||||||||||||
| E-mail: info@mvpind.com • Web: www.mvpind.com | |||||||||||||||||||||||||||||||||||
| © Copyright 2007 by Magnum Venus Plastech. All Rights Reserved | ML1475 Rev. 03/07 | ||||||||||||||||||||||||||||||||||
