LHM 320 - 2 / 8 Pages

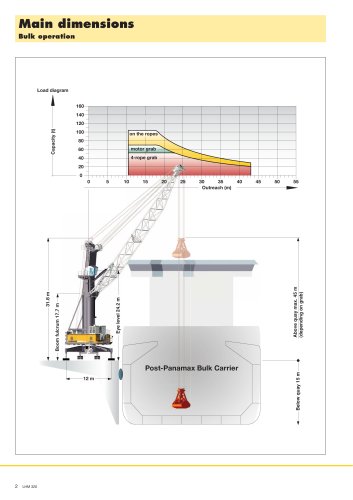

Main dimensions
Bulk operation
Load diagram
160
140
Capacity (t)
120
100
on the ropes
80
60
motor grab
40
4-rope grab
20
0
10
15
20
25
30
35
Outreach (m)
40
45
50
55
Above quay max. 45 m
(depending on grab)
5
Eye level 24.2 m
Boom fulcrum 17.7 m
31.8 m
0
12 m
2
LHM 320
Below quay 15 m
Post-Panamax Bulk Carrier

LHM 320
  1. P. 1

    Mobile Harbour Crane LH IVI 320
  2. P. 2

  3. P. 3

    Bulk operation Maximum crane capacity 1041 (1)OutreachHook operationon the ropesGrab OF4-rope grab>erationmotor grab(m)(t)(t)(t)10.511104.0104.052.052.070.070.01213104.0104.052.052.070.070.01415104.0104.052.052.070.070.01617104.0104.052.052.070.070.01819102.794.952.052.070.067.5202188.182.152.052.062.658.4222476.867.852.048.254.648.2262860.554.443.038.743.038.7303249.345.035.132.035.132.0343641.237.929.327.029.327.0384035.032.424.923.024.923.0424330.129.121.420.721.420.7 Weight...
  4. P. 4

    Main dimensionsContainer operationLoad diagram160140100on the ropes80general cargo60twin lift spreader4020single lift spreader0510LHM 3203453035Outreach...
  5. P. 5

    Container operation Maximum crane capacity 1041OutreachSpreaderuniSingle liftoperationáerTwin liftHook ofon theStandard>erationropesHeavy lift(m)(t)(t)(t)(t)10.51141.041.050.050.070.070.0104.0104.0121341.041.050.050.070.070.0104.0104.0141541.041.050.050.070.070.0104.0104.0161741.041.050.050.070.070.0104.0104.0181941.041.050.050.070.070.0102.794.9202141.041.050.050.070.070.088.182.1222441.041.050.050.070.067.876.867.8262841.041.046.240.160.554.460.554.4O...
  6. P. 6

    Undercarriage Mobility Outstanding mobility and manoeuvrability Curves at any possible radii and even slewing on the spot Modular propping...
  7. P. 7

    Technical data Capacity and Classification Capacity Classification Grab operation - < 36.5 t-A8 Grab operation - < 55 t-A6 Container-...
  8. P. 8

Text version
