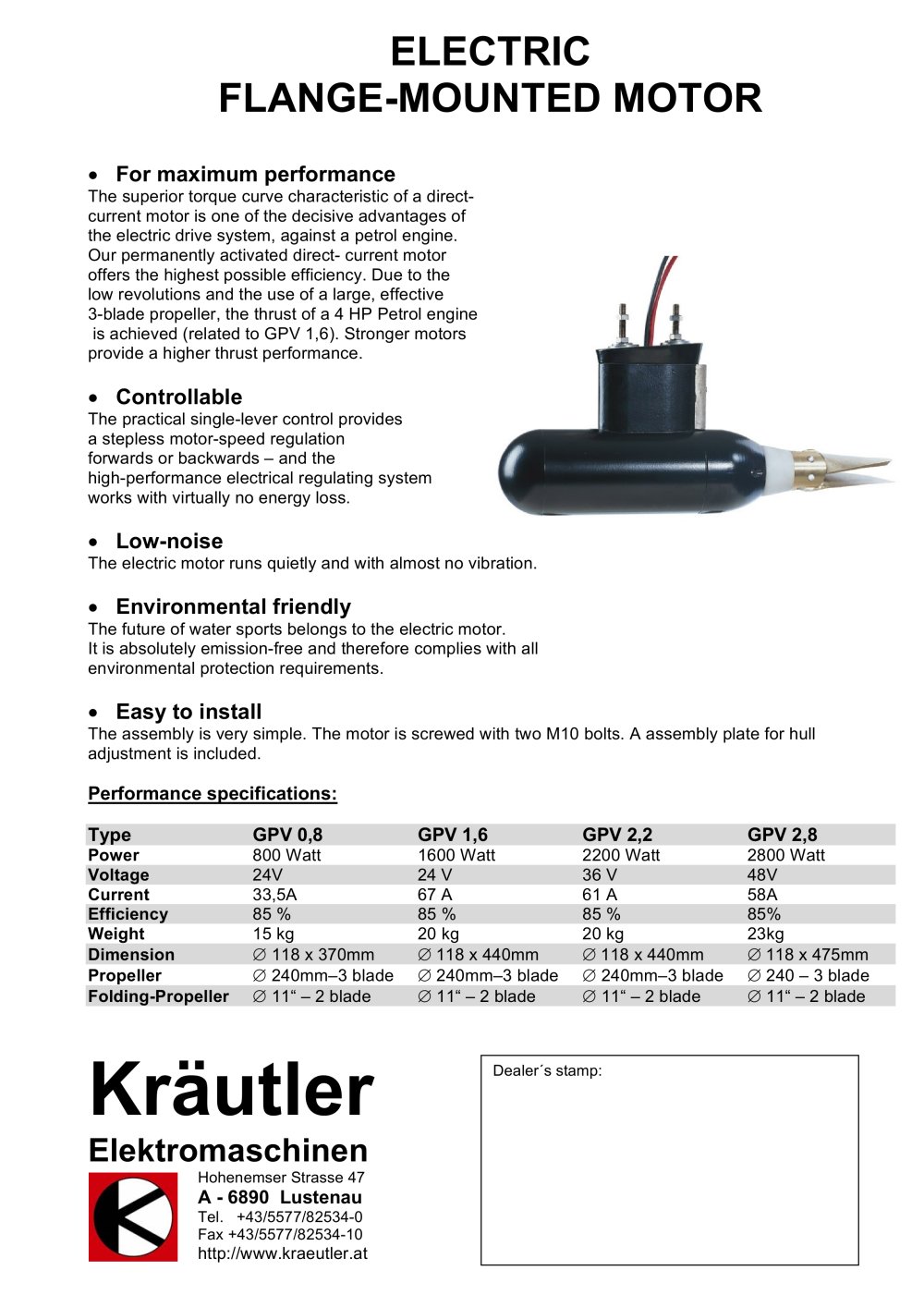

ELECTRIC FLANGE-MOUNTED MOTOR

• For maximum performance

The superior torque curve characteristic of a direct- current motor is one of the decisive advantages of the electric drive system, against a petrol engine. Our permanently activated direct- current motor offers the highest possible efficiency. Due to the low revolutions and the use of a large, effective 3-blade propeller, the thrust of a 4 HP Petrol engine is achieved (related to GPV 1,6). Stronger motors provide a higher thrust performance.

• Controllable

The practical single-lever control provides a stepless motor-speed regulation forwards or backwards – and the high-performance electrical regulating system works with virtually no energy loss.

• Low-noise

The electric motor runs quietly and with almost no vibration.

• Environmental friendly

The future of water sports belongs to the electric motor. It is absolutely emission-free and therefore complies with all environmental protection requirements.

• Easy to install

The assembly is very simple. The motor is screwed with two M10 bolts. A assembly plate for hull adjustment is included.

Performance specifications: Type GPV 0,8 GPV 1,6 GPV 2,2 GPV 2,8

Power 800 Watt 1600 Watt 2200 Watt 2800 Watt Voltage 24V 24 V 36 V 48V Current 33,5A 67 A 61 A 58A Efficiency 85 % 85 % 85 % 85% Weight 15 kg 20 kg 20 kg 23kg Dimension ∅ 118 x 370mm ∅ 118 x 440mm ∅ 118 x 440mm ∅ 118 x 475mm Propeller ∅ 240mm–3 blade ∅ 240mm–3 blade ∅ 240mm–3 blade ∅ 240 – 3 blade Folding-Propeller ∅ 11“ – 2 blade ∅ 11“ – 2 blade ∅ 11“ – 2 blade ∅ 11“ – 2 blade

Kräutler

Dealer´s stamp:

Elektromaschinen

Hohenemser Strasse 47

A - 6890 Lustenau

Tel. +43/5577/82534-0 Fax +43/5577/82534-10 http://www.kraeutler.at
