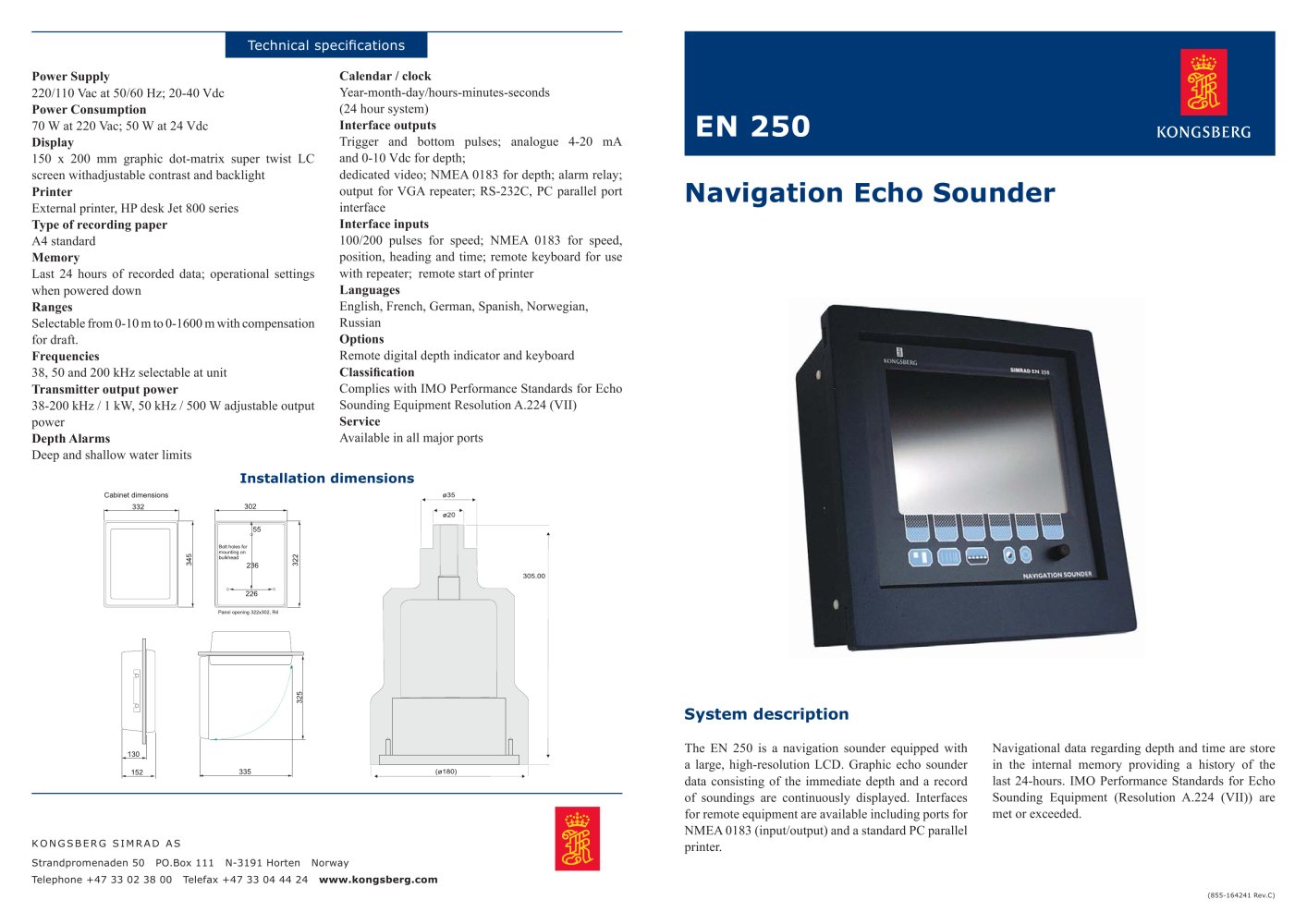

echo sounder for ships EN 250 - Kongsberg Maritime
P. 01
echo sounder for ships EN 250 - Kongsberg Maritime
P. 02
Pages:
echo sounder for ships EN 250 - Kongsberg Maritime


See other catalogues for Kongsberg Maritime

Text version of the page
Calendar / clock
Year-month-day/hours-minutes-seconds (24 hour system) Interface outputs
Trigger and bottom pulses; analogue 4-20 mA and 0-10 Vdc for depth;
dedicated video; NMEA 0183 for depth; alarm relay; output for VGA repeater; RS-232C, PC parallel port interface Interface inputs
100/200 pulses for speed; NMEA 0183 for speed, position, heading and time; remote keyboard for use with repeater; remote start of printer Languages
English, French, German, Spanish, Norwegian,
Russian
Options
Remote digital depth indicator and keyboard Classification
Complies with IMO Performance Standards for Echo Sounding Equipment Resolution A.224 (VII) Service
Available in all major ports
Power Supply
220/110 Vac at 50/60 Hz; 20-40 Vdc
Power Consumption
70 W at 220 Vac; 50 W at 24 Vdc
Display
150 x 200 mm graphic dot-matrix super twist LC screen withadjustable contrast and backlight Printer
External printer, HP desk Jet 800 series Type of recording paper A4 standard Memory
Last 24 hours of recorded data; operational settings
when powered down
Ranges
Selectable from 0-10mto0-1600m with compensation
for draft.
Frequencies
38, 50 and 200 kHz selectable at unit Transmitter output power
38-200 kHz / 1 kW, 50 kHz / 500 W adjustable output power
Depth Alarms
Deep and shallow water limits
Installation
EN 250
KONGSBERG
Navigation Echo Sounder
dimensions
Cabinet dimensions 332
035 02CT1
System description
The EN 250 is a navigation sounder equipped with a large, high-resolution LCD. Graphic echo sounder data consisting of the immediate depth and a record of soundings are continuously displayed. Interfaces for remote equipment are available including ports for NMEA 0183 (input/output) and a standard PC parallel printer.
Navigational data regarding depth and time are store in the internal memory providing a history of the last 24-hours. IMO Performance Standards for Echo Sounding Equipment (Resolution A.224 (VII)) are met or exceeded.
Ü
KO N GS BE RG SIM RAD AS
Strandpromenaden 50 PO.Box 111 N-3191 Horten Norway
Telephone +47 33 02 38 00 Telefax +47 33 04 44 24 www.kongsberg.com
