IC-M90
2Pages

{{requestButtons}}

Catalog excerpts

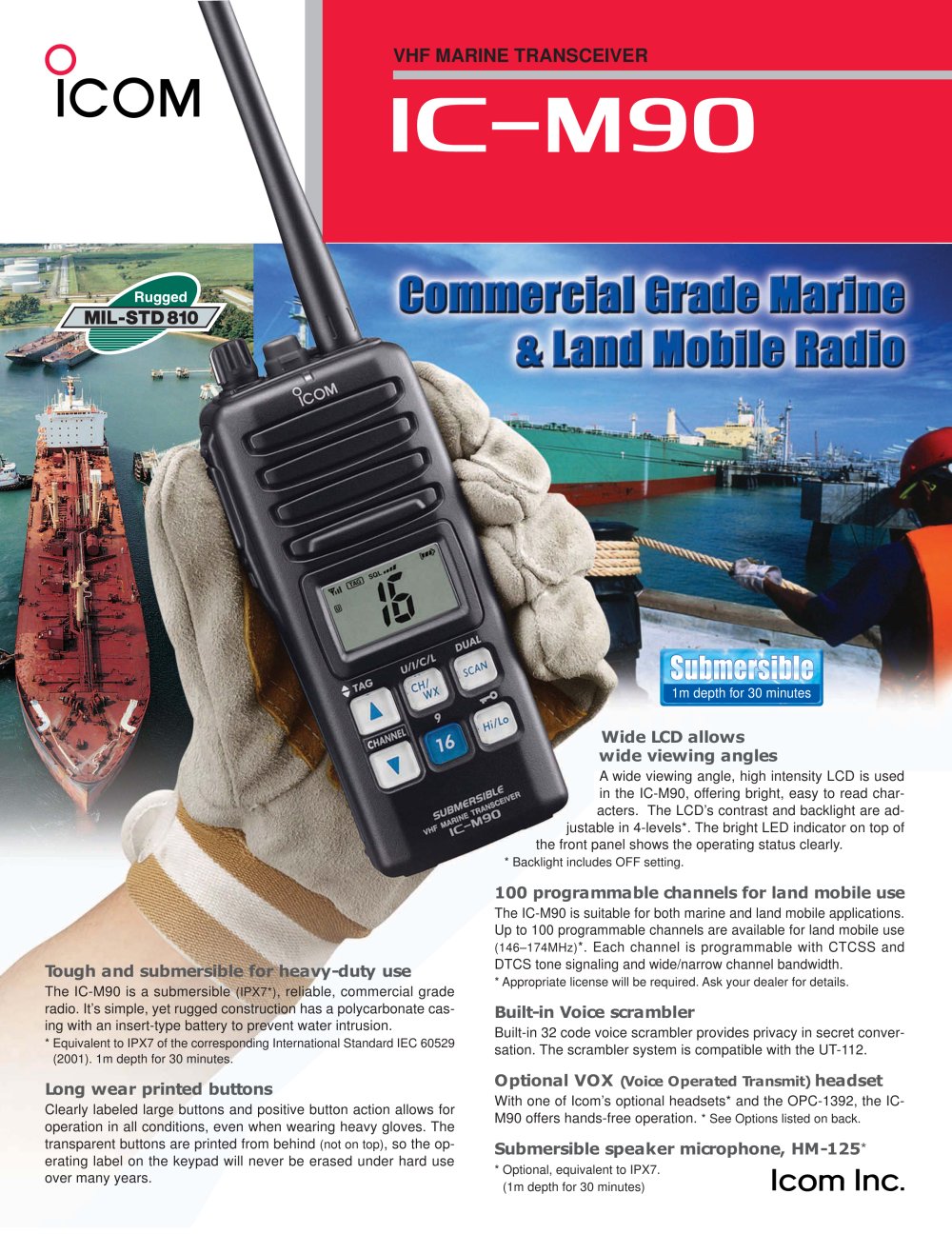

IC-M90 - 1

VHF MARINE TRANSCEIVER 1m depth for 30 minutes Wide LCD allows wide viewing angles A wide viewing angle, high intensity LCD is used in the IC-M90, offering bright, easy to read characters. The LCD’s contrast and backlight are adjustable in 4-levels*. The bright LED indicator on top of the front panel shows the operating status clearly. * Backlight includes OFF setting. 100 programmable channels for land mobile use Tough and submersible for heavy-duty use The IC-M90 is a submersible (IPX7*), reliable, commercial grade radio. It’s simple, yet rugged construction has a polycarbonate casing with an insert-type battery to prevent water intrusion. * Equivalent to IPX7 of the corresponding International Standard IEC 60529 (2001). 1m depth for 30 minutes. Long wear printed buttons Clearly labeled large buttons and positive button action allows for operation in all conditions, even when wearing heavy gloves. The transparent buttons are printed from behind (not on top), so the operating label on the keypad will never be erased under hard use over many years. The IC-M90 is suitable for both marine and land mobile applications. Up to 100 programmable channels are available for land mobile use (146–174MHz)*. Each channel is programmable with CTCSS and DTCS tone signaling and wide/narrow channel bandwidth. * Appropriate license will be required. Ask your dealer for details. Built-in Voice scrambler Built-in 32 code voice scrambler provides privacy in secret conversation. The scrambler system is compatible with the UT-112. Optional VOX (Voice Operated Transmit) headset With one of Icom’s optional headsets* and the OPC-1392, the ICM90 offers hands-free operation. * See Options listed on back. Submersible speaker microphone, HM-125* * Optional, equivalent to IPX7. (1m depth for 30 minutes)

Open the catalog to page 1
IC-M90 - 2

VHF MARINE TRANSCEIVER Additional features • Auto WX scan and WX Alert function • Instant access to Ch. 16 and Ch. 9 (or call channel) • Simple add/delete TAG scanning operation • Monitor button and squelch shift function • Automatic scan function • 2 step power saver • Battery indicator shows remaining battery power in 4 levels • Beep sound is programmable for each button SPECIFICATIONS GENERAL • Frequency range Marine Tx Rx LMR Tx/Rx • Usable channels TRANSMITTER : 156.025–157.425MHz 156.050–163.275MHz 146.000–174.000MHz : USA, INT, CAN, WX channels; 100 programmable channels • Channel...

Open the catalog to page 2
