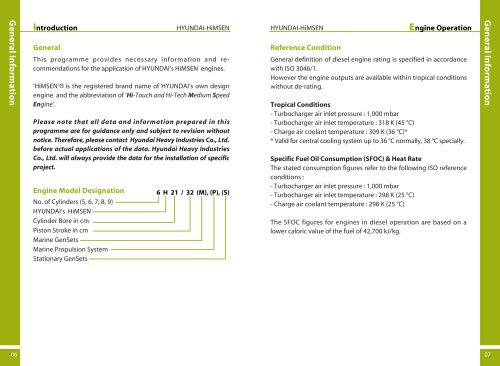

HiMSEN Engine - 4 / 34 Pages

ntroduction

HYUNDAI-HiMSEN

General

This programme provides necessary information and re-

commendations for the application of HYUNDAI'S HiMSEN engines.

'HiMSEN'® is the registered brand name of HYUNDAI'S own design

engine and the abbreviation of 'Hi-Touch and Hi-Tech Medium Speed

Engine'.

Please note that all data and information prepared in this

programme are for guidance only and subject to revision without

notice. Therefore, please contact Hyundai Heavy Industries Co., Ltd.

before actual applications of the data. Hyundai Heavy Industries

Co., Ltd. will always provide the data for the installation of specific

project.

6 H 21 / 32 (M), (P),(S)

No. of Cylinders (5,6, 7,8,9) -

HYUNDAI'S HiMSEN —

Cylinder Bore in cm _

Piston Stroke in cm -

Marine Gen Sets —

Marine Propulsion System —

Stationary Gen Sets —

HYUNDAI-HiMSEN

nqine Operation

Reference Condition

General definition of diesel engine rating is specified in accordance

with ISO 3046/1.

However the engine outputs are available within tropical conditions

without de-rating.

Tropical Conditions

- Turbocharger air inlet pressure : 1,000 mbar

-Turbocharger air inlet temperature : 318 K (45 °C)

- Charge air coolant temperature : 309 K (36 °C)*

* Valid for central cooling system up to 36 °C normally, 38 °C specially.

Specific Fuel Oil Consumption (SFOC) & Heat Rate

The stated consumption figures refer to the following ISO reference

conditions :

- Turbocharger air inlet pressure : 1,000 mbar

- Turbocharger air inlet temperature : 298 K (25 °C)

- Charge air coolant temperature : 298 K (25 °C)

The SFOC figures for engines in diesel operation are based on a

lower caloric value of the fuel of 42,700 kJ/kg.
