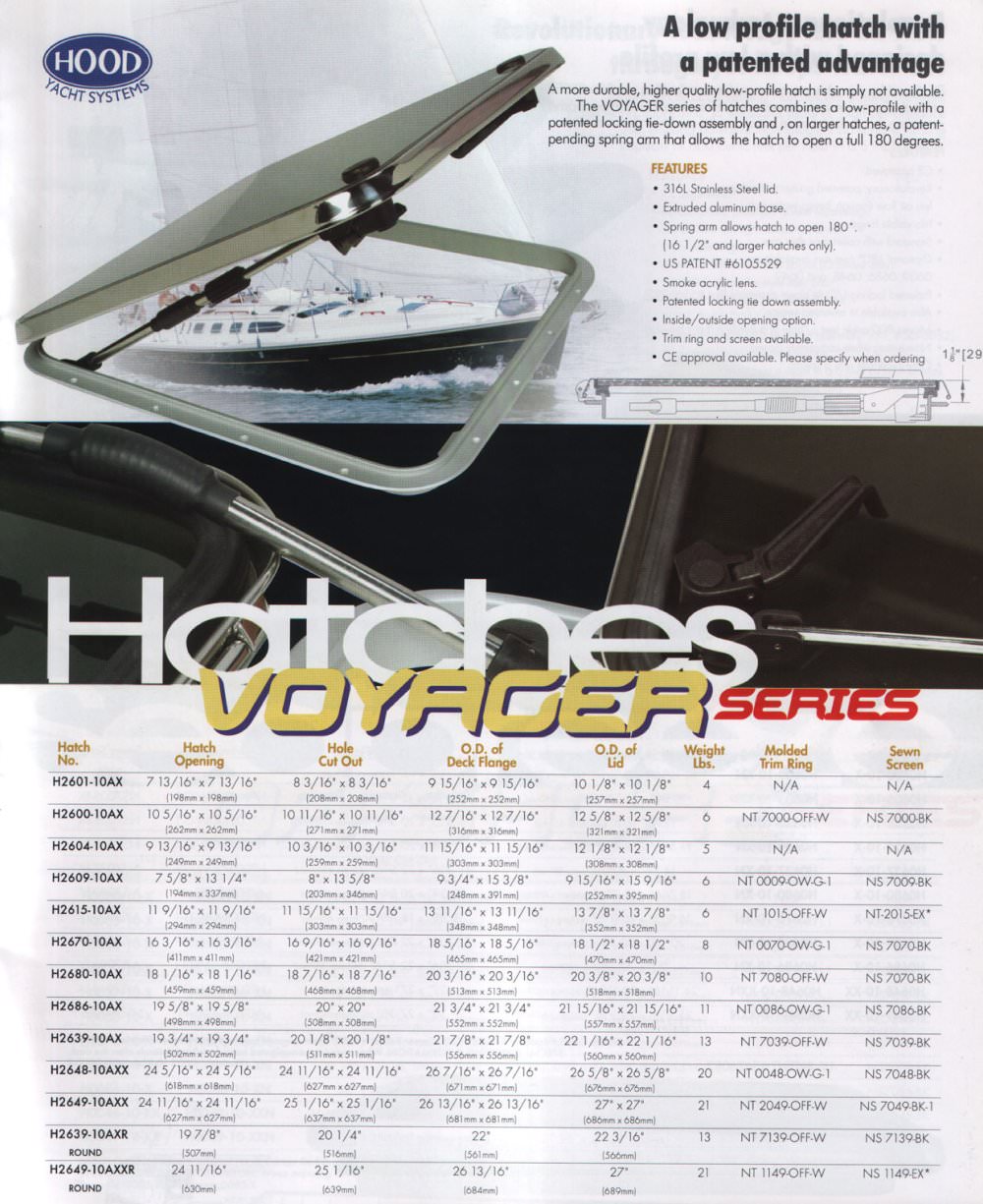

| | Hatch No. | Hatch Opening | Hole Cut Out | O.D. of Deck Flange | O.D. of Lid | Weight Lbs. | Molded Trim Ring | Sewn Screen | |
| | H2601-10AX | 7 13/16" x 7 13/16" 1198mm x 198mm) | 8 3/16" x 8 3/16' (208mm x 208mm) | 9 15/16'x 9 15/16" (252mm x 252mm) | 10 1/8" x 10 1/8' (257mm x 257mm) | 4 | N/A | N/A | |
| | H2600-10AX | 10 5/16" X 10 5/16' (262mm x 262mm) | 10 11/16" x 10 11/16' (271mmx271mm) | 12 7/16'x 12 7/16' (3)6mmx3l6mm) | 12 5/8'x 12 5/8" |321 mm x 321mm) | 6 | NT 7000-OFF.W | NS 7000-BK | |
| | H2604-10AX | 9 13/16" x 9 13/16" {249mm x 249mm) | 10 3/16' x 10 3/16' (259mm « 259mm) | 11 15/16'x 11 15/16" (303mm x 303mm) | 12 1/8" x 12 1/8' (308mm x 308mm) | 5 | N/A | N/A | |
| | H2609-10AX | 7 5/8'x 13 1/4' (194mm x 337mm) | 8'x 13 5/8" (203mm x 346mm) | 9 3/4'x 15 3/8' |248mm x 391 mm) | 9 15/16" X 15 9/16' (252mm x 395mm) | 6 | NT0009OW-G-1 | NS 7009 BK | |
| | H2615-10AX | 11 9/16" x 11 9/16" (294mm x 294mm) | »1 15/16" x 11 15/16' (303mm x 303mm) | 13 11/16" x 13 11/16" (348mm x 348mm) | 13 7/8'x 13 7/8" (352mm x 352mm) | 6 | NT 1015OFF-W | NT-2015-EX* | |
| | H2670-10AX | 16 3/16'x 16 3/16" (411mm«4ttmmJ | 16 9/16'x 16 9/16" (421mm x 421mm) | 18 5/16'x 18 5/16' (465mm x 465mm) | 18 1/2'x 18 1/2" (470mm x 470mm) | 8 | NT 0070OW-O-1 | NS 707OBK | |
| | H2680-10AX | 18 1/16" x 18 1/16" (459mm x 459mm) | 18 7/16'x 18 7/16" (468mm x 468mm) | 20 3/16'X 20 3/16' (513mm x513mm| | 20 3/8 "x 20 3/8' (518mm x 518mm) | »0 | NT 7080OFF-W | NS 707CX6K | |
| | H2686-10AX | 19 5/8'x 195/8' (498mm x498mm( | 20" x 20" (508mm . 508mm] | 21 3/4' x 21 3/4' (552mm x 552mm) | 21 15/16" x 21 15/16" (557mm x 557mm) | 11 | NT 0086OW-G-1 | NS 7086BK | |
| | H2639-10AX | 19 3/4'x 19 3/4' (502mm x 502mm) | 20 1/8" x 20 1/8" {SMrnnx5Hmm) | 2» 7/8" x 21 7/8' (556mm x 556mm) | 22 1/16" x 22 1/16" (560mm x 560mm) | 13 | NT 7039-OFF-W | NS 7039-BK | |
| | H2648-10AXX | 24 5/16" x 24 5/16" (618mm » 618mm} | 24 11/16" x 24 11/16" (627mm x 627mm) | 26 7/16'x 26 7/16" (671 mm x 671 mm) | 26 5/8'x 26 5/8" (676mm x 676mm) | 20 | NT0048-OW-G-1 | NS 7048-BK | |
| | H2649-10AXX | 24 11/16" x 24 11/16' |627mm x 627mm) | 25 1/16" x 25 1/16' (637mm x 637mm) | 26 13/16" x 26 13/16' (681 mm * 681mm) | 27' x 27' (686mm x 686mm) | 21 | NT 2049-OFF-W | NS7049-BK-1 | |
| | H2639-10AXR | 19 7/8" | 20 1/4' | 22" | 22 3/16" | 13 | NT71390FF-W | NS 7139-BK | |
| | ROUND | (507mm) | (516mm) | (561 mm) | (566mm) | | | | |
| | H2649-10AXXR | 24 11/16' | 25 1/16" | 26 13/16" | 27" | 21 | NT 11490FF-W | NS 1149-€X# | |
| | ROUND | (630mm) | (639mm) | (684mm) | (689mm) | | | | |
| | | | | | | | | | |
