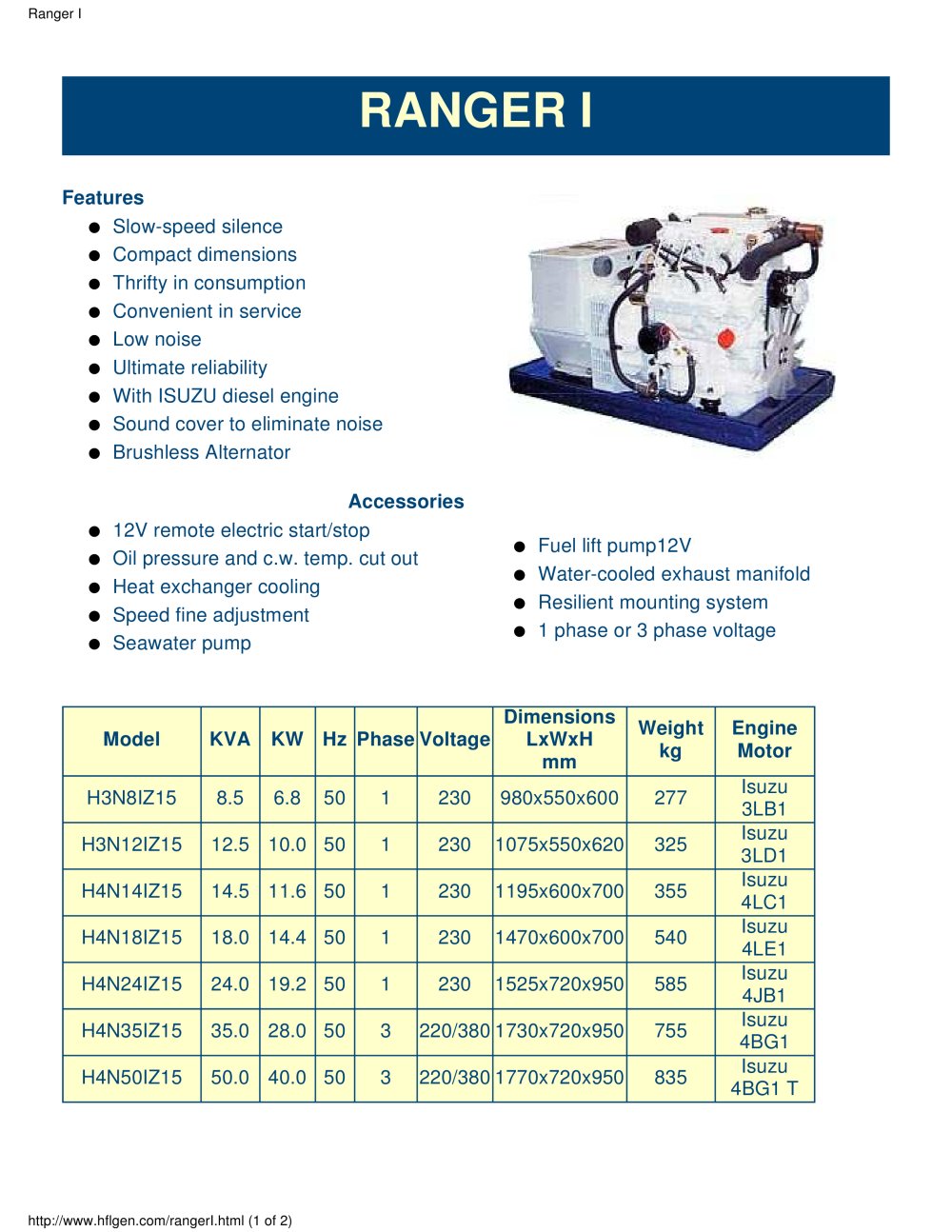

Ranger I RANGER I Features q Slow-speed silence q Compact dimensions q Thrifty in consumption q Convenient in service q Low noise q Ultimate reliability q With ISUZU diesel engine q Sound cover to eliminate noise q Brushless Alternator q q q q q Accessories 12V remote electric start/stop Oil pressure and c.w. temp. cut out Heat exchanger cooling Speed fine adjustment Seawater pump q q q q Fuel lift pump12V Water-cooled exhaust manifold Resilient mounting system 1 phase or 3 phase voltage KW Hz Phase Voltage Dimensions LxWxH mm Weight kg 6.8 230 980x550x600 277 1 230 1075x550x620 325 14.5 11.6 50 1 230 1195x600x700 355 H4N18IZ15 18.0 14.4 50 1 230 1470x600x700 540 H4N24IZ15 24.0 19.2 50 1 230 1525x720x950 585 H4N35IZ15 35.0 28.0 50 3 220/380 1730x720x950 755 H4N50IZ15 50.0 40.0 50 3 220/380 1770x720x950 835 Model KVA H3N8IZ15 8.5 50 1 H3N12IZ15 12.5 10.0 50 H4N14IZ15 http://www.hflgen.com/rangerI.html (1 of 2) Engine Motor Isuzu 3LB1 Isuzu 3LD1 Isuzu 4LC1 Isuzu 4LE1 Isuzu 4JB1 Isuzu 4BG1 Isuzu 4BG1 T
