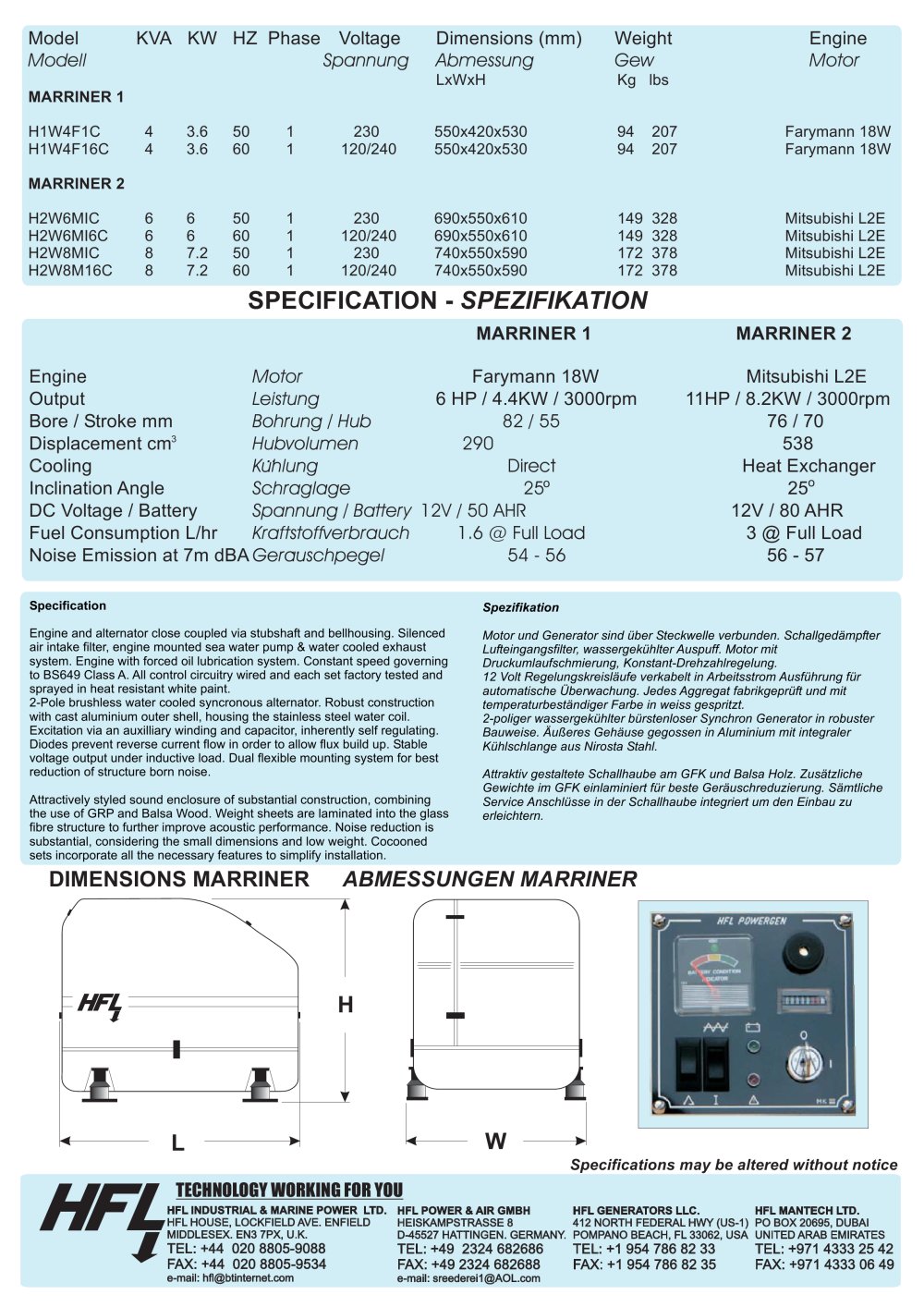

Marriner Series - HFL - #1

Text version of the page

Model

Modell

MARRINER 1

H1W4F1C

H1W4F16C

MARRINER 2

H2W6MIC

H2W6MI6C

H2W8MIC

H2W8M16C

KVA KW HZ Phase Voltage

Spannung

4

4

7.2

7.2

50

60

50

60

50

60

230

120/240

230

120/240

230

120/240

Dimensions (mm) Weight

Abmessung Gew

LxWxH Kg lbs

550x420x530 94 207

550x420x530 94 207

690x550x610 149 328

690x550x610 149 328

740x550x590 172 378

740x550x590 172 378

SPECIFICATION - SPEZIFIKATION

MARRINER 1

Engine

Motor

Farymann 18W

Farymann 18W

Mitsubishi L2E

Mitsubishi L2E

Mitsubishi L2E

Mitsubishi L2E

MARRINER 2

Engine

Output

Bore / Stroke mm

Displacement cm3

Cooling

Inclination Angle

DC Voltage / Battery

Fuel Consumption L/hr

Motor

Leistung

Bohrung I Hub

Hubvolumen

Kuhlung

Schraglage

Farymann 18W

6 HP/4.4KW/3000rpm

82/55

290

Direct

25°

Spannung I Battery 12V / 50 AHR

Kraftstoflverbrauch 1.6 @ Full Load

Noise Emission at 7m dBAGerauschpegel

54-56

Mitsubishi L2E

11HP/8.2KW/3000rpm

76/70

538

Heat Exchanger

25°

12V/80 AHR

3 @ Full Load

56-57

Specification

Spezifikation

Engine and alternator close coupled via stubshaft and bellhousing. Silenced

air intake filter, engine mounted sea water pump & water cooled exhaust

system. Engine with forced oil lubrication system. Constant speed governing

to BS649 Class A. All control circuitry wired and each set factory tested and

sprayed in heat resistant white paint.

2-Pole brushless water cooled syncronous alternator. Robust construction

with cast aluminium outer shell, housing the stainless steel water coil.

Excitation via an auxilliary winding and capacitor, inherently self regulating.

Diodes prevent reverse current flow in order to allow flux build up. Stable

voltage output under inductive load. Dual flexible mounting system for best

reduction of structure born noise.

Attractively styled sound enclosure of substantial construction, combining

the use of GRP and Balsa Wood. Weight sheets are laminated into the glass

fibre structure to further improve acoustic performance. Noise reduction is

substantial, considering the small dimensions and low weight. Cocooned

sets incorporate all the necessary features to simplify installation.

Motor und Generator sind über Steckwelle verbunden. Schallgedámpfter

Lufteingangsfilter, wassergekühlter Auspuff. Motor mit

Druckumlaufschmierung, Konstant-Drehzahlregelung.

12 Volt Regelungskreislàufe verkabelt in Arbeitsstrom Ausführung für

automatische Überwachung. Jedes Aggregai fabrikgeprüft und mit

temperaturbestàndiger Farbe in weiss gespritzt.

2-poliger wassergekühlter bürstenloser Synchron Generator in robuster

Bauweise. Auüeres Gehâuse gegossen in Aluminium mit integraler

Kühlschlange aus Nirosta Stahl.

Attraktiv gestaltete Schallhaube am GFK und Balsa Holz. Zusàtzliche

Gewichte im GFK einlaminiert für beste Geràuschreduzierung. Sàmtliche

Service Anschlüsse in der Schallhaube integriert um den Einbau zu

erleichtern.

DIMENSIONS MARRINER ABMESSUNGEN MARRINER

H

W

HFL

Specifications may be altered without notice

TECHNOLOGY WORKING FOB YOU

HFL INDUSTRIAL & MARINE POWER LTD. HFL POWER & AIR GMBH

HFL HOUSE, LOCKFIELD AVE. ENFIELD

MIDDLESEX. EN3 7PX, U.K.

TEL: +44 020 8805-9088

FAX: +44 020 8805-9534

e-mail: hfl@btinternet.com

HFL GENERATORS LLC. HFL MANTECH LTD.

HEISKAMPSTRASSE 8 412 NORTH FEDERAL HWY (US-1) PO BOX 20695, DUBAI

D-45527 HATTINGEN. GERMANY. POMPANO BEACH, FL 33062, USA UNITED ARAB EMIRATES

TEL: +49 2324 682686 TEL: +1 954 786 82 33 TEL: +971 4333 25 42

FAX: +49 2324 682688 FAX: +1 954 786 82 35 FAX: +971 4333 06 49

e-mail: sreederei1@AOL.com
