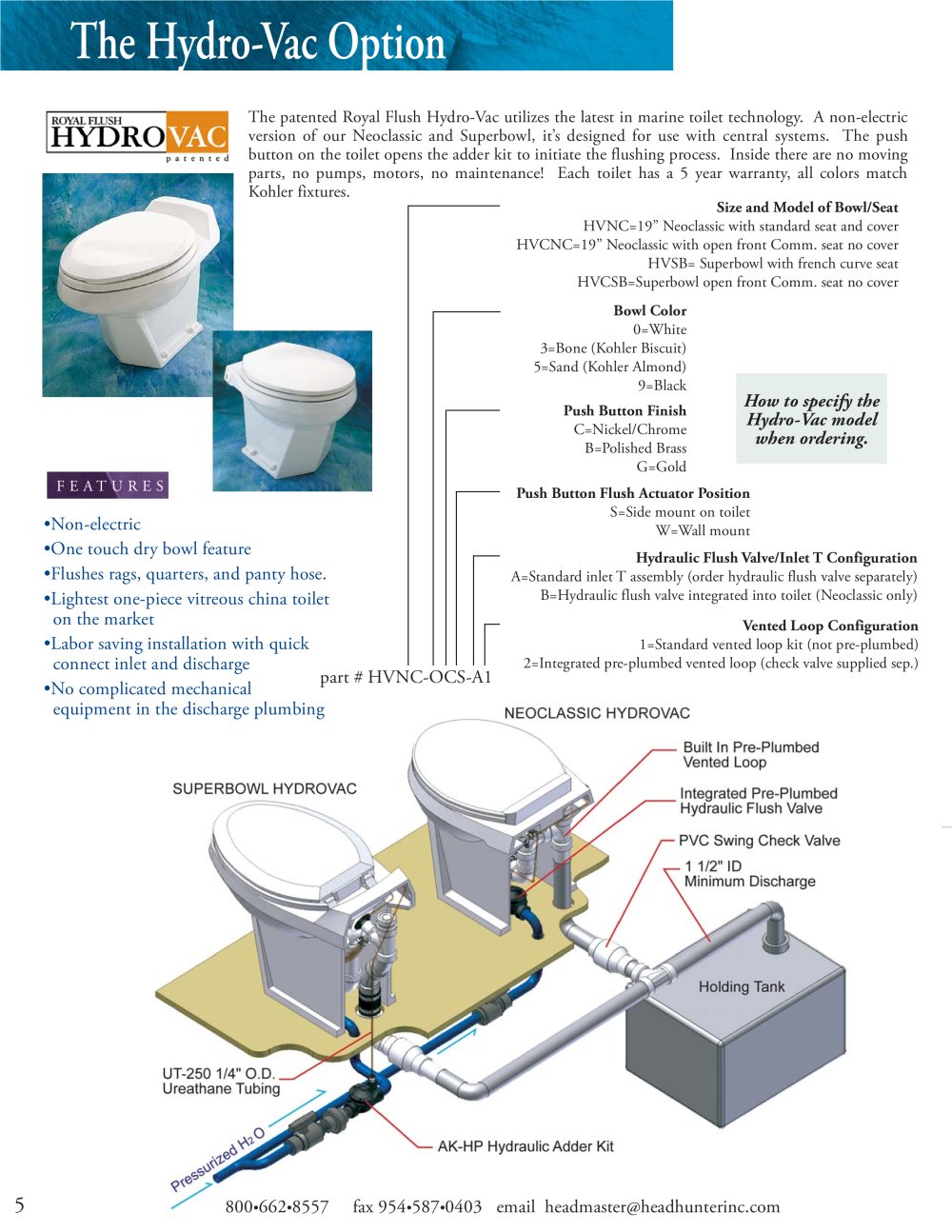

The Hydro-Vac Option

The patented Royal Flush Hydro-Vac utilizes the latest in marine toilet technology. A non-electric version of our Neoclassic and Superbowl, it's designed for use with central systems. The push button on the boat toilet opens the adder kit to initiate the flushing process. Inside there are no moving parts, no pumps, motors, no maintenance! Each toilet has a 5 year warranty, all colors match Kohler fixtures.

- Size and Model of Bowl/Seat

HVNC=19" Neoclassic with standard seat and cover HVCNC=19" Neoclassic with open front Comm. seat no cover HVSB= Superbowl with french curve seat HVCSB=Superbowl open front Comm. seat no cover

Bowl Color 0=White 3=Bone (Kohler Biscuit) 5=Sand (Kohler Almond)

9=Black

Push Button Finish

C=Nickel/Chrome B=Polished Brass G=Gold

How to specify the Hydro-Vac model when ordering.

FEATURES

Push Button Flush Actuator Position

S=Side mount on toilet W=Wall mount

Hydraulic Flush Valve/Inlet T Configuration

A=Standard inlet T assembly (order hydraulic flush valve separately) B=Hydraulic flush valve integrated into toilet (Neoclassic only)

Vented Loop Configuration

1=Standard vented loop kit (not pre-plumbed) 2=Integrated pre-plumbed vented loop (check valve supplied sep.)

•Non-electric

•One touch dry bowl feature •Flushes rags, quarters, and panty hose.

•Lightest one-piece vitreous china toilet

on the market

•Labor saving installation with quick connect inlet and discharge

part # HVNC-OCS-A1

•No complicated mechanical equipment in the discharge plumbing

NEOCLASSIC HYDROVAC

Built In Pre-Plumbed Vented Loop

Integrated Pre-Plumbed Hydraulic Flush Valve

PVC Swing Check Valve

SUPERBOWL HYDROVAC

800-662.8557 fax 954-587-0403 email headmaster@headhunterinc.com
