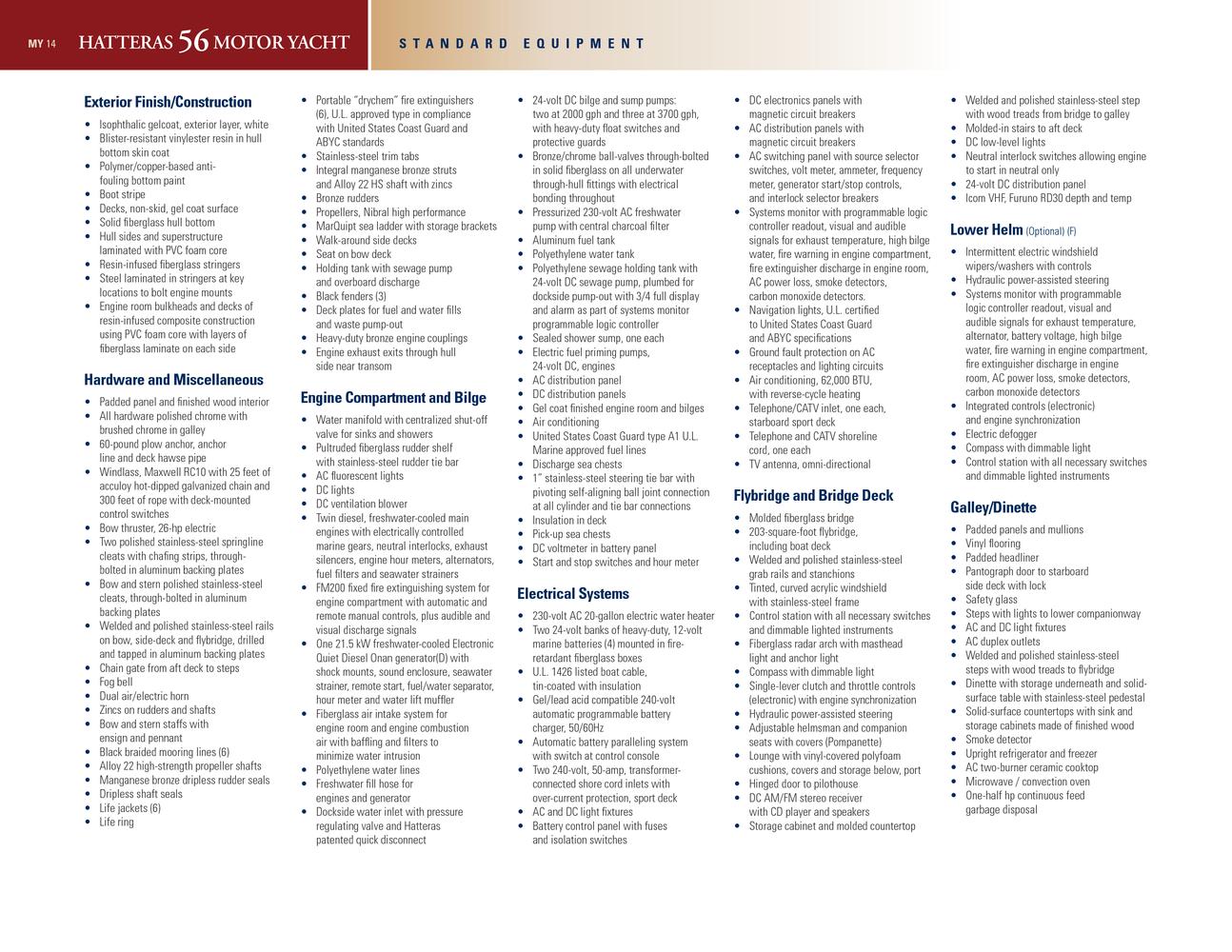

MY 14 HATTERAS
56
STANDARD EQUIPMENT
Exterior Finish/Construction
• Isophthalic gelcoat, exterior layer, white• Blister-resistant vinylester resin in hull bottom skin coat• Polymer/copper-based
anti fouling bottom paint• Boot stripe• Decks, non-skid, gel coat surface• Solid fiberglass hull bottom• Hull sides and superstructure laminated with PVC foam core• Resin-infused fiberglass stringers• Steel laminated in stringers at key locations to bolt engine mounts• Engine room bulkheads and decks of resin-infused composite construction using PVC foam core with layers of fiberglass laminate on each side
Lower Helm
(Optional) (F) • Intermittent electric windshield wipers/washers with controls• Hydraulic power-assisted steering• Systems monitor with programmable logic controller readout, visual and audible signals for exhaust temperature, alternator, battery voltage, high bilge water, fire warning in engine compartment, fire extinguisher discharge in engine room, AC power loss, smoke detectors, carbon monoxide detectors• Integrated controls (electronic) and engine synchronization• Electric defogger• Compass with dimmable light• Control station with all necessary switches and dimmable lighted instruments
Hardware and Miscellaneous
• Padded panel and finished wood interior• All hardware polished chrome with brushed chrome in galley• 60-pound plow anchor, anchor line and deck hawse pipe•
Windlass, Maxwell RC10 with 25 feet of acculoy hot-dipped galvanized chain and 300 feet of
boat rope with deck-mounted control switches•
Bow thruster, 26-hp electric• Two polished stainless-steel springline cleats with chafing strips, through- bolted in aluminum backing plates• Bow and stern polished stainless-steel cleats, through-bolted in aluminum backing plates• Welded and polished stainless-steel rails on bow, side-deck and flybridge, drilled and tapped in aluminum backing plates• Chain gate from aft deck to steps•
Fog bell• Dual air/electric horn• Zincs on rudders and shafts• Bow and stern staffs with ensign and pennant • Black braided
mooring lines (6)• Alloy 22 high-strength
propeller shafts• Manganese bronze dripless rudder seals• Dripless shaft seals•
Life jackets (6)• Life ring
• 24-volt DC bilge and sump pumps: two at 2000 gph and three at 3700 gph, with heavy-duty float switches and protective guards • Bronze/chrome ball-valves through-bolted in solid fiberglass on all
underwater through hull fittings with electrical bonding throughout• Pressurized 230-volt AC freshwater pump with central charcoal filter • Aluminum fuel tank• Polyethylene water tank• Polyethylene sewage holding tank with 24-volt DC sewage pump, plumbed for dockside pump-out with 3/4 full display and alarm as part of systems monitor programmable logic controller• Sealed shower sump, one each• Electric fuel priming pumps, 24-volt DC, engines • AC distribution panel• DC distribution panels • Gel coat finished engine room and bilges• Air conditioning• United States Coast Guard type A1 U.L. Marine approved fuel lines• Discharge sea chests• 1” stainless-steel steering tie bar with pivoting self-aligning ball joint connection at all cylinder and tie bar connections• Insulation in deck• Pick-up sea chests• DC voltmeter in battery panel• Start and stop switches and hour meter
Engine Compartment and Bilge
• Water manifold with centralized shut-off valve for sinks and showers• Pultruded fiberglass rudder shelf with stainless-steel rudder tie bar• AC fluorescent lights• DC lights• DC ventilation blower• Twin diesel, freshwater-cooled main engines with electrically controlled marine gears, neutral interlocks, exhaust silencers, engine hour meters, alternators, fuel filters and seawater strainers• FM200 fixed fire extinguishing system for engine compartment with automatic and remote manual controls, plus audible and visual discharge signals• One 21.5 kW freshwater-cooled Electronic Quiet Diesel Onan
marine generator(D) with shock mounts, sound enclosure, seawater strainer, remote start, fuel/water separator, hour meter and water lift muffler • Fiberglass air intake system for engine room and engine combustion air with baffling and filters to minimize water intrusion• Polyethylene water lines• Freshwater fill hose for engines and generator• Dockside water inlet with pressure regulating valve and Hatteras patented quick disconnect
Flybridge and Bridge Deck
• Molded fiberglass bridge• 203-square-foot flybridge, including boat deck• Welded and polished stainless-steel grab rails and stanchions• Tinted, curved acrylic windshield with stainless-steel frame• Control station with all necessary switches and dimmable lighted instruments• Fiberglass radar arch with
masthead light and
anchor light• Compass with dimmable light• Single-lever clutch and throttle controls (electronic) with engine synchronization• Hydraulic power-assisted steering• Adjustable helmsman and companion seats with covers (Pompanette)• Lounge with vinyl-covered polyfoam cushions, covers and storage below, port• Hinged door to pilothouse• DC AM/FM stereo receiver with CD player and speakers• Storage cabinet and molded countertop
• Welded and polished stainless-steel step with wood treads from bridge to galley• Molded-in stairs to aft deck• DC low-level lights• Neutral interlock switches allowing engine to start in neutral only• 24-volt DC distribution panel• Icom
MARINE VHF, Furuno RD30 depth and temp
Galley/Dinette
• Padded panels and mullions• Vinyl flooring• Padded headliner• Pantograph door to starboard side deck with lock• Safety glass• Steps with lights to lower companionway• AC and DC light fixtures• AC duplex outlets• Welded and polished stainless-steel steps with wood treads to flybridge• Dinette with storage underneath and solid-surface table with stainless-steel
marine pedestal• Solid-surface countertops with sink and storage cabinets made of finished wood• Smoke detector• Upright refrigerator and freezer• AC two-burner ceramic cooktop• Microwave / convection oven• One-half hp continuous feed garbage disposal
• Portable “drychem” fire extinguishers (6), U.L. approved type in compliance with United States Coast Guard and ABYC standards• Stainless-steel trim tabs• Integral manganese bronze struts and Alloy 22 HS shaft with zincs• Bronze rudders• Propellers, Nibral high performance• MarQuipt sea ladder with storage brackets• Walk-around side decks• Seat on bow deck• Holding tank with sewage pump and overboard discharge• Black fenders (3)• Deck plates for fuel and water fills and waste pump-out• Heavy-duty bronze engine couplings• Engine exhaust exits through hull side near transom
Electrical Systems
• 230-volt AC 20-gallon electric water heater• Two 24-volt banks of heavy-duty, 12-volt
marine batteries (4) mounted in fire-
retardant fiberglass boxes • U.L. 1426 listed boat cable, tin-coated with insulation• Gel/lead acid compatible 240-volt automatic programmable battery
marine charger, 50/60Hz• Automatic battery paralleling system with switch at control console• Two 240-volt, 50-amp, transformer-connected shore cord inlets with over-current protection, sport deck• AC and DC light fixtures• Battery control panel with fuses and isolation switches
• DC electronics panels with magnetic circuit breakers• AC distribution panels with magnetic circuit breakers• AC switching panel with source selector switches, volt meter, ammeter, frequency meter, generator start/stop controls, and interlock selector breakers• Systems monitor with programmable logic controller readout, visual and audible signals for exhaust temperature, high bilge water, fire warning in engine compartment, fire extinguisher discharge in engine room, AC power loss, smoke detectors, carbon monoxide detectors.•
Navigation lights, U.L. certified to United States Coast Guard and ABYC specifications• Ground fault protection on AC receptacles and lighting circuits• Air conditioning, 62,000 BTU, with reverse-cycle heating• Telephone/CATV inlet, one each, starboard sport deck• Telephone and CATV shoreline cord, one each •
Marine tv antenna, omni-directional
