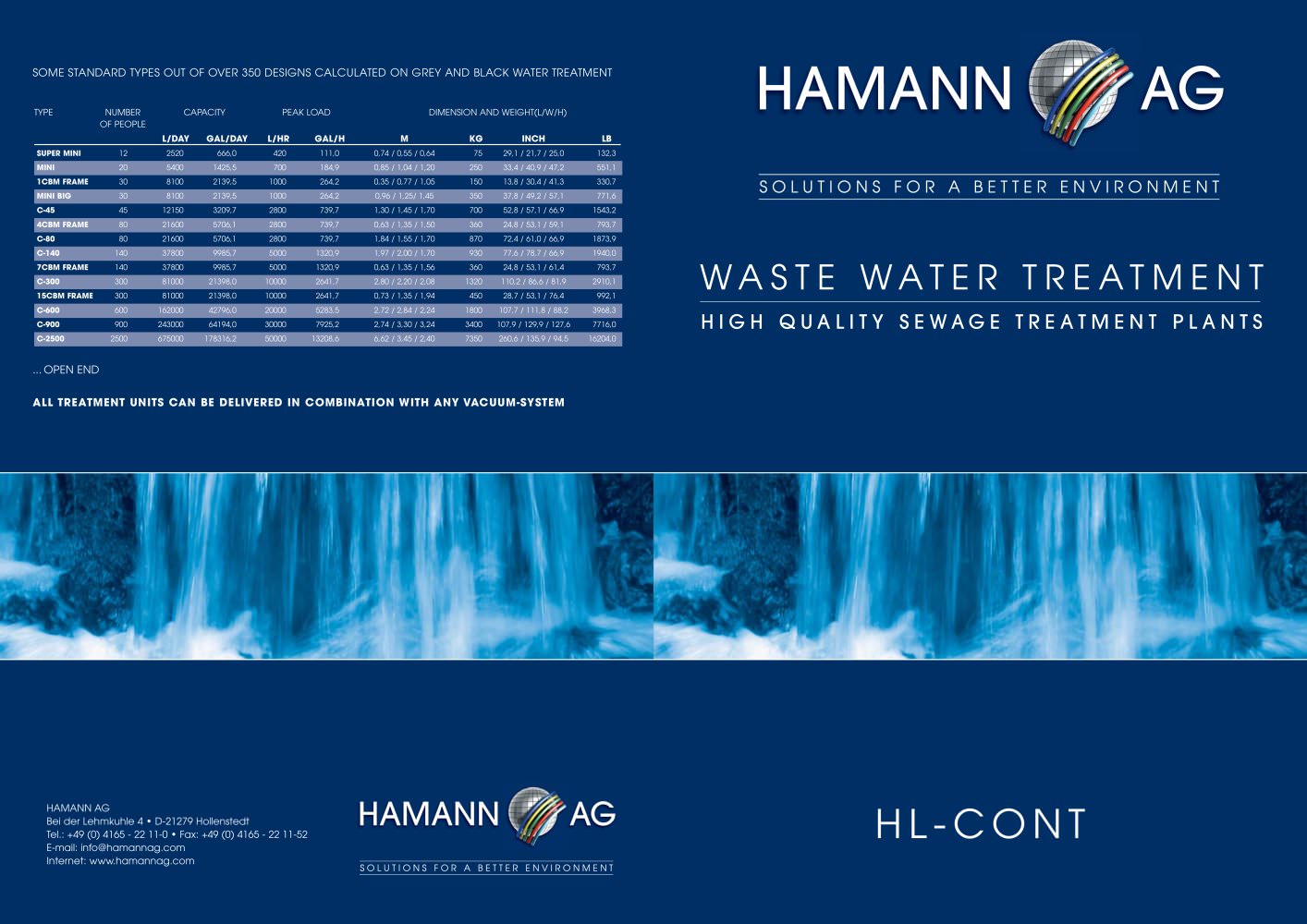

SOME STANDARD TYPES OUT OF OVER 350 DESIGNS CALCULATED ON GREY AND BLACK WATER TREATMENT ...OPEN END

TYPENUMBEROF PEOPLE CAPACITY DIMENSION AND WEIGHT(L/W/H)PEAK LOAD L/DAYGAL/DAYL/HRGAL/HMKGINCHLB

SUPER MINI 122520666,0420111,00,74 / 0,55 / 0,647529,1 / 21,7 / 25,0132,3 MINI 2054001425,5700184,90,85 / 1,04 / 1,2025033,4 / 40,9 / 47,2551,1 1CBM FRAME 3081002139,51000264,20,35 / 0,77 / 1,0515013,8 / 30,4 / 41,3330,7 MINI BIG 3081002139,51000264,20,96 / 1,25/ 1,4535037,8 / 49,2 / 57,1771,6 C-45 45121503209,72800739,71,30 / 1,45 / 1,7070052,8 / 57,1 / 66,91543,2 4CBM FRAME 80216005706,12800739,70,63 / 1,35 / 1,5036024,8 / 53,1 / 59,1793,7 C-80 80216005706,12800739,71,84 / 1,55 / 1,7087072,4 / 61,0 / 66,91873,9 C-140 140378009985,750001320,91,97 / 2,00 / 1,7093077,6 / 78,7 / 66,91940,0 7CBM FRAME 140378009985,750001320,90,63 / 1,35 / 1,5636024,8 / 53,1 / 61,4793,7 C-300 3008100021398,0100002641,72,80 / 2,20 / 2,081320110,2 / 86,6 / 81,92910,1 15CBM FRAME 3008100021398,0100002641,70,73 / 1,35 / 1,9445028,7 / 53,1 / 76,4992,1 C-600 60016200042796,0200005283,52,72 / 2,84 / 2,241800107,7 / 111,8 / 88,23968,3

HL-CONT Brochure - 27588 WASTE WATER TREATMENT

C-900 90024300064194,0300007925,22,74 / 3,30 / 3,243400107,9 / 129,9 / 127,67716,0 C-2500 2500675000178316,25000013208,66,62 / 3,45 / 2,407350260,6 / 135,9 / 94,516204,0

HIGH QUALITY SEWAGE TREATMENT PLANTS

ALL TREATMENT UNITS CAN BE DELIVERED IN COMBINATION WITH ANY VACUUM-SYSTEM

HAMANNAGBei der Lehmkuhle 4 • D-21279 HollenstedtTel.: +49 (0) 4165 - 22 11-0 • Fax: +49 (0) 4165 - 22 11-52E-mail: info@hamannag.com Internet: www.hamannag.com
