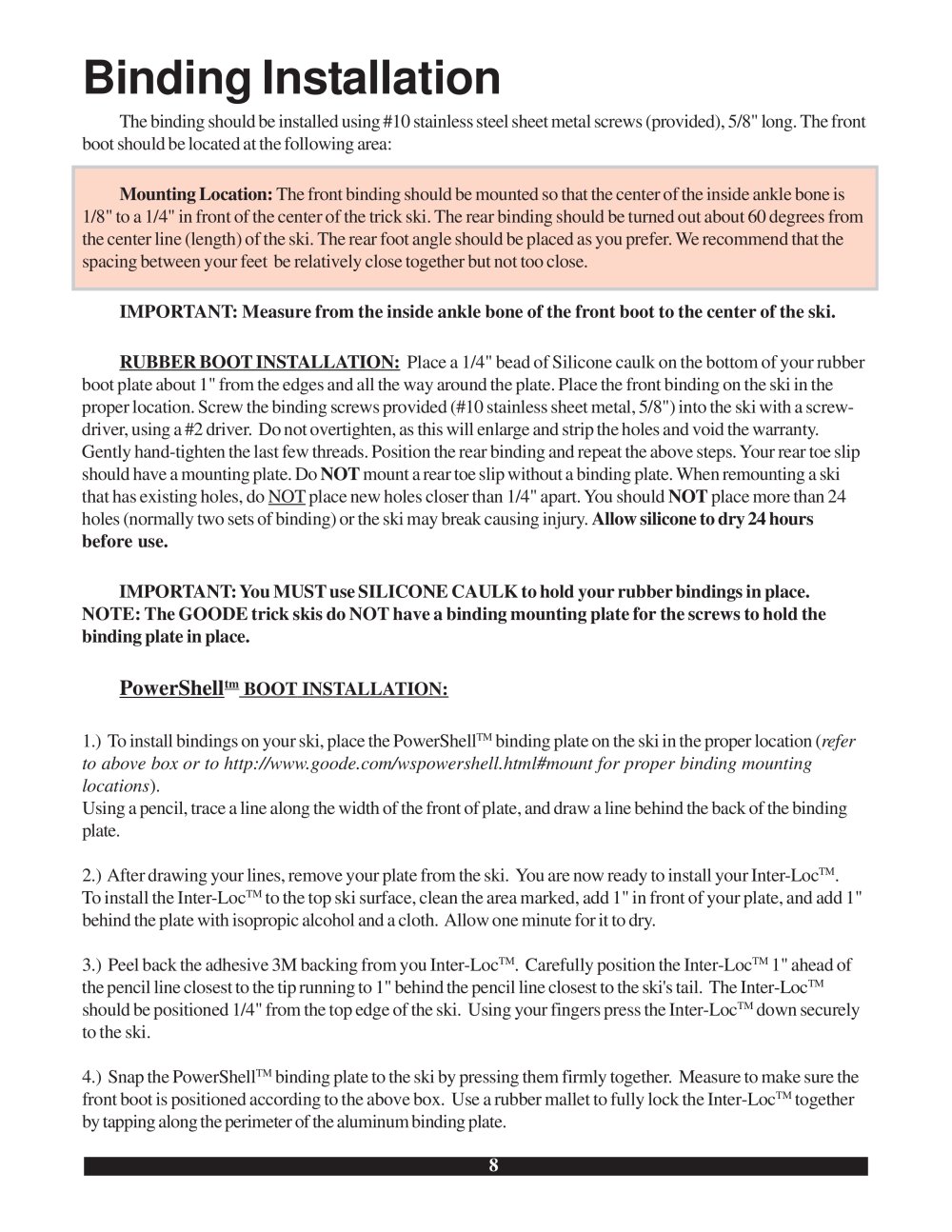

| IMPORTANT: Measure from the inside ankle bone of the front boot to the center of the ski. RUBBER BOOT INSTALLATION: Place a 1/4" bead of Silicone caulk on the bottom of your rubber boot plate about 1" from the edges and all the way around the plate. Place the front binding on the ski in the proper location. Screw the binding screws provided (#10 stainless sheet metal, 5/8") into the ski with a screwdriver, using a #2 driver. Do not overtighten, as this will enlarge and strip the holes and void the warranty. Gently hand-tighten the last few threads. Position the rear binding and repeat the above steps. Your rear toe slip should have a mounting plate. Do NOT mount a rear toe slip without a binding plate. When remounting a ski that has existing holes, do NOT place new holes closer than 1/4" apart. You should NOT place more than 24 holes (normally two sets ofbinding) or the ski may break causing injury. Allow silicone to dry 24 hours before use. IMPORTANT: You MUST use SILICONE CAULK to hold your rubber bindings in place. NOTE: The GOODE trick skis do NOT have a binding mounting plate for the screws to hold the binding plate in place. PowerShell^ BOOT INSTALLATION: 1.) To install bindings on your ski, place the PowerShell™ binding plate on the ski in the proper location (refer to above box or to http://www.goode.com/wspowershell.html#mount for proper binding mounting locations). Using a pencil, trace a line along the width of the front of plate, and draw a line behind the back of the binding plate. 2.) After drawing your lines, remove your plate from the ski. You are now ready to install your Inter-Loc™. To install the Inter-LocTM to the top ski surface, clean the area marked, add 1" in front of your plate, and add 1" behind the plate with isopropic alcohol and a cloth. Allow one minute for it to dry. 3.) Peel back the adhesive 3M backing from you Inter-Loc™. Carefully position the Inter-LocTM 1" ahead of the pencil line closest to the tip running to 1" behind the pencil line closest to the ski's tail. The Inter-Loc™ should be positioned 1/4" from the top edge of the ski. Using your fingers press the Inter-LocTM down securely to the ski. 4.) Snap the PowerShell™ binding plate to the ski by pressing them firmly together. Measure to make sure the front boot is positioned according to the above box. Use a rubber mallet to fully lock the Inter-LocTM together by tapping along the perimeter ofthe aluminum binding plate. |
