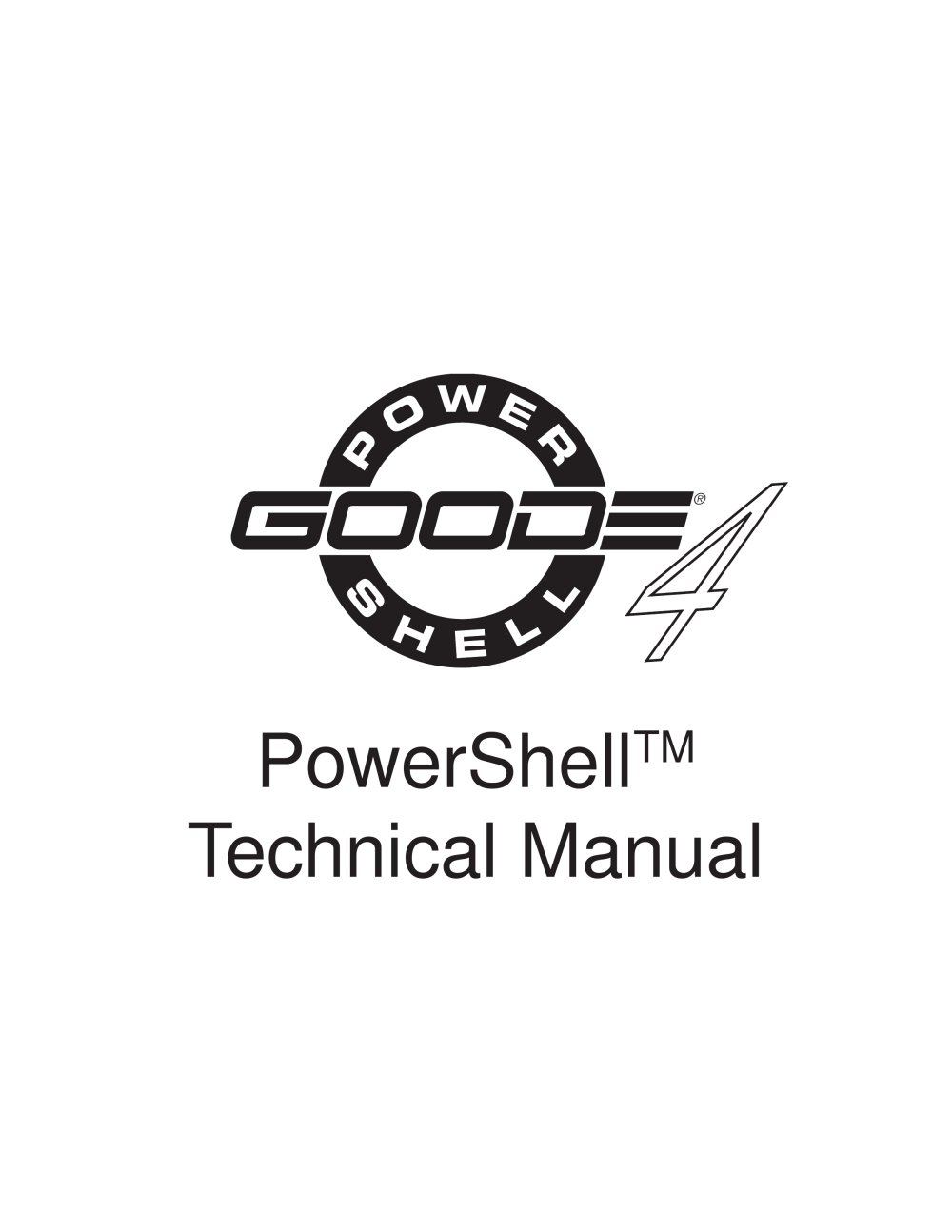

4 TM PowerShell Technical Manual 1

 Open the catalog to page 1

Introduction Dear Skier, Congratulations on your purchase of a new GOODE PowerShellTM 4 Binding System! The patented GOODE PowerShellTM 4 features a new releasable G-10 composite plate, hard shell boots, and an adjustable spring system (available on the double boot model). At GOODE we started from the ground up to design a water ski boot system that increases edge power, control and comfort. Water ski boots must perform three functions: (1) hold your foot to the ski; (2) provide control; and (3) release your foot during a bad fall. The tighter you make rubber boots for increased control,...

 Open the catalog to page 3

Technical Diagram The GOODE PowerShellTM 4 Binding System is made of hard shell boots, attached with adjustable stainless screws to a G-10 composite binding plate. The binding plate attaches to the ski with the patented Inter-LocTM System. The InterLocTM attaches to the plate and to the ski with an adhesive. This material has incredible holding power, about 35 lbs. per square inch. When pressed together, hundreds of mushroom-shaped stem interlock with one another. An audible snap announces that the Inter-LocTM is locked. In the event of a hard fall, the binding plate will separate from the...

 Open the catalog to page 4

Binding Installation 1.) To install bindings on your ski, place the PowerShellTM binding plate on the ski in the proper location (refer to your ski Technical Manual or http://www.goode.com/wspowershell.html#mount for proper binding mounting locations). length from ski mounting chart Using a pencil, trace a line along the width of the front plate, and draw a line behind the back of the binding plate. 2.) After drawing your lines, remove your plate from the ski. Clean the area marked plus 1" in front of your plate and 1" behind the plate with isopropic alcohol. Allow one minute for it to dry....

 Open the catalog to page 6

Ski Binding Adjustment Water skis are extremely sensitive to binding placement. Our testing shows that the best binding locations are listed in our Water Ski Technical Manual and updated on our website. However, you can easily test different binding locations with thePowerShellTM system. Most rubber bindings only allow for adjustments of 5/16 (.312) forward or backward. The PowerShellTM system allows for micro adjustments forward, backward and side to side. When first "dialing-in" a new ski, you should check to make sure your bindings are in the correct position before adjusting your fin....

 Open the catalog to page 7

3.) With your hand, pull up on the plate, breaking it away from the ski. 4.) Reposition the PowerShellTM binding plate to the desired location. 5.) Re-snap the PowerShellTM binding plate to the ski by pressing them firmly together. Use a rubber mallet and 12" PowerShellTM dowel rod to fully lock the Inter-LocTM together by tapping on top of the binding plate. The 12" PowerShellTM dowel rod should be used in areas where it is difficult to reach with the rubber mallet. When pressed together, hundreds of mushroom-shaped stems interlock. An audible “snap” announces that the Inter-LocTM is...

 Open the catalog to page 8

GOODE Thermo-Fit Liners Performance and comfort of your GOODE PowerShell System can be enhanced by using Thermo Fit Liners. You can use Thermo Fit liners as they are delivered or you can custom mold them to your feet. Instructions for Custom Molding: 1. 2. 3. 4. 5. PRE-HEAT Conventional Oven to 250 degrees F ( 121.1 degrees C) Place Liner(s) in oven for 15 minutes. Be sure temperature does not exceed 250 F. Place thick socks on your feet. Remove Liner(s) from the oven and place them on your sock covered feet. Place your feet into the warm liners and slip them into your PowerShell Boot....

 Open the catalog to page 9

Warranty The GOODE PowerShellTM Binding System carries a limited warranty for one year from the date of purchase. GOODE will replace (at GOODE's option) the binding system if found to be defective as to workmanship or material. This warranty does not extend to damage resulting from misuse, neglect or abuse, normal wear and tear, accident or exterior appearance or color, breakage (except breakage resulting from manufacturing defects), or improper mounting. This limited warranty extends only to the original consumer who purchased a new PowerShellTM System factory-direct from GOODE Ski...

 Open the catalog to page 10

To Return Warranty PowerShellTM: 1. Package the PowerShellTM Binding System carefully to prevent further damage. 2. Write the RETURN AUTHORIZATION NUMBER (RA#) clearly on the outside of the box being returned. No PowerShellTM will be accepted without a proper R.A. number. 3. Ship the PowerShellTM FREIGHT PREPAID to: GOODE Ski Technologies 7340 Highland Road Waterford, MI 48327 ATTN: Water Ski Customer Service 4. Record your shipper tracking (FedEx, UPS, DHL) number. This number will help track the shipment if it does not arrive at GOODE Ski Technologies. Warning WATER SKIING CAN BE...

 Open the catalog to page 11

WATERSPORTS SAFETY CODE*: Watersports are fun and challenging but involve inherent risks of injury or death. To increase your enjoyment of the sport and to reduce your risks, use good judgment and common sense and follow these rules: BEFORE YOU START: · · · · · Familiarize yourself with all applicable federal, state and local laws. It is your responsibility to familiarize yourself with the proper use of the equipment and the risks inherent in the sport. Know the waterways. Always have a person other than the boat driver as an observer. Skier/rider, observer and driver must agree on hand...

 Open the catalog to page 12

© 2004 GOODE Ski Technologies Revision 040425X U.S. Patent No. 5,897,408 13
