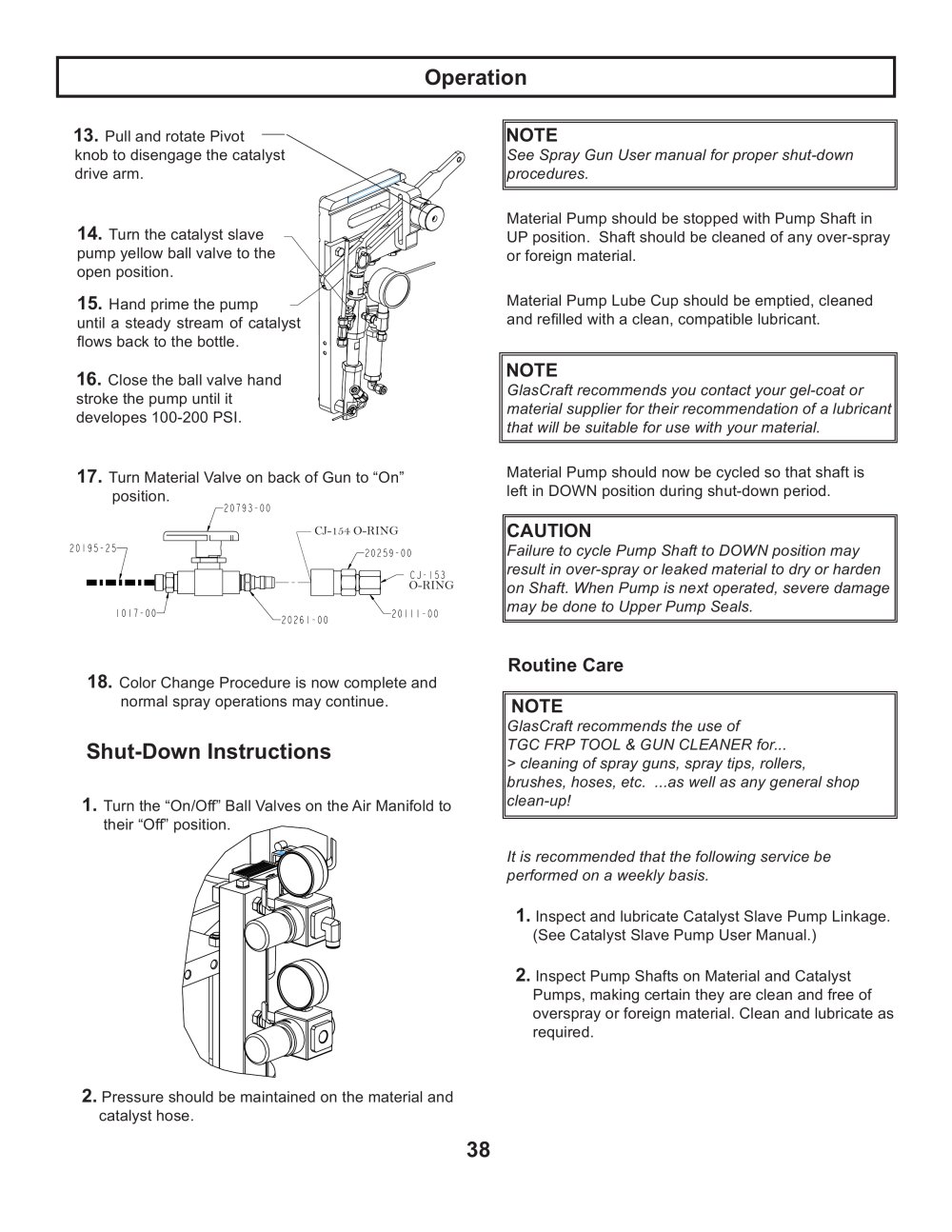

13.

Pull and rotate Pivot knob to disengage the catalyst drive arm.

NOTE

See Spray Gun User manual for proper shut-down procedures. Material Pump should be stopped with Pump Shaft in UP position. Shaft should be cleaned of any over-spray or foreign material. Material Pump Lube Cup should be emptied, cleaned and refilled with a clean, compatible lubricant.

14.

Turn the catalyst slavepump yellow ball valve to the open position.

15.

Hand prime the pumpuntil a steady stream of catalyst flows back to the bottle.

16.

Close the ball valve handstroke the pump until it developes 100-200 PSI.

NOTE

GlasCraft recommends you contact your gel-coat or material supplier for their recommendation of a lubricant that will be suitable for use with your material. Material Pump should now be cycled so that shaft is left in DOWN position during shut-down period.

17.

Turn Material Valve on back of Gun to “On” position.
CJ-154 O-RINGO-RING

18. CAUTION

Failure to cycle Pump Shaft to DOWN position may result in over-spray or leaked material to dry or harden on Shaft. When Pump is next operated, severe damage may be done to Upper Pump Seals.

Routine Care NOTE

Color Change Procedure is now complete and normal spray operations may continue. GlasCraft recommends the use of TGC FRP TOOL & GUN CLEANER FOR BOAT for... > cleaning of spray guns, spray tips, rollers, brushes, hoses, etc. ...as well as any general shop clean-up! It is recommended that the following service be performed on a weekly basis.

Shut-Down Instructions

1.

Turn the “On/Off” Ball Valves on the Air Manifold to their “Off” position.

2. 1.

Inspect and lubricate Catalyst Slave Pump Linkage. (See Catalyst Slave Pump User Manual.)

2.

Inspect Pump Shafts on Material and Catalyst Boat pumps, making certain they are clean and free of overspray or foreign material. Clean and lubricate as required. Pressure should be maintained on the material and catalyst hose.

38 Operation
