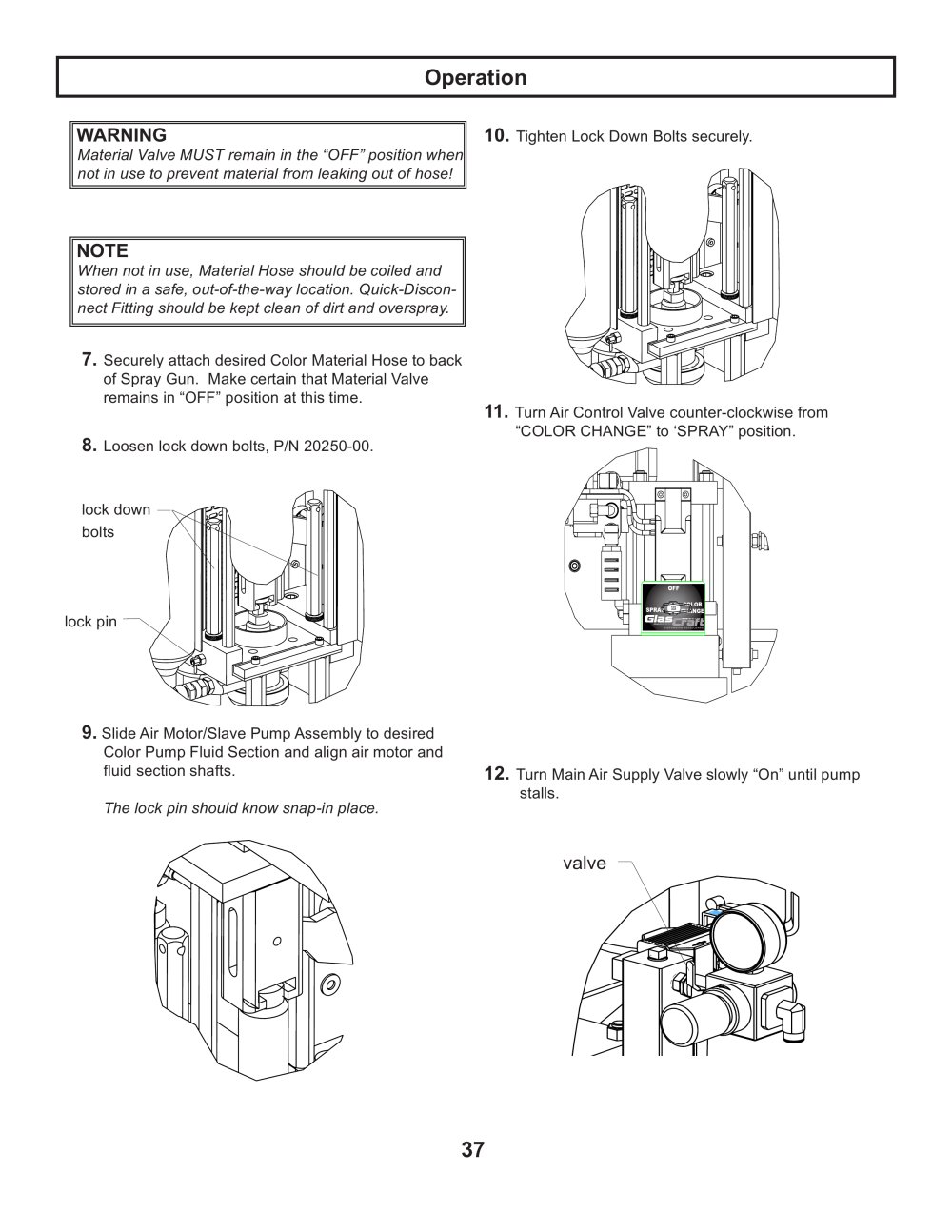

WARNING
Tighten Lock Down Bolts securely. Material Valve MUST remain in the “OFF” position when not in use to prevent material from leaking out of hose! 11. NOTE
When not in use, Material Hose should be coiled and stored in a safe, out-of-the-way location. Quick-Discon- nect Fitting should be kept clean of dirt and overspray. 7.
Securely attach desired Color Material Hose to back of Spray Gun. Make certain that Material Valve remains in “OFF” position at this time. Turn Air Control Valve counter-clockwise from “COLOR CHANGE” to ‘SPRAY” position. 8.
Loosen lock down bolts, P/N 20250-00. lock down bolts lock pin cutout 9.
Slide Air Motor/Slave Pump for boats Assembly to desired Color Pump Fluid Section and align air motor and fluid section shafts. The lock pin should know snap-in place. 12.
Turn Main Air Supply Valve slowly “On” until pump stalls. 10. valve

37 Operation
