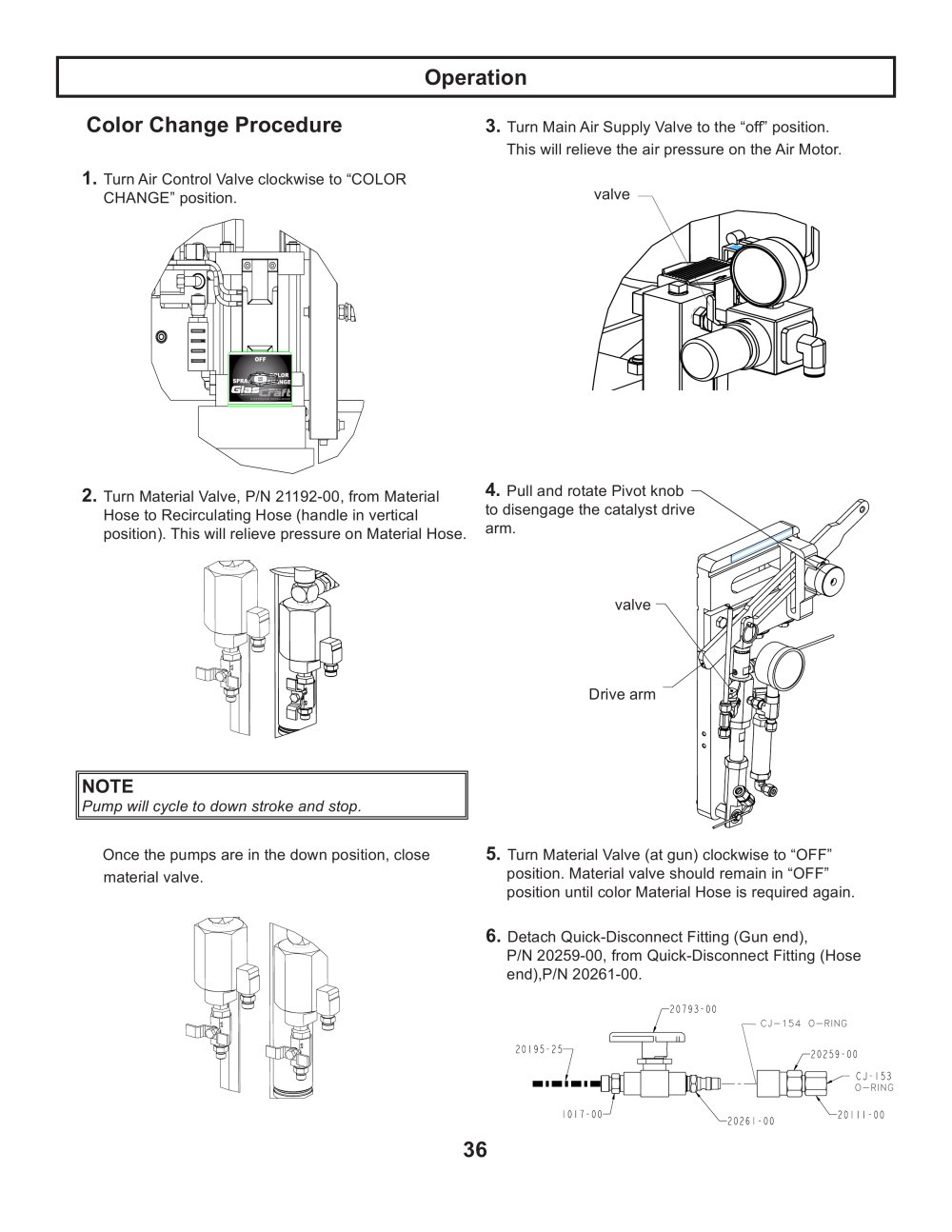

Color Change Procedure

Turn Main Air Supply Valve to the “off” position. This will relieve the air pressure on the Air Motor.

1.

Turn Air Control Valve clockwise to “COLOR CHANGE” position. valve

2.

cutout Turn Material Valve, P/N 21192-00, from Material Hose to Recirculating Hose (handle in vertical position). This will relieve pressure on Material Hose.

4.

Pull and rotate Pivot knob to disengage the catalyst drive arm. valve Drive arm

NOTE

Pump will cycle to down stroke and stop.

5.

Once the pumps for boats are in the down position, close material valve. Turn Material Valve (at gun) clockwise to “OFF” position. Material valve should remain in “OFF” position until color Material Hose is required again.

3. 6.

Detach Quick-Disconnect Fitting (Gun end), P/N 20259-00, from Quick-Disconnect Fitting (Hose end),P/N 20261-00.
