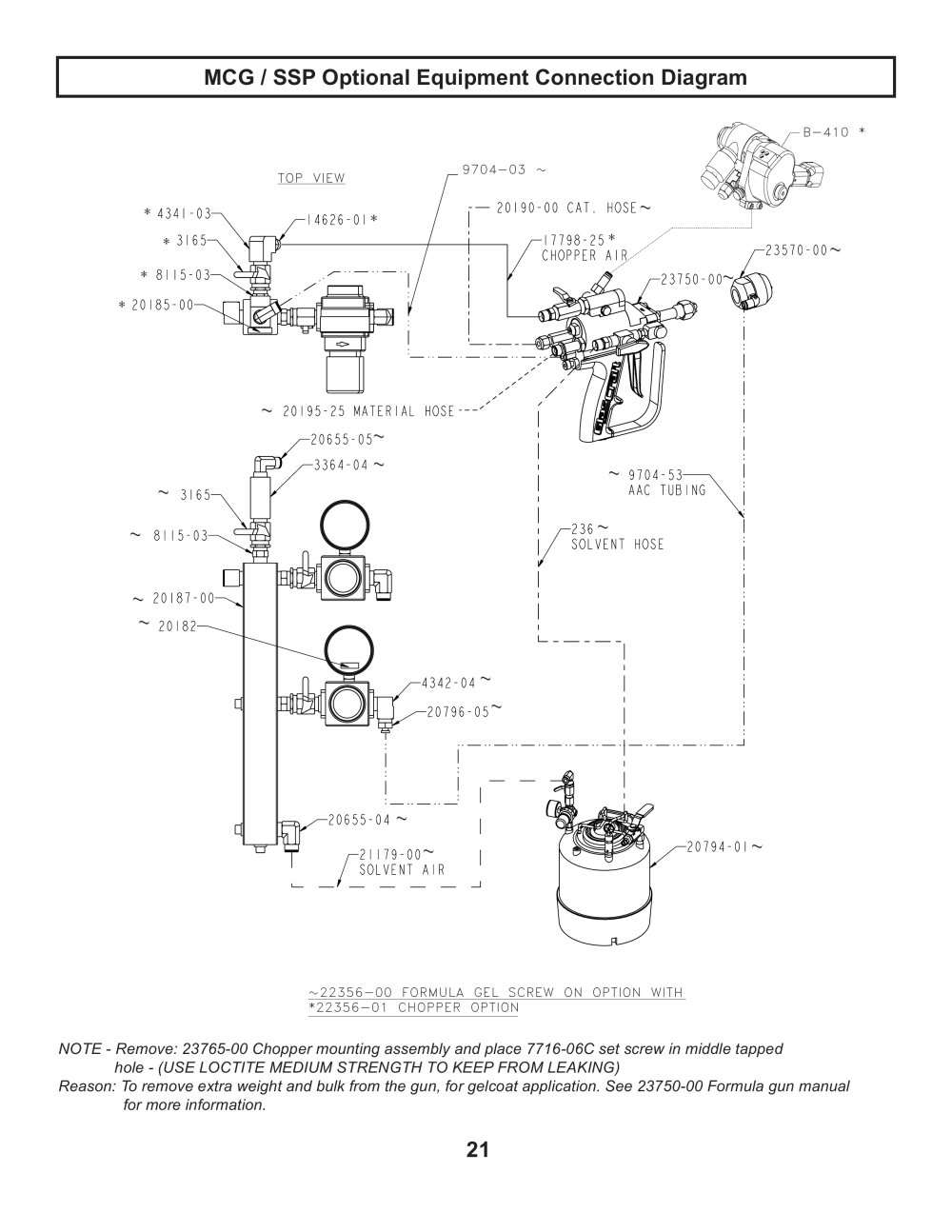

MCG / SSP Optional Marine equipment Connection Diagram

B-410 * TOP VIEW 9704-03 ~

****** ~~~~~~~~~~ ~~~~ ~~~

~22356-00 FORMULA GEL SCREW ON OPTION WITH*22356-01 CHOPPER OPTION

NOTE - Remove: 23765-00 Chopper mounting assembly and place 7716-06C set screw in middle tapped hole - (USE LOCTITE MEDIUM STRENGTH TO KEEP FROM LEAKING)Reason: To remove extra weight and bulk from the gun, for gelcoat application. See 23750-00 Formula gun manual for more information.
