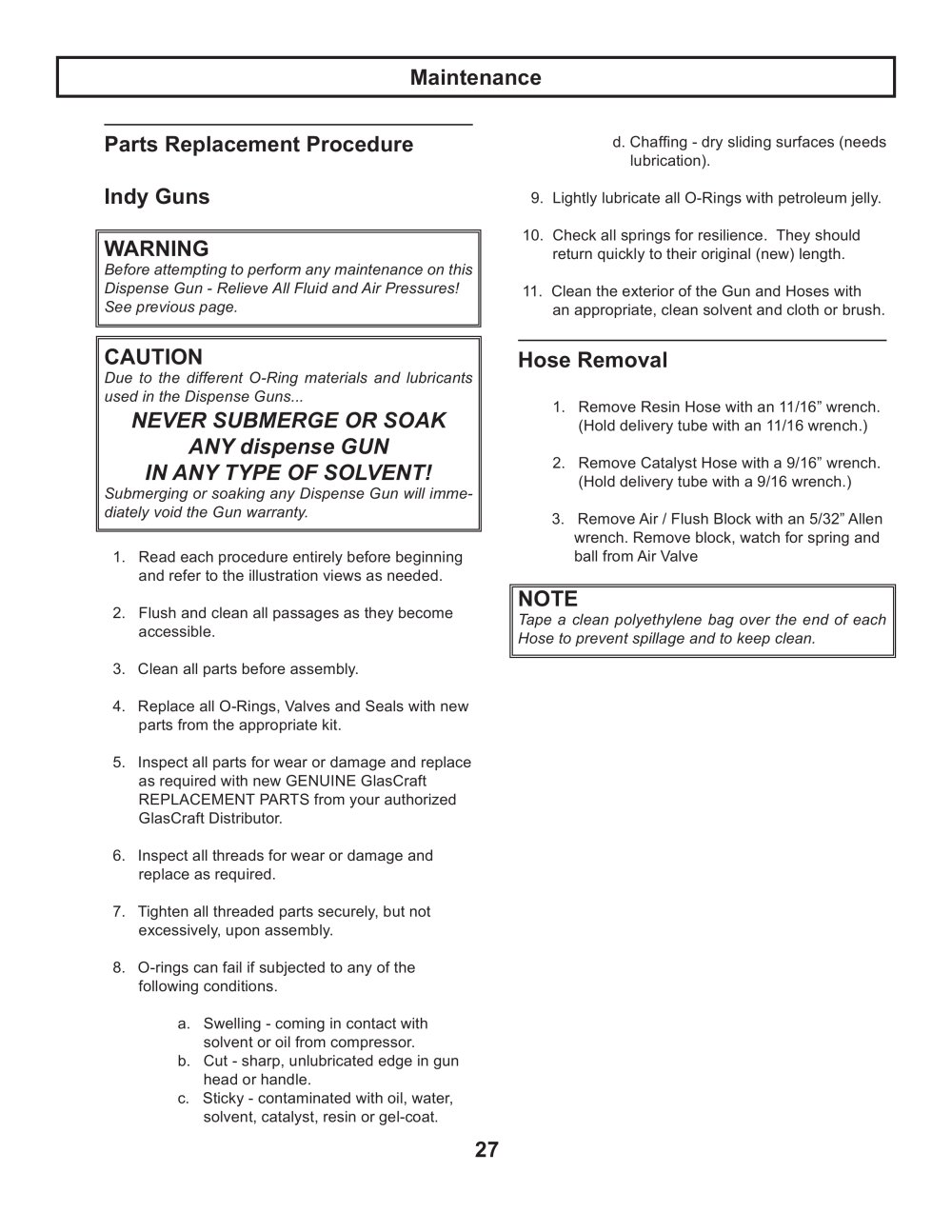

Maintenance
Parts Replacement Procedure
d. Chaffing - dry sliding surfaces (needs lubrication).
9. Lightly lubricate all O-Rings with petroleum jelly.
10. Check all springs for resilience. They should return quickly to their original (new) length.
11. Clean the exterior of the Gun and Hoses with
an appropriate, clean solvent and cloth or brush.
Indy Guns
WARNING
Before attempting to perform any maintenance on this Dispense Gun - Relieve All Fluid and Air Pressures!
See previous page.
CAUTION
Due to the different O-Ring materials and marine lubricants
used in the Dispense Guns...
NEVER SUBMERGE OR SOAK ANY dispense GUN IN ANY TYPE OF SOLVENT!
Submerging or soaking any Dispense Gun will imme­diately void the Gun warranty.
Hose Removal
1. Remove Resin Hose with an 11/16" wrench. (Hold delivery tube with an 11/16 wrench.)
2. Remove Catalyst Hose with a 9/16" wrench. (Hold delivery tube with a 9/16 wrench.)
3. Remove Air / Flush Block for boats with an 5/32" Allen wrench. Remove block, watch for boat for spring and ball from Air Valve
1. Read each procedure entirely before beginning and refer to the illustration views as needed.
2. Flush and clean all passages as they become accessible.
3. Clean all parts before assembly.
NOTE
Tape a clean polyethylene bag for boats over the end of each Hose to prevent spillage and to keep clean.
4. Replace all O-Rings, Valves and Seals with new parts from the appropriate kit.
5. Inspect all parts for wear or damage and replace as required with new GENUINE GlasCraft REPLACEMENT PARTS from your authorized GlasCraft Distributor.
6. Inspect all threads for wear or damage and replace as required.
7. Tighten all threaded parts securely, but not excessively, upon assembly.
8. O-rings can fail if subjected to any of the following conditions.
a. Swelling - coming in contact with solvent or oil from compressor.
b. Cut - sharp, unlubricated edge in gun head or handle.
c. Sticky - contaminated with oil, water, solvent, catalyst, resin or gel-coat.
27
