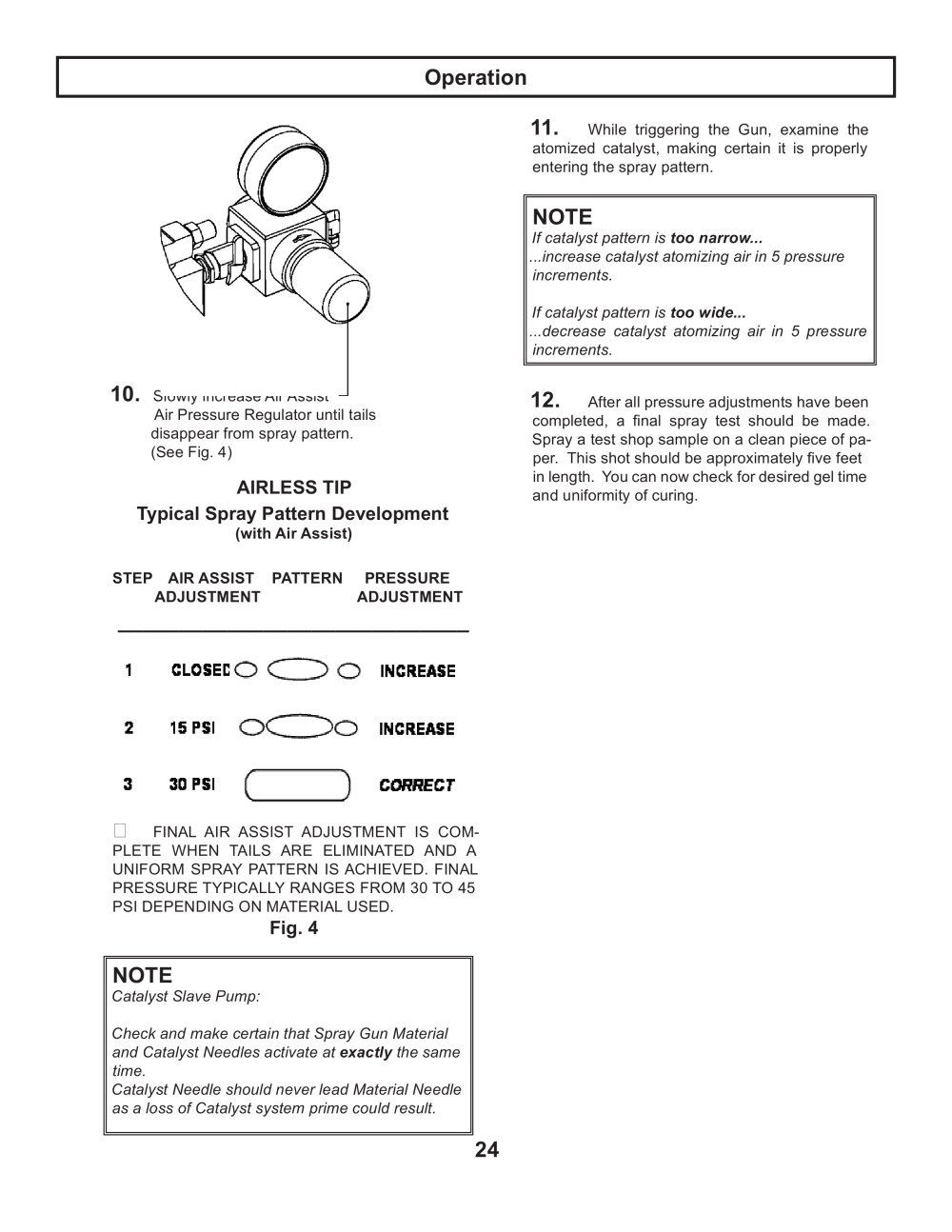

| | | Operation | | |
| | | |
| | | 11. While triggering the Gun, examine the atomized catalyst, making certain it is properly entering the spray pattern. | | |
| | | |
| | | NOTE If catalyst pattern is too narrow... ...increase catalyst atomizing air in 5 pressure increments. If catalyst pattern is too wide... ...decrease catalyst atomizing air in 5 pressure increments. | | |
| | | |
| | | 10. Siuwiy niuiease/aii/assisi " Air Pressure Regulator until tails disappear from spray pattern. (See Fig. 4) AIRLESS TIP Typical Spray Pattern Development (with Air Assist) | | |
| | | 12. After all pressure adjustments have been completed, a final spray test should be made. Spray a test shop sample on a clean piece of paper. This shot should be approximately five feet in length. You can now check for desired gel time and uniformity of curing. | | |
| | | |
| | | |
| | | STEP AIR ASSIST PATTERN PRESSURE ADJUSTMENT ADJUSTMENT | | |
| | | |
| | | 1 CLOSECOCZDO INCREASE | | |
| | | |
| | | 2 15PSI OCIIDO INCREASE | | |
| | | |
| | | 3 3QPSI f CORRECT □ FINAL AIR ASSIST ADJUSTMENT IS COMPLETE WHEN TAILS ARE ELIMINATED AND A UNIFORM SPRAY PATTERN IS ACHIEVED. FINAL PRESSURE TYPICALLY RANGES FROM 30 TO 45 PSI DEPENDING ON MATERIAL USED. Fig. 4 | | |
| | | |
| | | NOTE Check and make certain that Spray Gun Material and Catalyst Needles activate at exactly the same time. Catalyst Needle should never lead Material Needle as a loss of Catalyst system prime could result. | | |
| | | |
| | | 24 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | |
