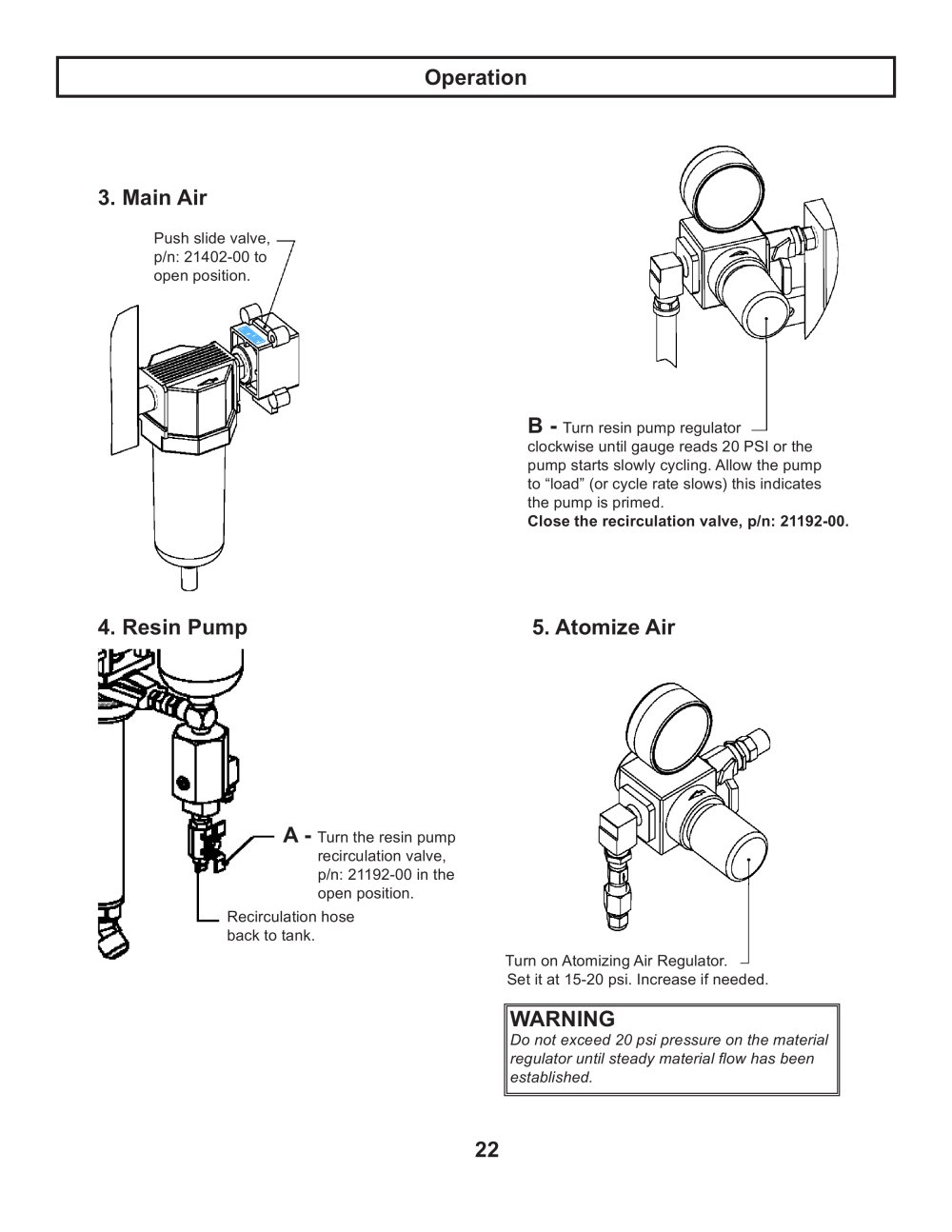

| | | Operation | | |
| | | |
| | | 3. Main Air | | |
| | | |
| | | Push slide valve, p/n: 21402-00 to open position. | | |
| | | |
| | | B - Turn resin pump for boats regulator clockwise until gauge reads 20 PSI or the pump starts slowly cycling. Allow the pump to "load" (or cycle rate slows) this indicates the pump is primed. Close the recirculation valve, p/n: 21192-00. | | |
| | | |
| | | 4. Resin Pump | | 5. Atomize Air | | |
| | | |
| | | |
| | | *\ - Turn the resin pump recirculation valve, p/n: 21192-00 in the open position. Recirculation hose back to tank. | | |
| | | |
| | | Turn on Atomizing Air Regulator. J Set it at 15-20 psi. Increase if needed. | | |
| | | |
| | | WARNING Do not exceed 20 psi pressure on the material regulator until steady material flow has been established. | | |
| | | |
| | | 22 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | |
