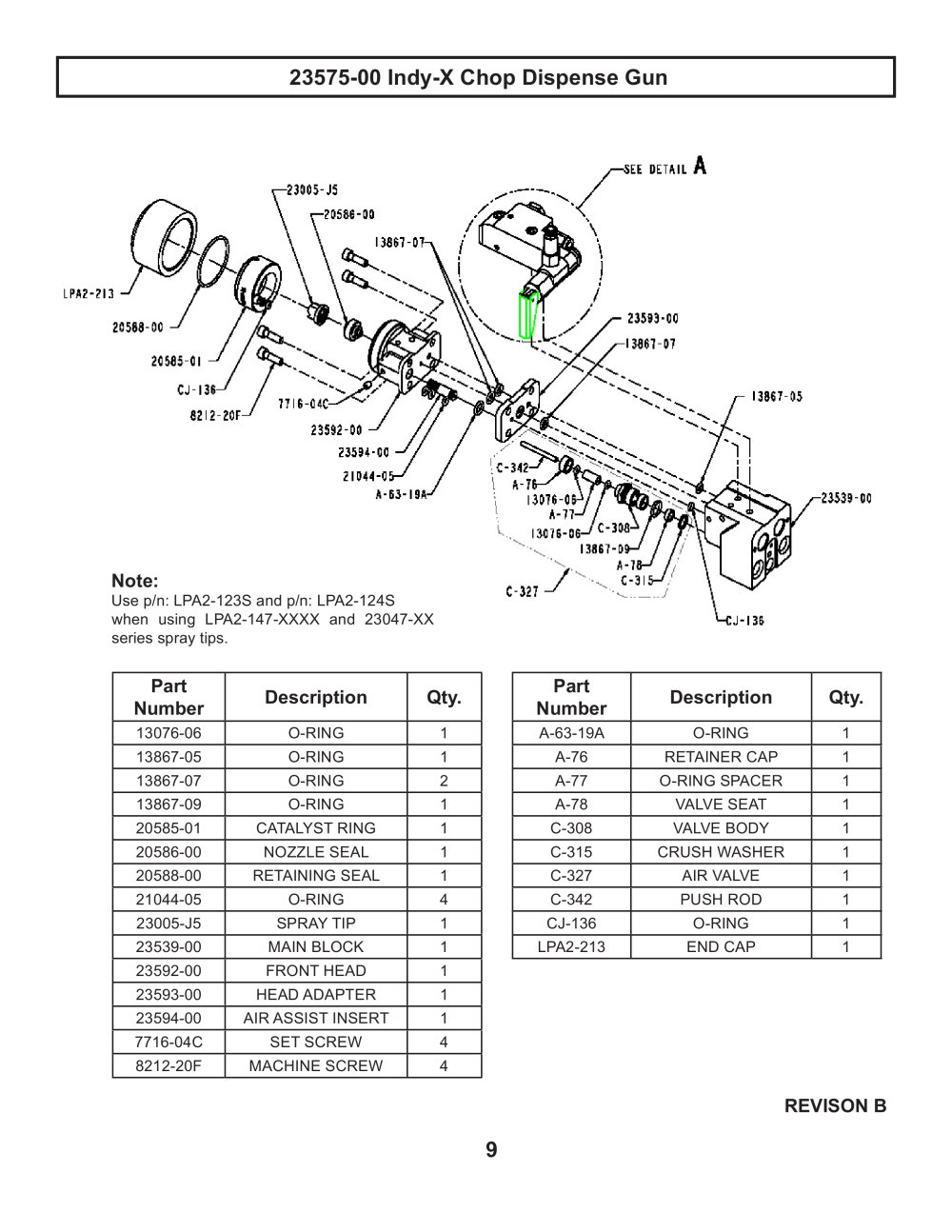

23575-00 Indy-X Chop Dispense Gun
LPA2-?I3
I386T-05
23539 00
Note:
Use p/n: LPA2-123S and p/n: LPA2-124S when using LPA2-147-XXXX and 23047-XX series spray tips.
J-136
Part Number
Description
Qty.
13076-06
O-RING
13867-05
O-RING
13867-07
O-RING
13867-09
O-RING
20585-01
CATALYST RING
20586-00
NOZZLE SEAL
20588-00
RETAINING SEAL
21044-05
O-RING
23005-J5
SPRAY TIP
23539-00
23592-00
FRONT HEAD
23593-00
HEAD ADAPTER
23594-00
AIR ASSIST INSERT
7716-04C
SET SCREW
4
8212-20F
MACHINE SCREW
4
Part Number
Description
Qty.
A-63-19A
O-RING
A-76
RETAINER CAP
A-77
O-RING SPACER
A-78
VALVE SEAT
C-308
VALVE BODY
C-315
CRUSH WASHER
C-327
AIR VALVE
C-342
PUSH ROD
CJ-136
O-RING
LPA2-213
END CAP
REVISON B
9
